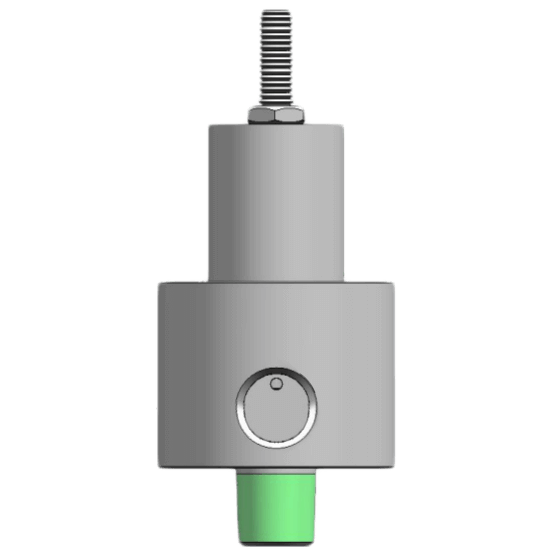

PSV Pressure Sensing Valve

Brand: Bifold Group

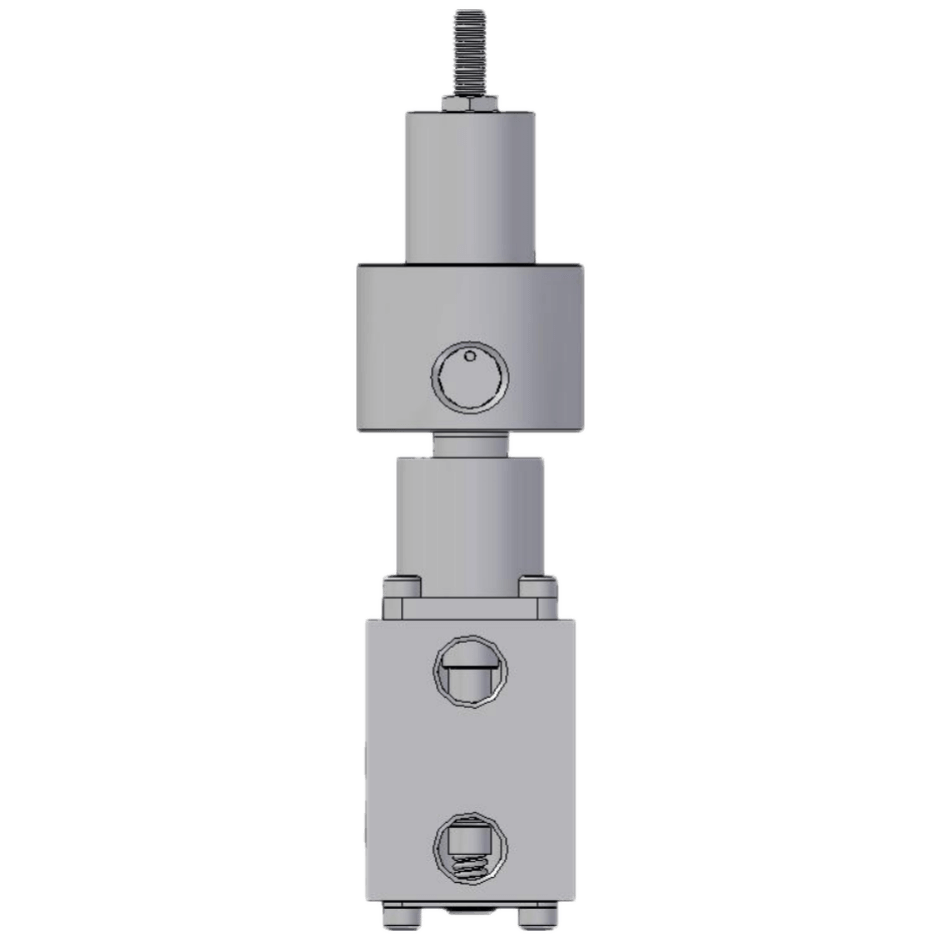

The pressure sensing valve is designed for fitting to the pilot port of a valve to create an adjustable pressure sensing function. It is available 1/4" NPT male or can be purchased as part of our junior range as an option on the basic pilot unit which is detailed below. The pressure sensing valve is available for arctic service operation. As a complete unit we also have a pressure sensing Domino range (P5).
Features
  • 316L Stainless Steel
  • Arctic Service Available
  • Adjustable range 2 to 8 bar
show more
The pressure sensing valve is designed for fitting to the pilot port of a valve to create an adjustable pressure sensing function. It is available 1/4" NPT male or can be purchased as part of our junior range as an option on the basic pilot unit which is detailed below. The pressure sensing valve is available for arctic service operation. As a complete unit we also have a pressure sensing Domino range (P5).
Features
  • 316L Stainless Steel
  • Arctic Service Available
  • Adjustable range 2 to 8 bar

Specifications

Brand

Ambient Temperature Range

  • -50° to 180° C (-58° to 356° F)

BSP Connection

  • 1/4" BSPP Male

Diaphragm Material

  • 316L Stainless Steel

Differential Pressure

  • psig: 5.8 (kPa: 40, bar: 0.4)

Enclosure, Body Material

  • 316L Stainless Steel

Media

  • Operating: Air
  • Operating: Sweet & Sour Gas

NPT Connection

  • Outlet Port: 1/4" NPT Male
  • Pilot Port: 1/4" NPT Female

Operating Pressure

  • psig: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12)

Pressure Range

  • psig: 29 to 116 (kPa: 200 to 800, bar: 2 to 8)

Seat / Seal Material

  • Seal: Elastomer
  • Seal: Viton

Spring Material

  • 316 S42 Stainless Steel
