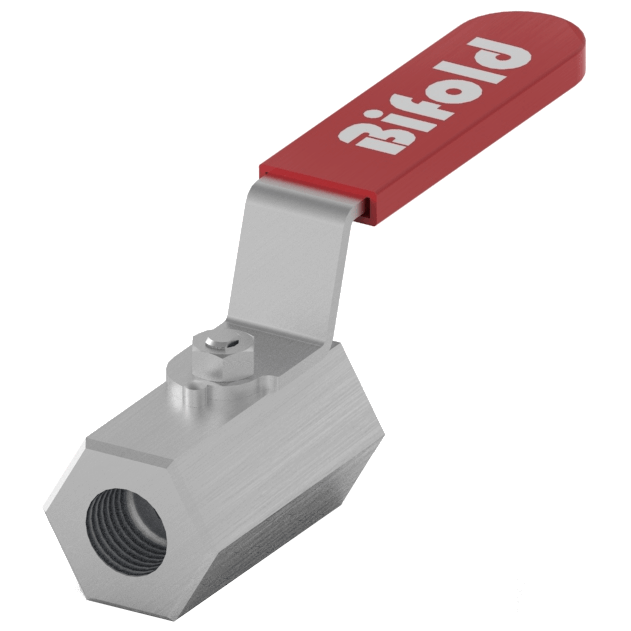

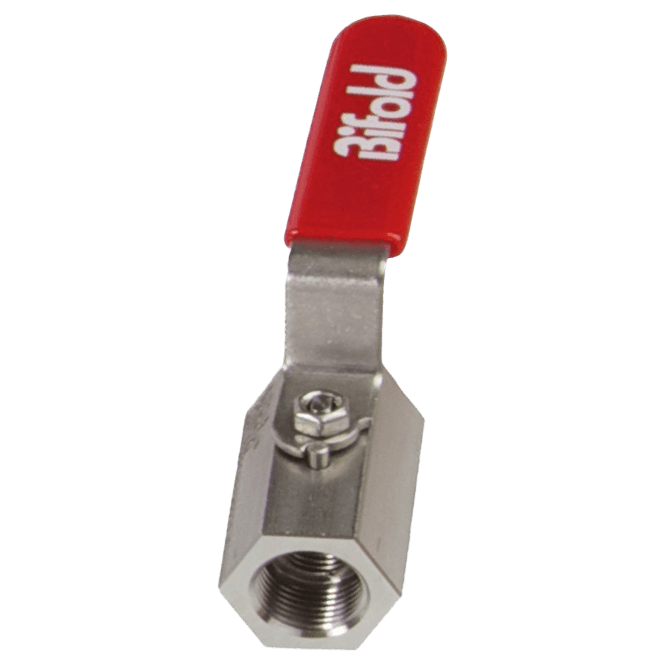

BV01 Single Isolation Ball Valve (Hex Body)

Brand: Bifold Group
A Single Isolate Ball Valve with pressures rated up to 10,000 psi / 690 bar. The single isolating ball valve is designed to give bubble tight shut off through 90° operation across the full operating temperature range of the valve. Totally enclosed soft seats offer both positive sealing and low operating torques.
Features
  • Two piece construction reducing leak paths
  • Anti-blow out stem internally loaded
  • Bi-directional
  • Precision machined stainless steel ball
  • Lever type handle as standard
  • Compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • RTFE stem seals and o-ring body seals
  • Thread milled connections for improved sealing
  • In complaince with NACE MR-01-75 / ISO 15156 as standard
  • Bubble tight shut-off
  • Low operating torque
  • Pressure energised stem sealing
show more
Images are representations only.
A Single Isolate Ball Valve with pressures rated up to 10,000 psi / 690 bar. The single isolating ball valve is designed to give bubble tight shut off through 90° operation across the full operating temperature range of the valve. Totally enclosed soft seats offer both positive sealing and low operating torques.
Features
  • Two piece construction reducing leak paths
  • Anti-blow out stem internally loaded
  • Bi-directional
  • Precision machined stainless steel ball
  • Lever type handle as standard
  • Compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • RTFE stem seals and o-ring body seals
  • Thread milled connections for improved sealing
  • In complaince with NACE MR-01-75 / ISO 15156 as standard
  • Bubble tight shut-off
  • Low operating torque
  • Pressure energised stem sealing

BV01 Hex Body

Nominal Pipe Size

Connection Type

Thread

Threaded Inlet / Outlet

Material

Bore Size

Seat Material

Seal Material

Pressure Rating

Testing Options

  • view details

Specifications

Brand

Approvals & Certifications

  • ISO 15156

Approvals & Certifications

  • Pressure Test in Accordance with AP1 598 & BS EN 12266-1

Ball Material

  • Precision Machined Stainless Steel

Bore Size

  • 0.19" (5 mm)

BSP Connection

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BSPP Male
  • 1/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male

BSP Inlet

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BSPP Male
  • 1/4" BSPT Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male

BSP Outlet

  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 1/4" BPST Male
  • 1/4" BSPP Male
  • 3/8" BSPP Female
  • 3/8" BSPT Female
  • 3/8" BSPP Male
  • 3/8" BSPT Male

Cone & Thread Connection

  • 1/4" Female Medium Pressure
  • 3/8" Female Medium Pressure

Enclosure, Body Material

  • Carbon Steel
  • Duplex
  • Stainless Steel
  • Super Duplex

Media

  • Gas

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

NPT Inlet

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

NPT Outlet

  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

Operating Temperature

  • -20° to 180° C (-4° to 356° F) - Standard
  • -45° to 225° C (-49° to 437° F) - Alternative Temperature Range

O-Ring Material

  • O-Ring Body Seal: RTFE

Pipe Size

  • 1/4"
  • 3/8"

Pressure Range

  • psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)

Rotation

  • Bi-Directional
  • Bubble Tight Shut Off through 90° Operation

SAE Connection

  • 1/4" SAE Female Straight Thread
  • 1/4" SAE Male Straight Thread
  • 3/8" SAE Female Straight Thread
  • 3/8" SAE Male Straight Thread

SAE Inlet

  • 1/4" SAE Female
  • 1/4" SAE Male
  • 3/8" SAE Female
  • 3/8" SAE Male

SAE Outlet

  • 1/4" SAE Female
  • 1/4" SAE Male
  • 3/8" SAE Female
  • 3/8" SAE Male

Seat/Seal Material

  • PPS
  • Seal Stem & Body: RTFE Elastomer (V91A, E985)
  • Seal Stem & Body: Viton Elastomer
  • Seat: Carbon Filled PEEK
  • Seat: Glass-Filled PTFE
  • Seat: PEEK
  • Seat: PTFE

Supply Pressure - Maximum

  • psi: 10,000 (kPa: 68,95, bar: 689.5) - Cold Working Pressure

Valve Type

  • Manual

Welded Connection

  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
