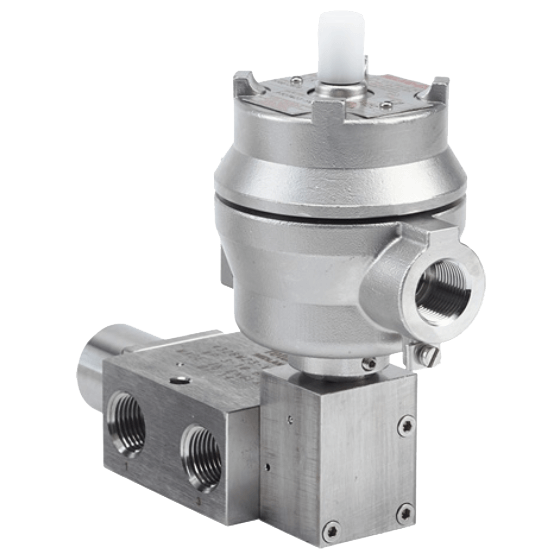

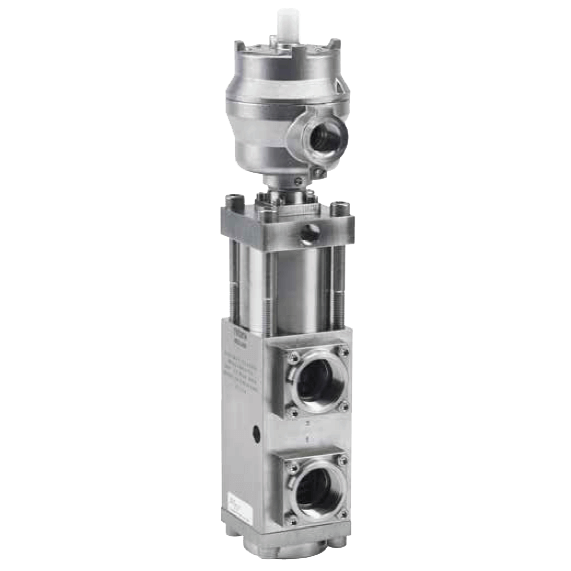

1750 Series Pilot Solenoid Operated

Brand: Midland-ACS
A range of 3/2 pilot Solenoid Operated Poppet Valves in Stainless Steel or Stainless Steel 316L for use on gases.
Features
  • Specifically Designed for Severe Environments
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
  • Large Flow Paths (Up to 110 Cv)
show more
Images are representations only.
A range of 3/2 pilot Solenoid Operated Poppet Valves in Stainless Steel or Stainless Steel 316L for use on gases.
Features
  • Specifically Designed for Severe Environments
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
  • Large Flow Paths (Up to 110 Cv)

1750 Series Pilot Solenoid

Size

Poppet Material

Solenoid

Voltage

Temperature Range

Seal Material

Specifications

Brand

Ambient Temperature Range

  • -20° to 180° C (-4 to 356° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • EAC
  • IEC Ex
  • UL

Cable Entry

  • 1/2" NPT or 24" Flying Lead
  • DIN Plug
  • M20 x 1.5

Enclosure, Body Material

  • 316 Stainless Steel (Aluminum Epoxy Coated)
  • 316L Stainless Steel
  • Glass Reinforced Polyamide (Stainless Steel Conduit Hub)
  • Moulded Plastic
  • Stainless Steel, Coil Potted

Environmental Protection

  • IP55
  • IP65
  • IP66
  • IP67
  • NEMA 4
  • NEMA 4X
  • NEMA 6
  • NEMA 7
  • NEMA 9

Flow Capacity

  • 1" to 13 Cv, 454 SCFM (771.96 m³/hour)
  • 1/2" - 3.5 Cv, 142 scfm (241.26 m³/hour)
  • 1/4"- 1.2 Cv, 43 scfm (72.96 m³/hour)
  • 1-1/2" - 22 Cv, 791 scfm (1342.74 m³/hour)
  • 1-1/4"-18 Cv, 624 scfm (1059 m³/hour)
  • 2" - 50 Cv, 1798 scfm (3052.14 m³/hour)
  • 3" - 110 Cv, 3955 scfm (237.3 m³/hour)
  • 3/4" - 284 scfm (482.46 m³/hour)
  • 3/4" - 8 Cv, 284 scfm (482.46 m³/hour)
  • 3/8" - 1.8 Cv, 64 scfm (108.6 m³/hour)

Media

  • Air
  • Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Low Pressure Hydraulic, Mineral Oil or Water
  • Sour Natural Gas
  • Sweet Natural Gas

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1/8" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Pilot Pressure

  • psi: 58.02 to 101.5 (kPa: 400 to 700, bar: 4 to 7)

Power Requirement

  • 110 Vac, 50/60 Hz
  • 12 Vdc
  • 220 Vac 50 Hz
  • 24 Vdc
  • 28 Vdc
  • 48 Vdc

Pressure Range

  • bar: 3 to 12
  • kPa: 300 to 1,200
  • psi: 43.5 to 174

Seat/Seal Material

  • 1/4" to 1/2" Fluorelastomer
  • 3/4" to 3" Nitrile

Spring Material

  • 316 Stainless Steel

Supply Pressure - Maximum

  • bar: 12
  • kPa: 1,200
  • psi: 174

Trim Material

  • 316L Stainless Steel
