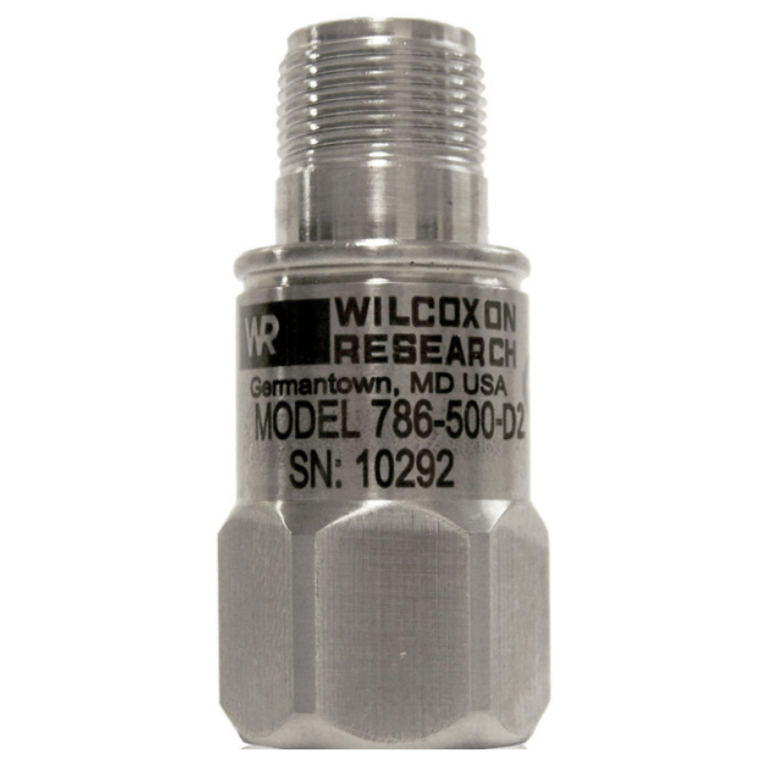

Model 786-500-D2 Class I Division 2 Certified Low-Frequency Accelerometer

Brand: Wilcoxon Sensing Technologies
Wilcoxon’s top-exit broadband sensor is certified for usage in hazardous areas. The high-sensitivity accelerometer offers an interior sensing element capable of producing 500 mV/g outputting clear signals at low vibration levels. The low-end frequency response makes it ideal for slow-speed applications such as wind turbine generators and cooling towers. A high top-end frequency response offers clear signals for early bearing fault detection, gearbox wear, and other high-speed applications.

The 786-500-D2 is classifed for usage in Class I Division 2/Zone 2 locations where ignitable gases, vapors or liquids are handled, processed or used but are not usually present during normal operation and can only escape through accidental rupture, breakdown or leaks.
Features
  • High sensitivity
  • Extended low frequency response
  • Clear signals at low vibration levels
  • Class I, Div 2/Zone 2 certified, non-incendive
  • Hermetically sealed
  • ESD protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
Wilcoxon’s top-exit broadband sensor is certified for usage in hazardous areas. The high-sensitivity accelerometer offers an interior sensing element capable of producing 500 mV/g outputting clear signals at low vibration levels. The low-end frequency response makes it ideal for slow-speed applications such as wind turbine generators and cooling towers. A high top-end frequency response offers clear signals for early bearing fault detection, gearbox wear, and other high-speed applications.

The 786-500-D2 is classifed for usage in Class I Division 2/Zone 2 locations where ignitable gases, vapors or liquids are handled, processed or used but are not usually present during normal operation and can only escape through accidental rupture, breakdown or leaks.
Features
  • High sensitivity
  • Extended low frequency response
  • Clear signals at low vibration levels
  • Class I, Div 2/Zone 2 certified, non-incendive
  • Hermetically sealed
  • ESD protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility

Specifications

Approvals & Certifications

  • ISO 9001

Approvals & Certifications

  • ATEX Ex NA II T4 Gc
  • CE
  • CSA (C,US) Class I, Division 2, Grade A, B, C, D

Electrical Connectors

  • Cable (J10 / J9T2A)
  • Output: MIL Connector (MIL-C-5015 Style, 2-Pin)

Element

  • Sensing Element Design: PZT, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Frequency

  • Frequency Response (± 10%): 0.5 to 9,000 Hz
  • Frequency Response (± 3 dB): 0.2 to 10,000 Hz
  • Frequency Response (± 5%): 0.7 to 5,000 Hz
  • Resonance Frequency: 30 kHz

Mounting

  • 1/4-28 UNF Tapped Hole

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 250 µg
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 2.5 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 100, 1,000 Hz): 1.5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range, Vdc > 22 V: 10 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 5%, 25° C (77° F): 500 mV/g
  • Transverse Sensitivity: Maximum 5% of axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
