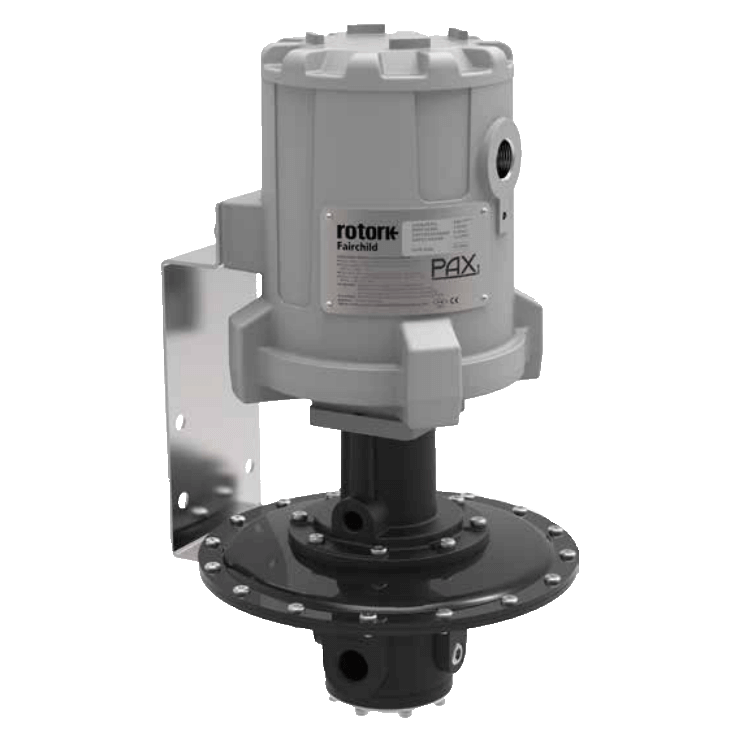

PAX1 Model 4100A High-Capacity Low Pressure Regulator

Brand: Fairchild Industrial Products
Rotork Fairchild's all new PAX1 Motor Set Pressure Regulator is a flexible low voltage DC powered linear actuator coupled to one of four Fairchild precision pressure regulators capable of controlling pressure ranges of 0-0.5 psig to 0-3,000 psig and housed in a flameproof enclosure.

The unit is inherently lock-in-last-place as the actuator will maintain its position upon loss of electrical power. The Model 4100A is designed for applications requiring high flow capacity and accurate process control.
Features
  • Large area, high sensitivity diaphragm provides control sensitivity of 0.05" water column for precision control in low pressure applications
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Large relief valve provides high exhaust flow capacity
  • Soft seat valves minimize air consumption
  • Aspirator tube compensates for downstream pressure droop for flow demand
show more
Rotork Fairchild's all new PAX1 Motor Set Pressure Regulator is a flexible low voltage DC powered linear actuator coupled to one of four Fairchild precision pressure regulators capable of controlling pressure ranges of 0-0.5 psig to 0-3,000 psig and housed in a flameproof enclosure.

The unit is inherently lock-in-last-place as the actuator will maintain its position upon loss of electrical power. The Model 4100A is designed for applications requiring high flow capacity and accurate process control.
Features
  • Large area, high sensitivity diaphragm provides control sensitivity of 0.05" water column for precision control in low pressure applications
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Large relief valve provides high exhaust flow capacity
  • Soft seat valves minimize air consumption
  • Aspirator tube compensates for downstream pressure droop for flow demand

Specifications

Diaphragm Material

  • Fluorocarbon on Dacron
  • Nitrile on Dacron

Enclosure, Body Material

  • Aluminum

Exhaust Capacity - Relieving Units Only

  • 13 scfm (22 m³/hour) Where Downstream Pressure is 0.2 psig (0.014 bar, 1.4 kPa) Above 3.0 psig (0.2 bar) Setpint

Flow Capacity

  • 70 scfm (119 m³/hour) @ 50 psig (3.44 bar, 344 kPa) Supply & 3.0 psig (0.2 bar) Setpint

Sensitivity

  • 0.05" WC (0.12 Mbar)

Supply Pressure - Maximum

  • psig: 150 (kPa: 1,034, bar: 10.34)

Supply Pressure Effect

  • None Detected

Trim Material

  • Stainless Steel
  • Zinc-Plated Steel
