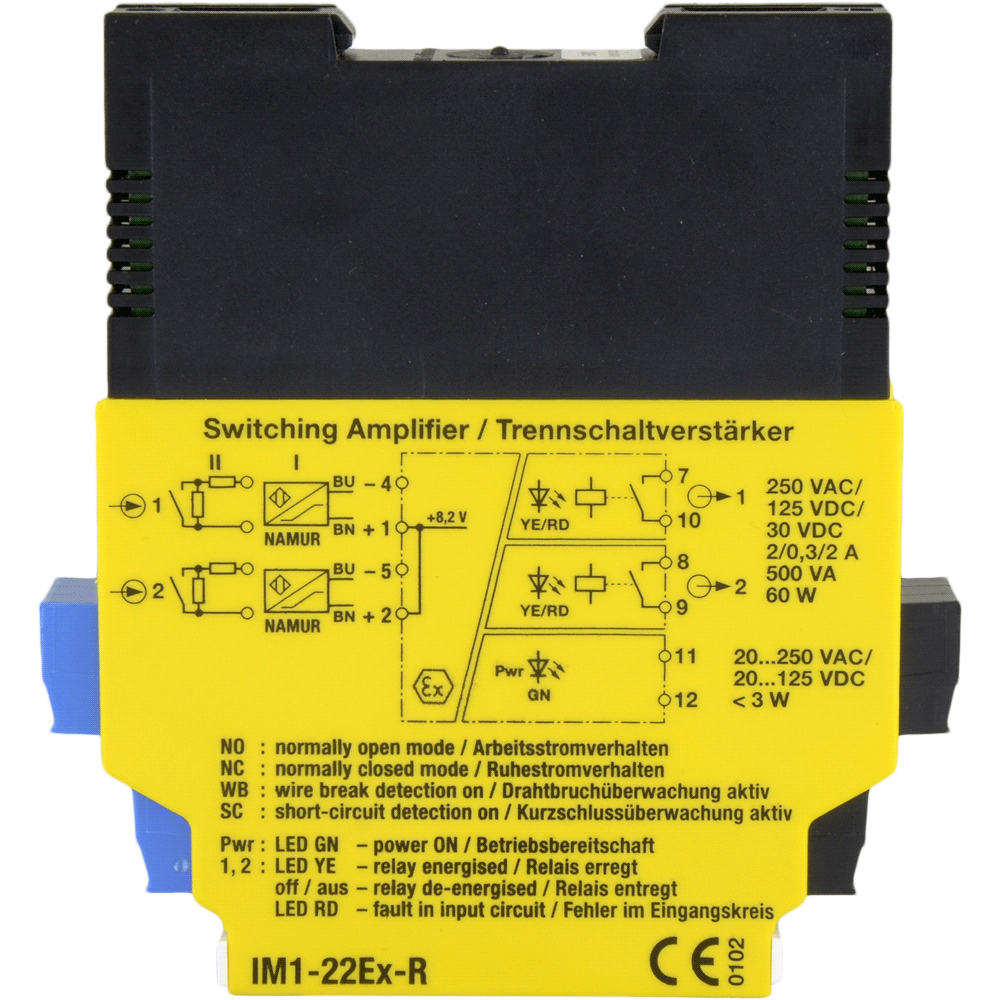

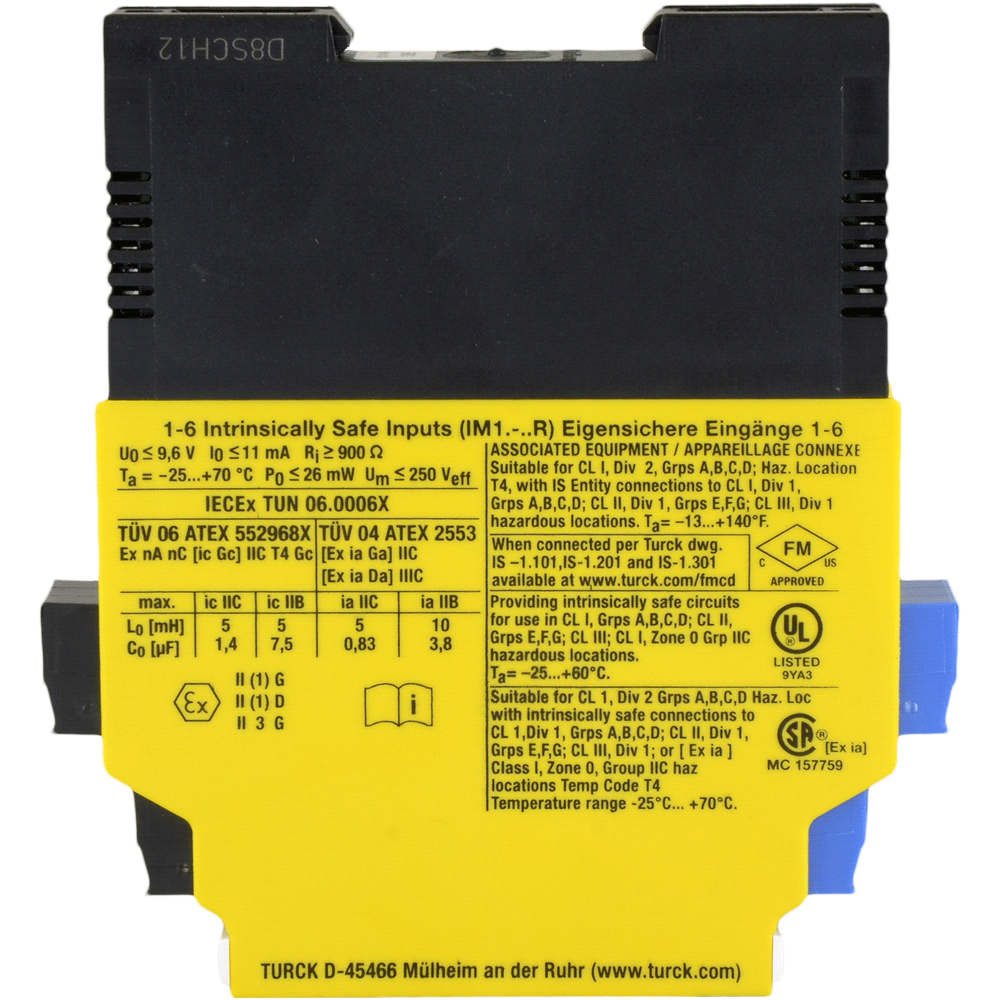

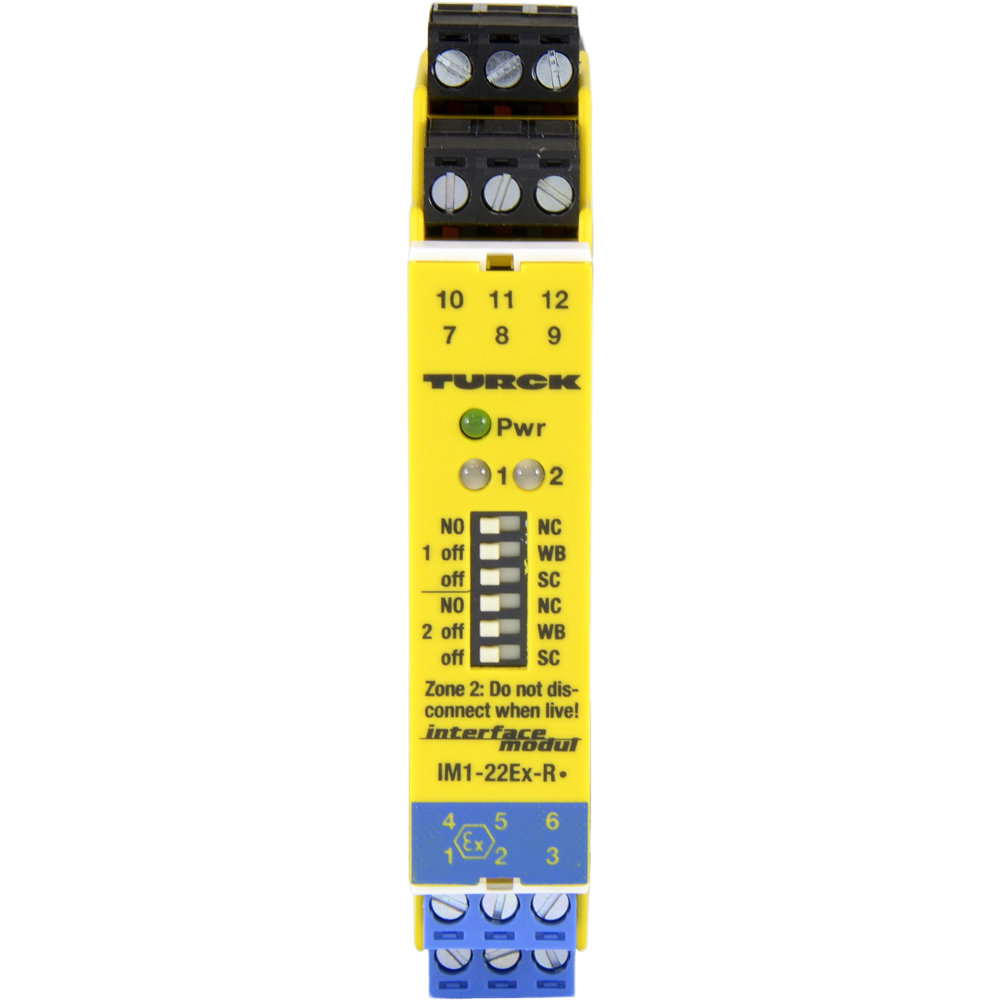

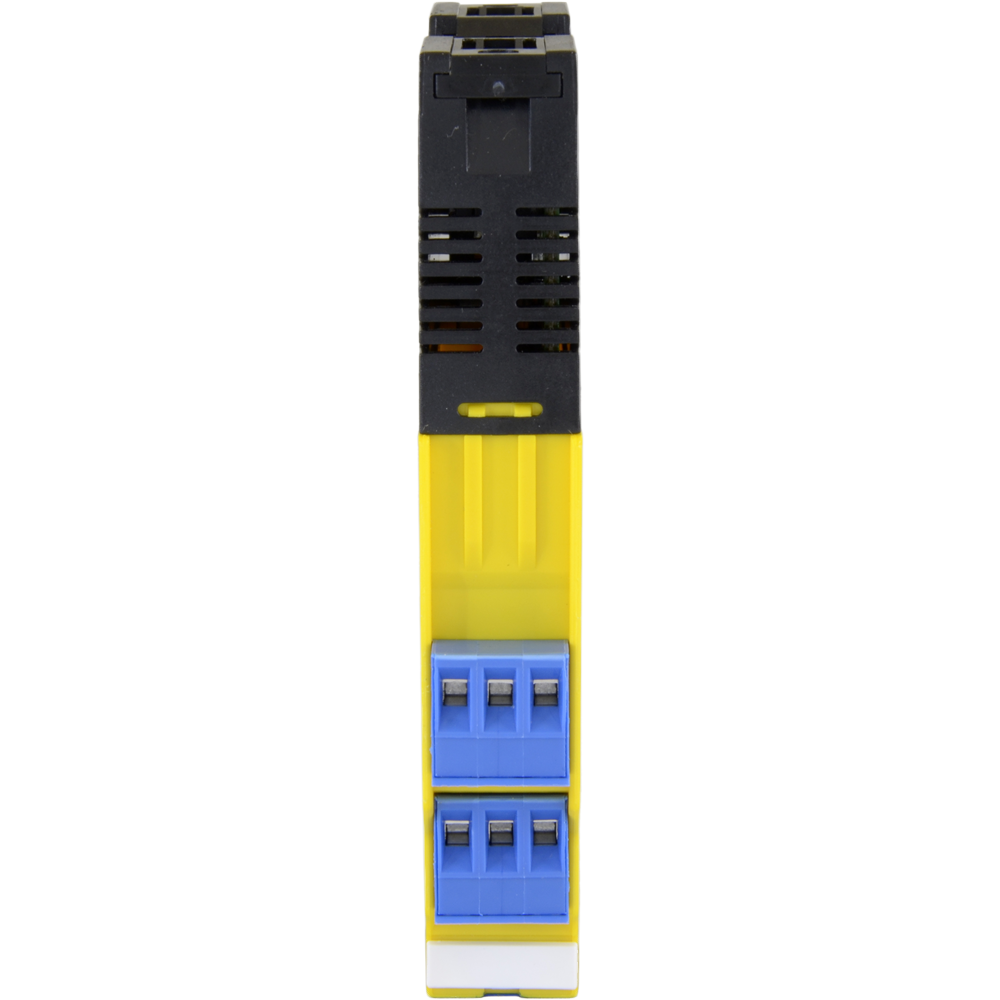

IM Series Interface Module

Brand: Turck, Inc.
  • Input: 1, 2, or 4 Channel
  • Output: 1, 2 or 5 Non-Hazardous Switching Circuits, 0-20 mA
  • Alarm: Non-Hazardous SPST Switch for open or short circuits
  • Pin Configuration: 18 mm, 12-pin or 27 mm, 20-pin Connectors
  • Housing: Polycarbonate/ABS
  • Temperature Ranges:
    • Operating: -25°C to +60°C (-13°F to +140°F)
    • Storage: -40°C to +80°C (-40°F to +176°F)
  • Operating Voltage: 20-125 Vdc (20-250 Vac) or 24 Vdc (ranges 10-30 Vdc)
  • Options:
    • Relay or Transistor Output Switch
    • Voltage or Current Output
    • HART Compatibility
    • Loop Powered Input
    • Software Configurable with PC for Temperature Relay
    • Configurable Limit Value Relay Output
  • Mounting: DIN Rail or Panel
  • Protection: IP20
  • Intrinsically Safe
show more
Images are representations only.
  • Input: 1, 2, or 4 Channel
  • Output: 1, 2 or 5 Non-Hazardous Switching Circuits, 0-20 mA
  • Alarm: Non-Hazardous SPST Switch for open or short circuits
  • Pin Configuration: 18 mm, 12-pin or 27 mm, 20-pin Connectors
  • Housing: Polycarbonate/ABS
  • Temperature Ranges:
    • Operating: -25°C to +60°C (-13°F to +140°F)
    • Storage: -40°C to +80°C (-40°F to +176°F)
  • Operating Voltage: 20-125 Vdc (20-250 Vac) or 24 Vdc (ranges 10-30 Vdc)
  • Options:
    • Relay or Transistor Output Switch
    • Voltage or Current Output
    • HART Compatibility
    • Loop Powered Input
    • Software Configurable with PC for Temperature Relay
    • Configurable Limit Value Relay Output
  • Mounting: DIN Rail or Panel
  • Protection: IP20
  • Intrinsically Safe
46 models matching criteria
IM1-22EX-T
TURCK Isolation Switch Relay, 2-Channel, 20-250 VAC, 20-125 VDC, NPN Outputs
8 In Stock
$407.00USD
$9.99 Shipping
IM72-22EX/L
TURCK Solenoid Driver/Discrete Output Isolator, 2-Channel, Loop-Powered
3 In Stock
$555.00USD
$9.99 Shipping
IM82-24-2.5
TURCK Switching Power Supply, 2.5 A, 24-28 VDC Output Current, Single or Parallel, NCNR
2 - 8 weeks
$230.00USD
$9.99 Shipping
available on backorder
IMX12-PS02-UI-UIR-PR/24VDC
TURCK Power Supply Module Power Rail
2 - 8 weeks
$241.00USD
$9.99 Shipping
available on backorder
IM82-24-5.0
TURCK Switching Power Supply, 5.0 A, 24-28 VDC Output Current, Single or Parallel, NCNR
2 - 8 weeks
$325.00USD
$9.99 Shipping
available on backorder
IM1-22EX-R/24VDC
TURCK Isolation Switch Relay, 2-Channel, 24 VDC
2 - 8 weeks
$336.00USD
$9.99 Shipping
available on backorder
IM1-121EX-R
TURCK Isolator, 1-Input, 1-Output + Alarm, NAMUR
Out of Stock
$341.00USD
$9.99 Shipping
IM1-12EX-R
TURCK Isolation Switch Relay, 1-Channel, 20-250 VAC, 20-125 VDC
2 - 8 weeks
$341.00USD
$9.99 Shipping
available on backorder
IM1-22EX-R
TURCK Isolation Switch Relay, 2-Channel, 20-250 VAC, 20-125 VDC
2 - 8 weeks
$352.00USD
$9.99 Shipping
available on backorder
IM1-12EX-T
TURCK Isolating Switching Amplifier, 1-Channel, 8.2 VDC, 2x Transistor, NCNR
2 - 8 weeks
$394.00USD
$9.99 Shipping
available on backorder
IM72-11EX/L
TURCK Analog Signal Isolator, 1-Channel, Intrinsically Safe, Short-Circuit Proof
Out of Stock
$421.00USD
$9.99 Shipping
IM82-24-10
TURCK Switching Power Supply, 10 A, 24-28 VDC Output Current, Single or Parallel, NCNR
2 - 4 weeks
$425.00USD
$9.99 Shipping
available on backorder
IM31-11EX-I
TURCK Analog Data Transmitter, 1-Channel, Short-Circuit Protected Output, 20-250 VAC, 20-125 VDC
2 - 8 weeks
$493.00USD
$9.99 Shipping
available on backorder
IM43-13-SR
TURCK Limit Value Indicator, 1-Channel 4-20 mA or 2-10 VDC Input, 3x Relay (NO) Circuits Outputs
2 - 8 weeks
$499.00USD
$9.99 Shipping
available on backorder
IM31-12EX-I
TURCK Analog Data Transmitter, 1-Channel, 2 Outputs, 20-250 VAC, 20-125 VDC
2 - 8 weeks
$586.00USD
$9.99 Shipping
available on backorder
IM31-22EX-U
TURCK Analog Signal Transmitter, 2-Channel, Short-Circuit Protected Output, IS,
Out of Stock
$602.00USD
$9.99 Shipping
IM43-13-R
TURCK Limit Value Indicator, 1-Channel 4-20 mA or 2-10 VDC Input, 3x Relay (NO) Circuits Outputs
14 - 58 days
$602.00USD
$9.99 Shipping
available on backorder
IM1-231EX-R
TURCK Isolating Switching Amplifier, 2 Channel, IS, NAMUR
2 - 8 weeks
$608.00USD
$9.99 Shipping
available on backorder
IM33-11EX-HI/24VDC
TURCK Isolator, 1-Channel HART or Conventional Compatable Analog Input, 24 VDC
2 - 8 weeks
$629.00USD
$9.99 Shipping
available on backorder
IM36-11EX-U/24VDC
TURCK Potentiometer Transducer, 1-Channel, 19-29 VDC
2 - 8 weeks
$644.00USD
$9.99 Shipping
available on backorder
IM31-22EX-I
TURCK Analog Data Transmitter, 1-Channel, Short-Circuit Protected Output, 20-250 VAC, 20-125 VDC
2 - 8 weeks
$653.00USD
$9.99 Shipping
available on backorder
IMX12-AI01-2I-2IU-H0/24VDC
TURCK Isolating Transducer, 2-Channel HART
2 - 4 weeks
$665.00USD
$9.99 Shipping
available on backorder
IM33-11EX-HI
TURCK Isolator, 1-Channel HART or Conventional Compatable Analog Input
2 - 8 weeks
$703.00USD
$9.99 Shipping
available on backorder
IM43-14-SRI
TURCK Limit Value Indicator, 1-Channel 4-20 mA or 2-10 VDC Input, 3x Relay (NO) Circuits Outputs
2 - 8 weeks
$723.00USD
$9.99 Shipping
available on backorder
IM34-11EX-CI
TURCK Temperature Converter, 1-Channel, 20-250 VAC, 20-125 VDC
2 - 8 weeks
$792.00USD
$9.99 Shipping
available on backorder

IM Interface

Base Model

Input - IM72

Input - IM1

Input - IM31

Input - IM33

Input - IM34

Input - IM35

Output Switch - IM72

Output Switch - IM31

Output Switch - IM33

Output Switch - IM34

Output Switch - IM35

Output Switch - IM1

Alarm Switch - IM1

Supply Options - IM72

Output Options - IM31

Output Options - IM34

Output Options - IM36

Switching Circuits - IM1

  • view details

Voltage - IM1

Voltage - IM33

Voltage - IM35

Specifications

Brand

Accuracy

  • ≤ 0.1% of Full Scale Output
  • ≤ 0.2% of Full Scale Output

Alarm

  • None
  • Non-Hazardous Area Alarm Switch

Ambient Temperature Range

  • -25° to 70° C (-13° to 158° F)

Approvals & Certifications

  • CSA
  • FM

Circuit Protection

  • Short Circuit Current 8.2 mA

Electrical Connectors

  • 4 times 3-Pole Removable Terminal Blocks, Reverse Polarity Protected, Screw Connection

Enclosure, Body Material

  • Polycarbonate/ABS

Environmental Protection

  • IP20

Frequency

  • 40 to 70 Hz

Indication

  • LED Indicators for Readiness, Switching, & Error

Input

  • 1-channel
  • Four Channel
  • Two Channel

Mounting

  • DIN Rail Mounting
  • Panel Mount

Output

  • 20-125 Vdc
  • 20-250 Vac
  • 4-20 mA

Output Format

  • Configurable Limit Value Relay Output
  • Current Output
  • Relay Output
  • Software Configurable
  • Transistor Output
  • Voltage Output

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Supply Voltage

  • 19-29 Vdc
  • 24 Vdc

Switch Type

  • SPST
