RT7 RTD Assembly

Brand: Aircom Instrumentation Ltd.
Request Information
Favorite

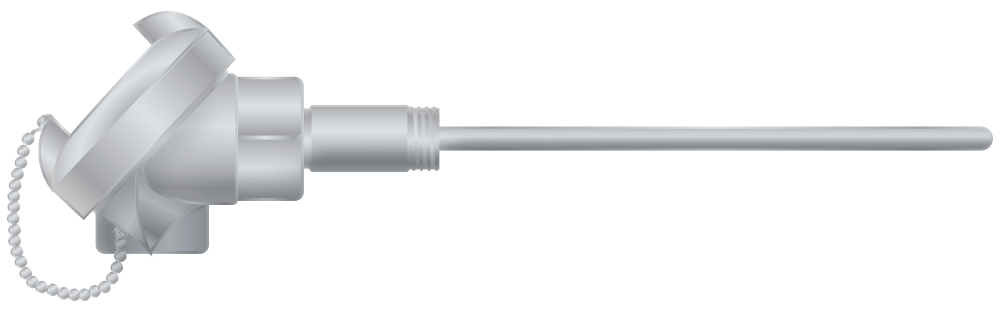

The RT7 RTD assembly is a resistance temperature detector designed for use in hazardous locations. The RT7 is a customizable product that is model number configured and made to order.

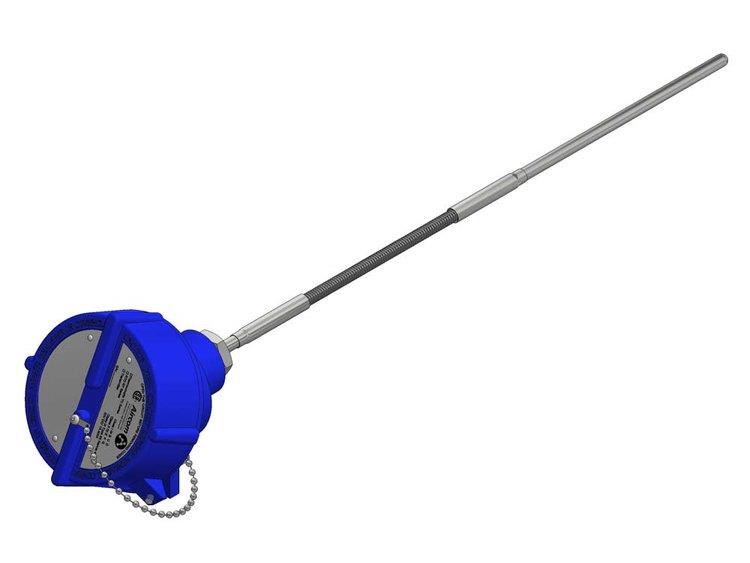

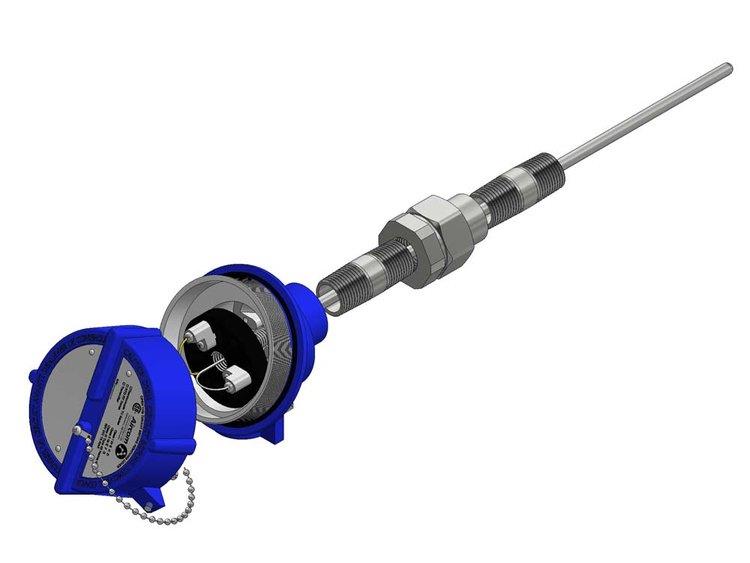

The RT7 consists of a stainless steel RTD sensor, complete with a connection head (enclosure) that may be provided with a terminal block, DIN rail, wire splice connectors, or internal transmitter.

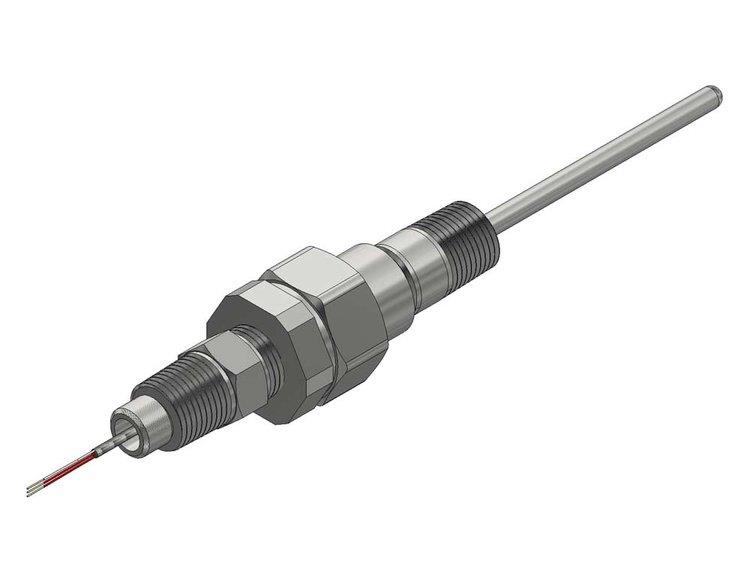

Connection extension fittings will spring load the sensor into a thermowell or a fixed fitting can be used without a thermowell.

Class I, Division 1, Groups B, C, D; Class II, Division 1, Groups E, F, G; Class III; T6…T1

Class I, Zone 1, Groups IIB plus hydrogen, IIB; Zone 20; T6…T1
Features
• Simple design that is used and accepted across multiple process industries.
• RT7 configuration options allow for many different arrangements to be configured for almost any temperature measurement application.
show more
The RT7 RTD assembly is a resistance temperature detector designed for use in hazardous locations. The RT7 is a customizable product that is model number configured and made to order.

The RT7 consists of a stainless steel RTD sensor, complete with a connection head (enclosure) that may be provided with a terminal block, DIN rail, wire splice connectors, or internal transmitter.

Connection extension fittings will spring load the sensor into a thermowell or a fixed fitting can be used without a thermowell.

Class I, Division 1, Groups B, C, D; Class II, Division 1, Groups E, F, G; Class III; T6…T1

Class I, Zone 1, Groups IIB plus hydrogen, IIB; Zone 20; T6…T1
Features
• Simple design that is used and accepted across multiple process industries.
• RT7 configuration options allow for many different arrangements to be configured for almost any temperature measurement application.
Close

Displaying prices & availability for United States in USD. Change location or currency

RT7-3AL-FX-1.5-A-S-3-LT-0.5-18
AIRCOM RTD Assembly, Aluminum, Fixed, Platinum, Single, 3-Wire, 1/2"NPT View More
  • RT7: RTD Assembly
  • 3AL: General Purpose - Cast Aluminum Connection Head
  • FX: Fixed (1/2” NPT Process)
  • 1.5: 1.5" Body Length
  • A: 100U Platinum 385 ± 0.1%
  • S: Single Element
  • 3: 3 Wire
  • LT: Low Temp. (204°C Max.)
  • 0.5: 1/2" Probe
  • 18: 1/8" Probe Diameter
2 - 4 weeks
$308.28USD
$19.22 Shipping
RT7-2ALT-NUN-3.5-A-S-3-LT-4-14
AIRCOM RTD Assembly, Aluminum, NippleUnion,3.5", 100 amp, Single, 3-Wire, Max 204°C, 10", 1/4"NPT View More
  • RT7: RTD Assembly
  • 2ALT: Aluminum epoxy, 3/4" NPT Conduit Connection, Bakelite terminal block. 1/2" NPT Instrument Connection
  • NUN: Nipple/Union/Nipple
  • 3.5: Process Fitting Length in inches
  • A: 100Ω Pt. 385 Class A6
  • S: Single Element
  • 3: 3-wire
  • LT: Low Temperature (-50 to 204°C max)
  • 4: Probe Length in inches
  • 14: 1/4" Probe Diameter (0.250")
1 - 2 weeks
$319.37USD
$19.22 Shipping
RT7-2SS-NUN-2-A-S-4-LT-6-14
AIRCOM RTD Assembly, 316 SST, Nip Union, 2", Platinum, Single, 4-Wire, Max 204°C, 6", 1/4"NPT
2 - 4 weeks
Non-Cancellable / Non-Refundable
Close
Close

Specifications

Brand

Element

  • 10 ohms Copper 427 0.039 ohm/°C
  • 100 ohms Platinum 385 ± 0.01 %
  • 100 ohms Platinum 385 ± 0.1 %
  • 100 ohms Platinum 392 ± 0.1 %
  • 120 ohms Nickel 627 0.806 ohm/°C
  • Dual Elements
  • Single Element

Materials of Construction

  • 316 Stainless Steel

NPT Connection

  • 1/2” NPT Female

Process Fitting Details

  • Fixed
  • Nipple
  • Nipple / Union / Nipple

Sensor, Probe Diameter

  • 0.215” O.D.
  • 1/4” O.D.
  • 1/8” O.D.
  • 3/16” O.D.

Temperature Range

  • -50° C to +450° C (-58° F to +842° F)
  • -50° C to +50° C (-58° F to +122° F)

Version / Leadwires

  • 2-Wire
  • 3-Wire
  • 4-Wire
  • 4-Wire Compensated Loop
Close

Typical Applications

• Hazardous location temperature measurement
• Industrial temperature measurement
• Process control
• Outdoor / indoor use
