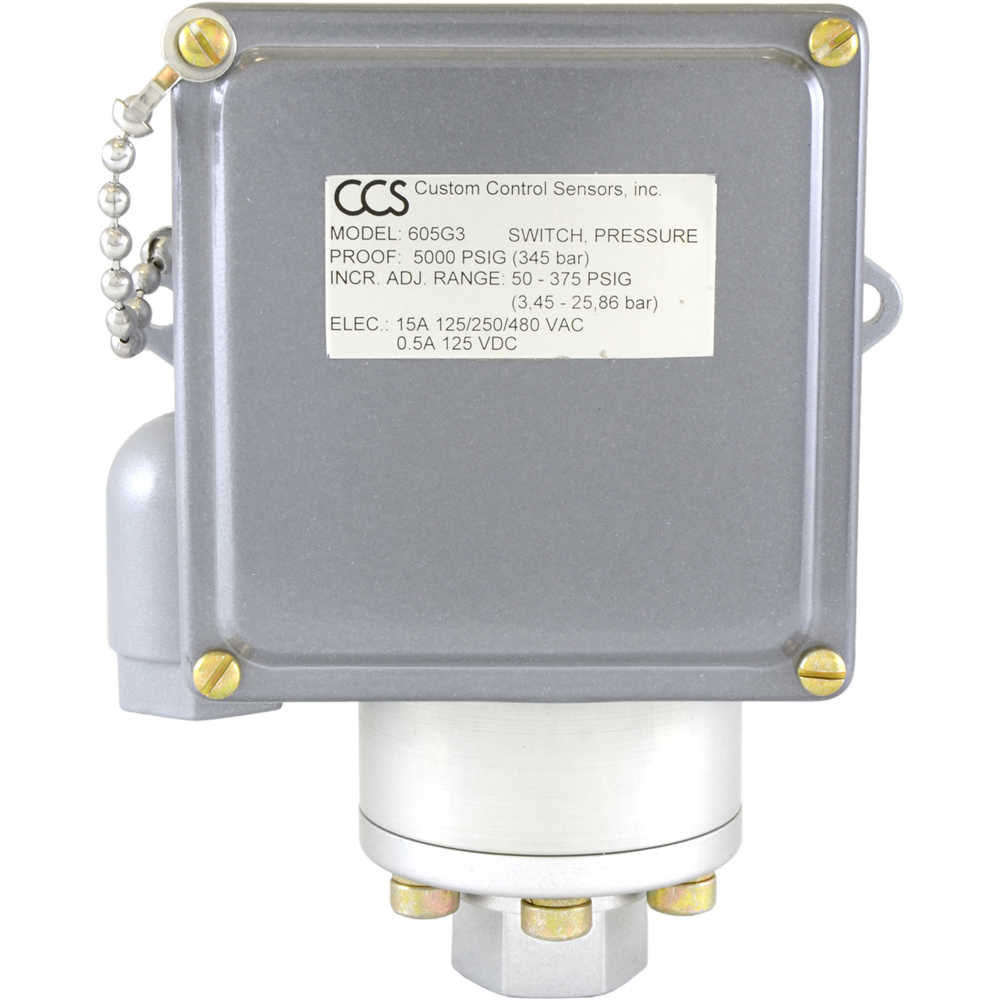

Description
- Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
- Engineering based on aerospace technology.

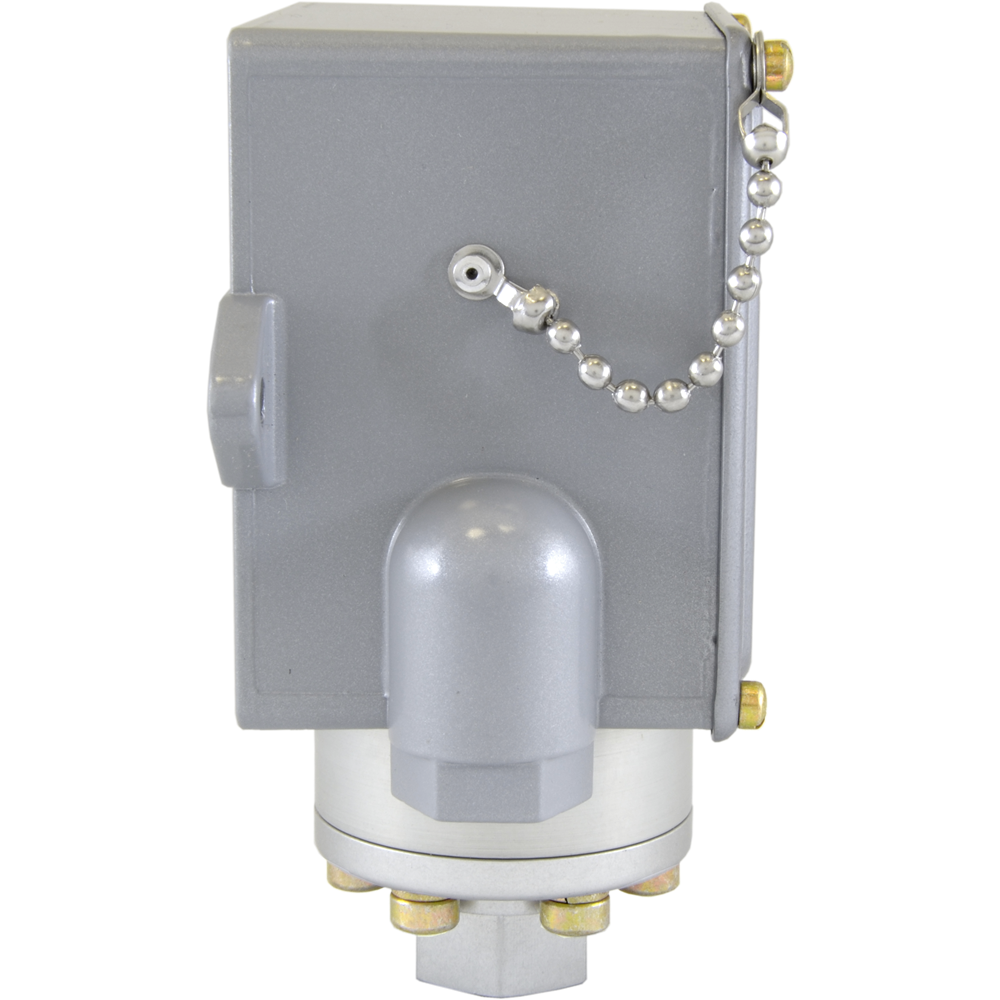

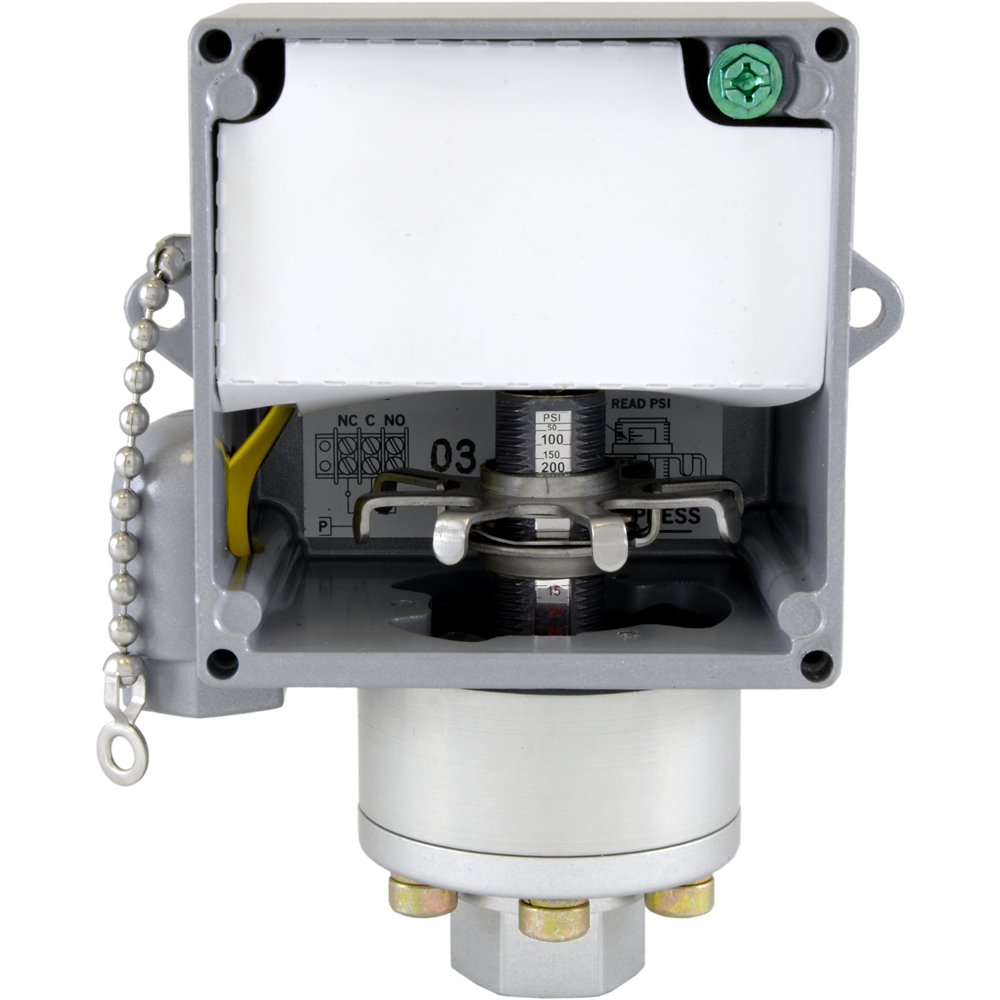

- Rigid, midsize and internally adjustable for convenient fi eld set point adjustment.
- Repeatable and stable set points.
- Vibration and shock resistant.
- High cycle life.
- High over-pressure capability. (System and Proof)

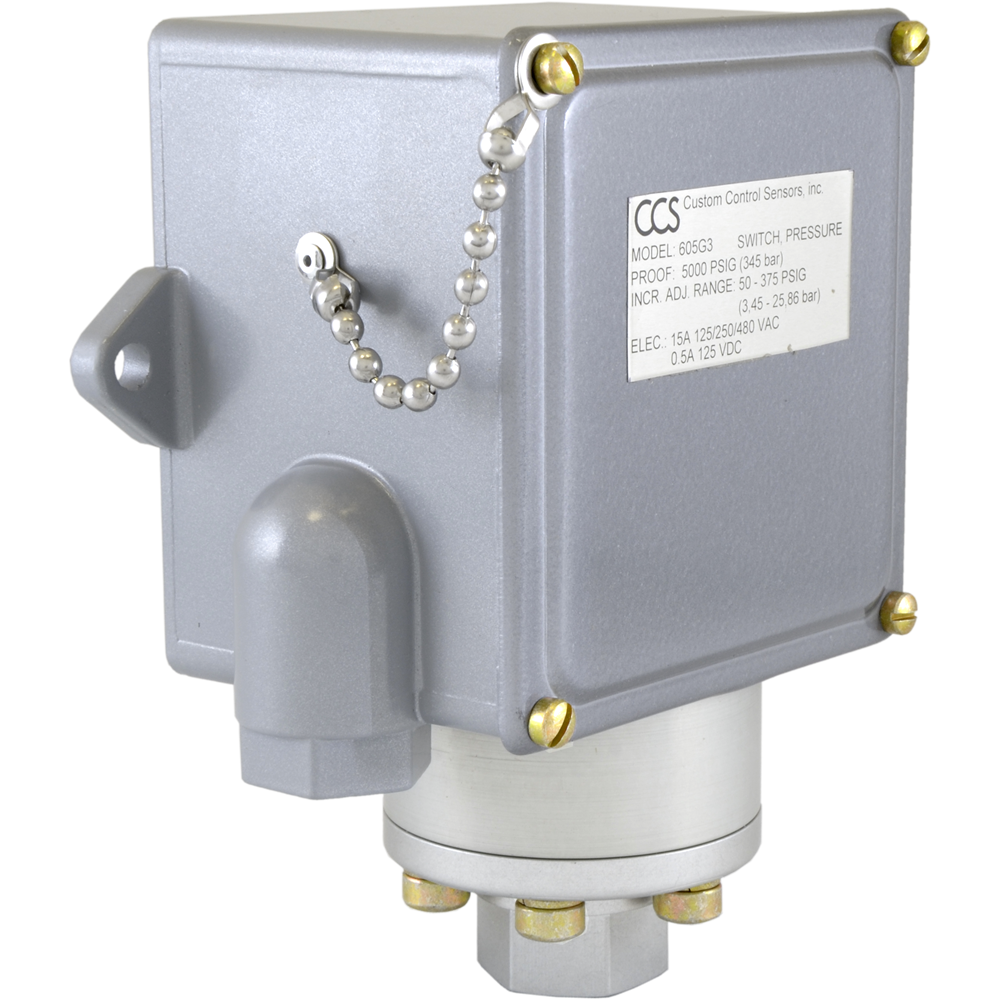

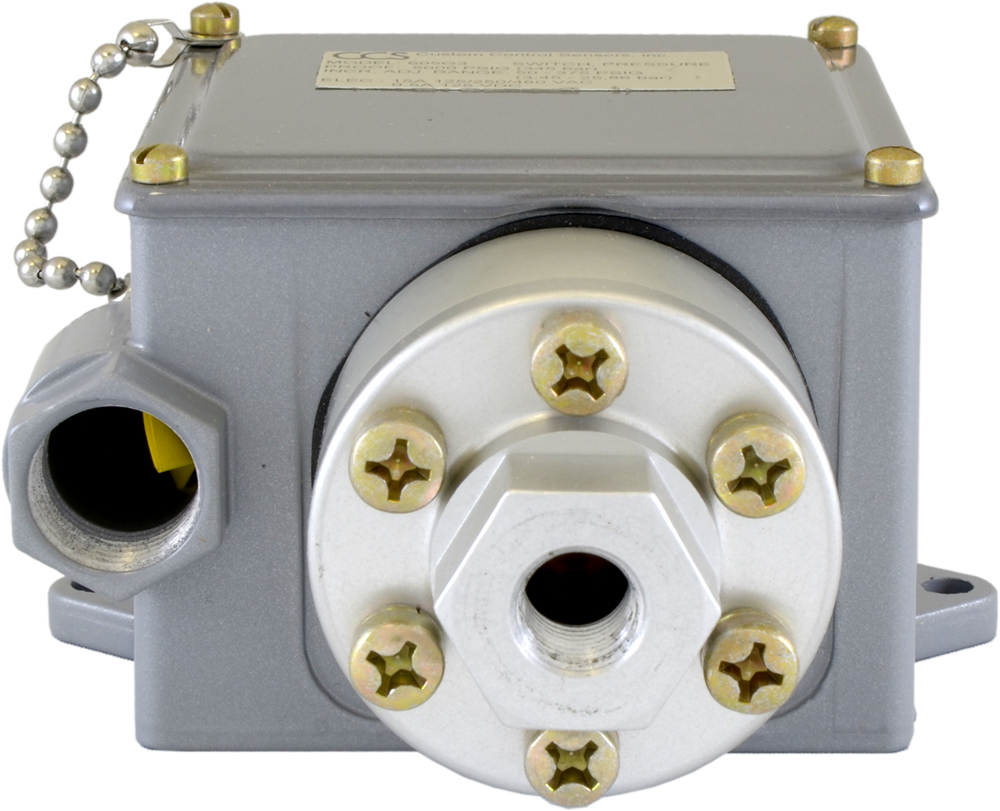

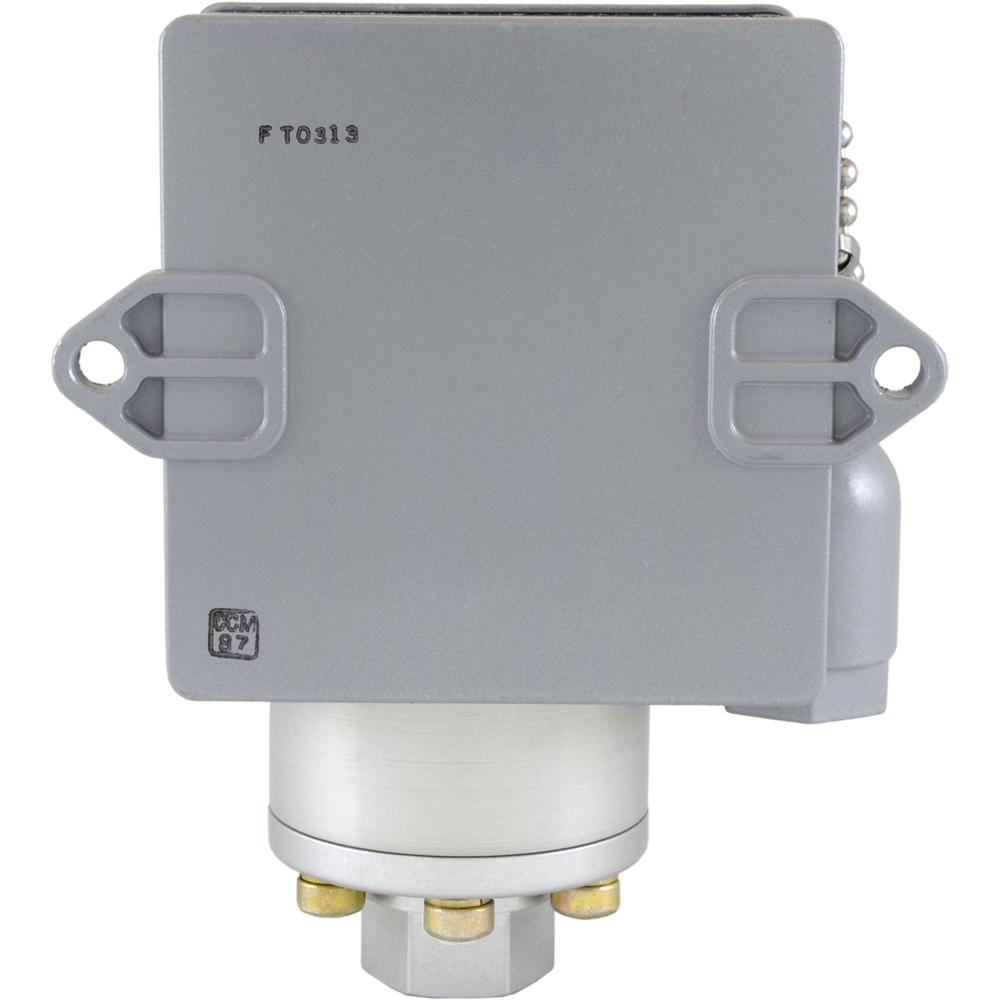

- Bottom electrical conduit prevents the entry of ambient moisture and lessens mounting interference.
- Suitable for cable gland entry
- Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
Configure
605GZ-7011
Base Model
Welded Internal Diaphragm
A metal diaphragm is welded to the inside of the pressure port, eliminating the O-Ring. This arrangement may be desired for processes where O-Rings may present a problem.
O-Ring
Diaphragm & O-Ring
Output
Electrical Contacts
Manual Reset
This Manual Reset option allows for automatic actuation on increasing pressure.
Specifications
Specifications
Brand
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - N.W. Territories
- CRN - Saskatchewan
Deadband, Approximate
- bar: 0.07 to 33.1
- kPa: 6.9 to 3,309
- psig: 1 to 480
Diaphragm Material
- Stainless Steel
Electrical Connectors
- 1/2" NPT Male
Electrical Rating
- (604) SPDT: 15 A at 125/250/480 Vac Res, 0.4 A at 125 DC, 0.2 A at 250 DC DPDT: 5 A at 125/250 Vac Res, 5 A at 28 DC, 0.5 A at 125 DC, Double Break: 15 A at 125/250/480 Vac Res, 1 A at 125 DC, 0.5 A
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP54
- IP66
- NEMA 13
- NEMA 4
- NEMA 4X
- Weatherproof
NACE & NIST
- NACE
- NACE MR-0175:2003
NPT Connection
- 1/2" NPT Female
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- Ethylene Propylene (EPR)
- Viton
Output
- DPDT
Proof Pressure
- bar: 51.7 to 517
- kPa: 5,171 to 51,711
- psig: 750 to 7,500
Service
- Sour (Oil & Gas)
Set Point - Decreasing
- bar: 00.0276 to 311.6
- kPa: 02.758 to 31,164
- psig: 0.4 to 4,520
Set Point - Increasing
- bar: 00.0965 to 344.7
- kPa: 09.653 to 34,474
- psig: 1.4 to 5,000
System Pressure
- bar: 34.5 to 345
- kPa: 3,447 to 34,474
- psig: 500 to 5,000
