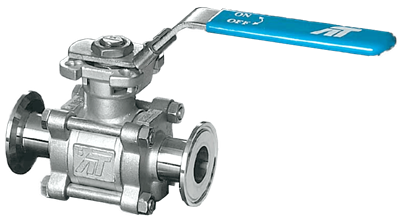

Images are representations only.

77 Series Automated Ball Valve

Brand: A-T Controls, Inc.
Request Information
Favorite
Features
  • Design: 3-Piece Sanitary Ends
  • Size: 1/2" to 4"
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: PTFE, Cavity Filled, Non-Cavity Filled
  • End Connections: Sanitary Clamp, Tube O.D.
  • Max Pressure Rating: 1,000 psi
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
show more
Features
  • Design: 3-Piece Sanitary Ends
  • Size: 1/2" to 4"
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: PTFE, Cavity Filled, Non-Cavity Filled
  • End Connections: Sanitary Clamp, Tube O.D.
  • Max Pressure Rating: 1,000 psi
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

25 models matching criteria
77-C1-100/2R2D-XX
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 1", Double-Acting Pneum Actuator, NEMA 4 View More
  • 77: 3 Piece, 1000 WOG, Full Port, Sanitary Valve
  • C: Sanitatary Clamp Ends (SST Body and Trim)
  • 1: Valve Series Standard
  • 100: 1" Valve Size
  • 2R2D: 2R40DA Pneumatic Double Acting Actuator
  • XX: No specials
2 - 4 weeks
$414.99 USD
$15.51 Shipping
77-C1-075/2R3S-XX
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 3/4", Spring Return,Pneum.Actuator View More
  • Design: 3-Piece Non-Cavity Filled Sanitary
  • Size: 3/4" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard PTFE Seats
  • End Connections: Sanitary Clamp Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80 Spring Return
2 - 4 weeks
$472.40 USD
$15.51 Shipping
77-C1-100/2R3S-XX
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 1", Spring Return, Pneum. Actuator, NEMA4 View More
  • 77: 3 Piece, 1000 WOG, Full Port, Sanitary Valve
  • C: Sanitatary Clamp Ends (SST Body and Trim)
  • 1: Valve Series Standard
  • 100: 1" Valve Size
  • 2R3S: 2R80SR Pneumatic Spring Return Actuator
  • XX: No specials
2 - 4 weeks
$511.18 USD
$15.51 Shipping
77-C1-100/2R3S-AX
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 1", Spring Return, Pneum.Actuator,NEMA4 View More
  • Design: 3-Piece Non-Cavity Filled Sanitary
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard PTFE Seats
  • End Connections: Sanitary Clamp Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80 Spring Return
  • Options: NEMA 4 Solenoid
2 - 4 weeks
$598.06 USD
$15.51 Shipping
77-C1-100/2R3S(80)-AX
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 1", Spring Return, Pneum.Actuator,120VAC View More
  • Design: 3-Piece Non-Cavity Filled 1000# Sanitary
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard Seats
  • End Connections: Sanitary Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 800 In-Lbs. Spring Return sized for 80 PSI
  • Options: NEMA 4 Solenoid 120VAC
2 - 4 weeks
$622.10 USD
$15.51 Shipping
77-C1-100/2R3S-AX-24VDC
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 1", Spring Ret.,Pneum.Actuator,NEMA4,24VDC View More
  • Design: 3-Piece Non-Cavity Filled Sanitary
  • Size: 1" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard PTFE Seats
  • End Connections: Sanitary Clamp Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80 Spring Return
  • Options: NEMA 4 Solenoid, 24 VDC (TVCS-X411-4N-D24 mounted)
2 - 4 weeks
$622.10 USD
$15.51 Shipping
77-C1-100/2R3S-DX
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 1", Spring Return Pneum. Actuator, NEMA4 View More
  • 77: 3pc 1000/800 WOG, Full Port, Sanitary
  • C: Sanitary Clamp Ends
  • 1: PTFE Seats Standard
  • 100: 1-Inch
  • 2R3S: 2R80SR Pneumatic Actuator
  • D: NEMA 4 Solenoid, 24 VDC (TVCS-X411-4N-D24 mounted)
  • X: No Specials



  • Design: 3-Piece Non-Cavity Filled Sanitary
  • Size: 1" NPT
  • Port: Full
  • Seats: PTFE
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard PTFE Seats
  • End Connections: Sanitary Clamp Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic: 2R80 Spring Return
  • Options: NEMA Type 4 Solenoid 24VDC
2 - 4 weeks
$622.10 USD
$15.51 Shipping
77-CF-075/2R3S-XA
A-T CONTROLS 2R80SR Actuator w 2 SPDT Mech Limit Switches & Mounted to 77 Ball Valve View More
  • 77: 3 Piece, 1000 WOG, Full Port, Sanitary Valve

    • Stainless Steel Body and Trim
  • C: Sanitary Clamp Ends
  • F: TFE Cavity Filler
  • 075: 3/4" Valve Size
  • 2R3S: 2R80 SR Pneumatic Actuator
    • Design: Triac Rack & Pinion Actuator with Double Travel Stops
    • Pneumatic Actuator: Spring Return Fail Clockwise Configuration
    • Torque: 800 In-Lbs.
    • Number of Springs: 5 Per Side
    • Mounting: ISO, DIN Configuration
    • Seals: Buna
  • X: No Specials
  • A: Type 4 Limit Switch: APL-210N
    • CSA, Type 4X - Compact Enclosure
    • (2) SPDT Mechanical
    • Aluminum Enclosure
2 - 4 weeks
$653.91 USD
$15.51 Shipping
77-CF-075/2R3S-BA
A-T CONTROLS Series 77 Automated Ball Valve, 3-Piece Full Port, 316 SST, 3/4" Sanitary, Cavity Filled, PTFE, 2R80SR Pneumatic Actuator, Spring Return, Type 7 Solenoid 120 VAC, Type 4 Limit Switch View More
  • 77: 3 Piece, 1000 WOG, Full Port, Sanitary Valve

    • Stainless Steel Body and Trim
  • C: Sanitary Clamp Ends
  • F: TFE Cavity Filler
  • 075: 3/4" Valve Size
  • 2R3S: 2R80 SR Pneumatic Actuator
    • Spring Return
  • B: Type 7 Solenoid: TVC6-X411-7N-A240
    • CSA, UL, CE, SIL3
    • 4 Way, 2 Position, Single Coil (DA/SR)
    • 240 VAC Voltage
  • A: Type 4 Limit Switch: APL-210N
    • CSA, Type 4X - Compact Enclosure
    • (2) SPDT Mechanical
    • Aluminum Enclosure
2 - 4 weeks
$914.54 USD
$15.51 Shipping
77-C1-200/2R4S-AX-24VDC
A-T CONTROLS Series 77 Ball Valve, 3-Piece SST, Sanitary, 2", Spring Ret.,Pneum.Actuator,NEMA4,24VDC View More
  • Design: 3-Piece Non-Cavity Filled Sanitary
  • Size: 3" NPT
  • Port: Full
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard PTFE Seats
  • End Connections: Sanitary Clamp Ends
  • Maximum Pressure Rating: 800 psi
  • Actuator-Pneumatic: 2R130 Spring Return
  • Options: NEMA 4 Solenoid, 24 VDC
2 - 4 weeks
$963.41 USD
$15.51 Shipping
Show More Models (14)
Close
Close

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Full

Pressure Rating

  • psi: 1,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • Cavity Filled
  • PTFE (Carbon Filled Teflon)

TA-Luft Certified

  • Yes

Tri-Clamp Connection

  • 1" Sanitary Clamp
  • 1/2" Sanitary Clamp
  • 1-1/2" Sanitary Clamp
  • 2" Sanitary Clamp
  • 2-1/2" Sanitary Clamp
  • 3" Sanitary Clamp
  • 3/4" Sanitary Clamp
  • 4" Sanitary Clamp

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated
