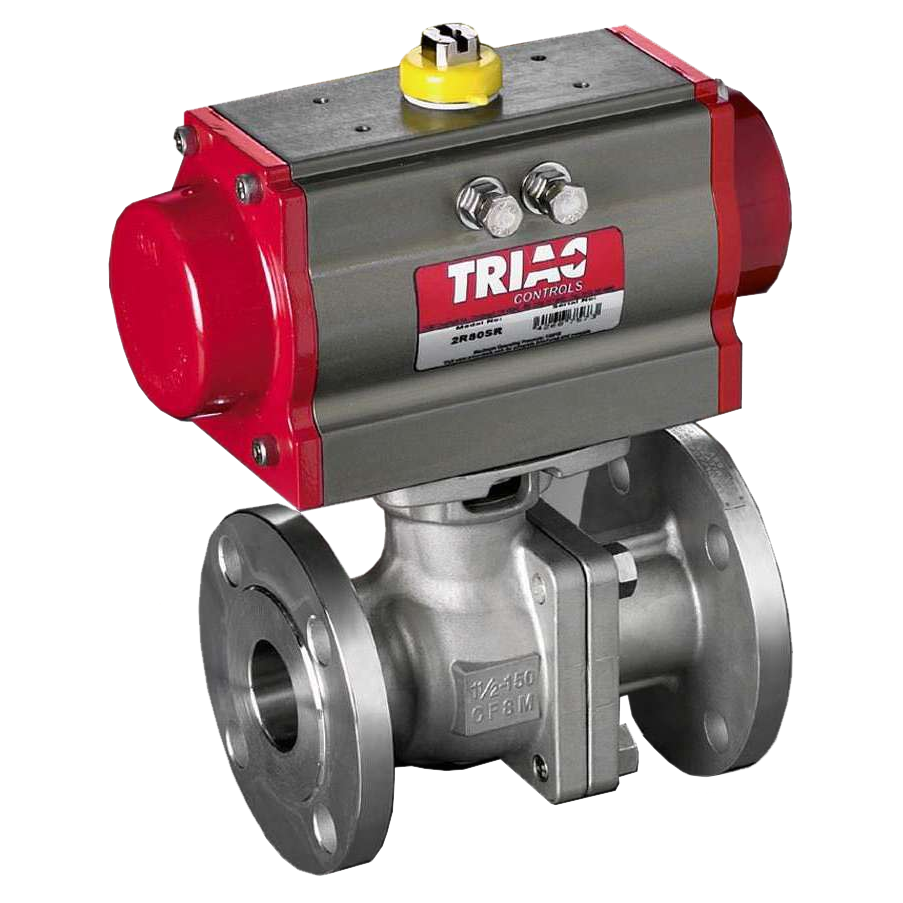

FD9 Series 300# Flanged Automated Ball Valve

Brand: A-T Controls, Inc.
Triac FD9 Series Flanged Ball Valves feature a direct mount automation pad.

The high quality investment castings feature a fully machined bore.

The superior live-loaded packing system is accomplished with Belleville washers, “V” ring packing and a unique primary pyramidal stem seal.

This advanced sealing system provides protection against stem leaks experienced by ordinary ball valves.

RTFE seats are standard, but various options are available for seat materials.

The 50/50 STFE seat option is excellent for services that call for higher temperatures and more difficult applications, including steam.
Features
  • Design: 2-Piece 300# Flanged Fireproof, Direct mount
  • Size: 1/2" to 6"
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, TFM-1600, MG1241, UHMWPE, 50/50%
  • End Connections: 300# Flanged End
  • Maximum Pressure Rating: psig: 725
  • Actuator Type:
    • Pneumatic: Double Acting or Spring Return
    • Electric: On/Off or Modulating
show more
Triac FD9 Series Flanged Ball Valves feature a direct mount automation pad.

The high quality investment castings feature a fully machined bore.

The superior live-loaded packing system is accomplished with Belleville washers, “V” ring packing and a unique primary pyramidal stem seal.

This advanced sealing system provides protection against stem leaks experienced by ordinary ball valves.

RTFE seats are standard, but various options are available for seat materials.

The 50/50 STFE seat option is excellent for services that call for higher temperatures and more difficult applications, including steam.
Features
  • Design: 2-Piece 300# Flanged Fireproof, Direct mount
  • Size: 1/2" to 6"
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, TFM-1600, MG1241, UHMWPE, 50/50%
  • End Connections: 300# Flanged End
  • Maximum Pressure Rating: psig: 725
  • Actuator Type:
    • Pneumatic: Double Acting or Spring Return
    • Electric: On/Off or Modulating
22 models matching criteria
A-T CONTROLS Series FD9 Ball Valve, Vented, 300#, 1", 316 SST Full-Port, Spring Return, 80 psi, CSA View More
  • F: Firesafe
  • D9: Direct Mount Flanged, Split Body, Valve Series
  • F3: 300# Flanged Ends
  • 100: 1" Valve Size
  • 2R3S: 2R80 Pneumatic Spring Return Actuator
  • B: Type 7 Solenoid 120 VAC
  • X: No Specials
  • V: Vented Ball for Up Stream
  • 316 full port
  • 1” 300 lb ball valve
  • Complete vented balls upstream
  • Complete with spring return pneumatic actuators
  • Sized at 80 psi
  • C/W TSM Stem Extension
  • Explosion proof solenoid as per spec CSA certified
2 - 4 weeks
$943.12USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Vented, 300#, 1", 316 SST Full-Port, SR, Low Temp, 80 psi, CSA View More
  • F: Firesafe
  • D9: Direct Mount Flanged, Split Body, Valve Series
  • F3: 300# Flanged Ends
  • 100: 1" Valve Size
  • 2R3S: 2R80 Pneumatic Spring Return Actuator
  • B: Type 7 Solenoid 120 VAC
  • X: No Specials
  • V: Vented Ball for Up Stream
  • LT: Low Temp Seals and Lubricant
2 - 4 weeks
$1,032.80USD
$19.11 Shipping
A-T CONTROLS FD9 Series FireSafe Split Body Ball Valve,300# Flanged,2",Spring Return,w/RTFE Seats View More
  • F: Firesafe
  • D9: Direct Mount Flanged
  • C: Carbon Steel Body
  • 3: 300# Flanged Ends
  • X: Reinforced TFE Seats (RTFE)
  • 0200: 2" Valve Size
  • 2R4S: Actuator-Pneumatic 2000 In-Lbs Spring Return
  • XX: No Specials
2 - 4 weeks
$1,054.11USD
$19.11 Shipping
A-T CONTROLS FD9 Series FireSafe Split Body Ball Valve,300# Flanged,2",Spring Return,w/RTFE Seats View More
  • F: Firesafe
  • D9: Direct Mount Flanged
  • C: Carbon Steel Body
  • 3: 300# Flanged Ends
  • X: Reinforced TFE Seats (RTFE)
  • 0200: 2" Valve Size
  • 2R5S: Actuator-Pneumatic 2000 In-Lbs Spring Return
  • XX: No Specials
2 - 4 weeks
$1,054.11USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Firesafe, Split Body 300# Flange, 2",Spring Return,w/RTF,LowTemp View More
  • F: Firesafe
  • D9: Direct Mount Flanged
  • 3X: 300# Flanged Ends, Reinforced TFE Seats (RTFE)
  • 0200: 2-Inch Valve
  • 2R5S: 2R200 Spring Return Actuator
  • X: No Specials
  • X: No Specials
  • LT: Low Temperature Seals
2 - 4 weeks
$1,198.19USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Firesafe, Split Body CS, 300# Flange, 2",Electric, RTFE View More
  • F: Firesafe
  • D9: Direct Mount Flanged
  • C: Carbon Steel Body
  • 3: 300# Flanged Ends
  • X: Reinforced TFE Seats (RTFE)
  • 0200: 2" Valve Size
  • WEB1: Actuator-Electric Modulating WEM-690
  • XX: No Specials
2 - 4 weeks
$1,337.86USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Vented, 300#, 2", 316 Full-Port, Spring Return, 80 psi, CSA View More
  • F: Firesafe
  • D9: Direct Mount Flanged, Split Body, Valve Series
  • F3: 300# Flanged Ends
  • 200: 2" Valve Size
  • 2R5S: 2R200 Pneumatic Spring Return Actuator
  • B: Type 7 Solenoid 120 VAC
  • X: No Specials
  • V: Vented Ball for Up Stream
2 - 4 weeks
$1,553.97USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Firesafe, Split Body 300# Flange, 2",Spring Return Actuator View More
  • F: Firesafe Tested
  • D9: Direct Mount Flanged
  • 3X: 300# Flanged Ends, Reinforced TFE Seats (RTFE)
  • 0200: 2-Inch Valve
  • 2R5S: 2R200 Spring Return Actuator
  • C: Intrinsically Safe Solenoid
  • C: Intrinsically Safe Limit Switch
1 - 2 weeks
$1,608.37USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Vented, 300#, 2", 316 Full-Port, SR, Low Temp, 80 psi, CSAl View More
  • F: Firesafe
  • D9: Direct Mount Flanged, Split Body, Valve Series
  • F3: 300# Flanged Ends
  • 200: 2" Valve Size
  • 2R5S: 2R200 Pneumatic Spring Return Actuator
  • B: Type 7 Solenoid 120 VAC
  • X: No Specials
  • V: Vented Ball for Up Stream
  • LT: Low Temp Seals and Lubricant
2 - 4 weeks
$1,653.94USD
$19.11 Shipping
A-T CONTROLS Series FD9 Ball Valve, Firesafe, Split Body 300# Flange, 3",Double-Acting,w/RTF,LowTemp View More
  • F: Firesafe
  • D9: Direct Mount Flanged
  • 3X: 300# Flanged Ends, Reinforced TFE Seats (RTFE)
  • 300: 3-Inch Valve
  • 2R6D: 2R300 Double Acting Actuator
  • X: No Specials
  • X: No Specials
  • LT: Low Temperature Seals
2 - 4 weeks
$1,997.23USD
$19.11 Shipping

Specifications

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 300#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 300#

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 300#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 300#

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 300#

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 300#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 300#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 300#

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 300#

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Full

Pressure Rating

  • psig: 740

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
  • MG1241
  • PTFE (Carbon-Filled Teflon)
  • RTFE (Reinforced Teflon)
  • TFM 1600
  • UHMWPE

Standard Features

  • 2-Piece Direct Mount Flanged
  • Fire-Safe

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel

Valve Type
