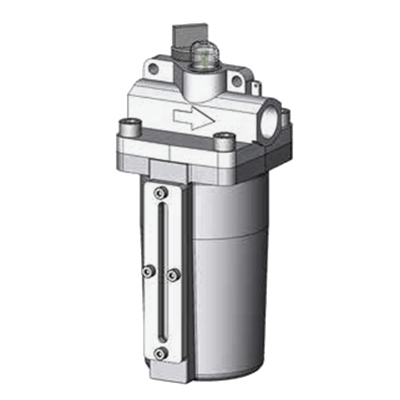

Images are representations only.

3575 Series Filter

Brand: Midland-ACS
A 316L Stainless Steel compressed air filter, designed to provide clean air for the actuation industries.
Features
  • Specifically Designed for Severe Environments
  • Manual or Auto-Drain
  • 25 micron Element Stainless Steel 316
  • Ambient Temperature Range -20° to 80° C (-4° to 176 F)
  • 316L Stainless Steel Construction
  • Mounting Brackets Supplied Fitted as Standard
  • Large Flow Paths (up to 45 Cv)
show more
A 316L Stainless Steel compressed air filter, designed to provide clean air for the actuation industries.
Features
  • Specifically Designed for Severe Environments
  • Manual or Auto-Drain
  • 25 micron Element Stainless Steel 316
  • Ambient Temperature Range -20° to 80° C (-4° to 176 F)
  • 316L Stainless Steel Construction
  • Mounting Brackets Supplied Fitted as Standard
  • Large Flow Paths (up to 45 Cv)

Specifications

Brand

Ambient Temperature Range

  • -20° to 80° C (-4° to 176° F)

Bowl

  • 21 ml (1.28"³)

Element

  • 25 micron 316 Stainless Steel

Enclosure, Body Material

  • 316L Stainless Steel
  • Nylon (Auto-Drain Version)
  • Polyoxymethylene (Auto-Drain Version)
  • Rubber (Auto-Drain Version)

Flow Capacity

  • 1-1/2"- 38 Cv
  • 2" - 1,590 scfm (2,700 m³/hour)
  • 2"- 45 Cv

Media

  • Air
  • Inert Gas
  • Sour Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1-1/2" NPT Female
  • 2" NPT Female

Seat / Seal Material

  • Nitrile

Supply Pressure - Maximum

  • bar: 20
  • kPa: 2,000
  • psi: 290

Supply Pressure Effect

  • At 6 bar (87 psi) Supply Pressure, 1 bar (14.5 psi) Pressure Drop
