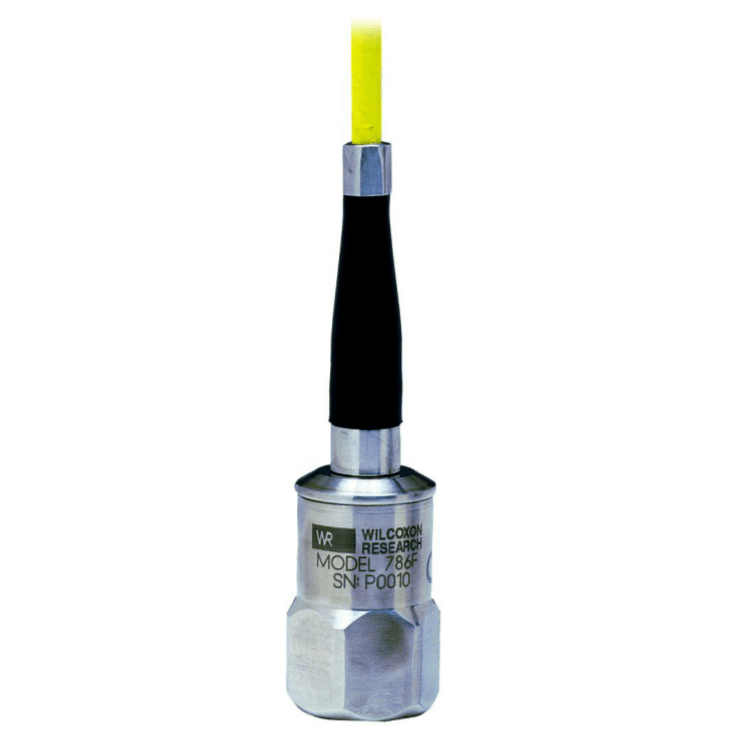

Model 786F General Purpose Integral Cable Accelerometer

Brand: Wilcoxon Sensing Technologies
Top exit, general-purpose accelerometer, 16 ft integral J9T2A cable, case isolated, 100 mV/g.
Features
  • Rugged design
  • Corossion resistant
  • Hermetic seal
  • IP68 case isolated
  • ESD protection
show more
Images are representations only.
Top exit, general-purpose accelerometer, 16 ft integral J9T2A cable, case isolated, 100 mV/g.
Features
  • Rugged design
  • Corossion resistant
  • Hermetic seal
  • IP68 case isolated
  • ESD protection

Specifications

Circuit Protection

  • ESD Protection

Electrical Connectors

  • Integral Cable (J9T2A, 16 feet, Blunt Cut)

Element

  • Sensing Element Design: PZT Ceramic, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP68

Frequency

  • Frequency Response (± 10%): 1 to 8,000 Hz
  • Frequency Response (± 3 dB): 0.5 to 13,000 Hz
  • Resonance Frequency: 30 kHz

Mounting

  • 1/4-28 UNF Tapped Hole

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 100, 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity, Maximum

Shock

  • Shock Limit: 5,000 G Peak

Static Pressure

  • Hydrostatic Pressure - psi: 100 (kPa: 689.5, bar: 6.89)

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 12 Vdc
