Description

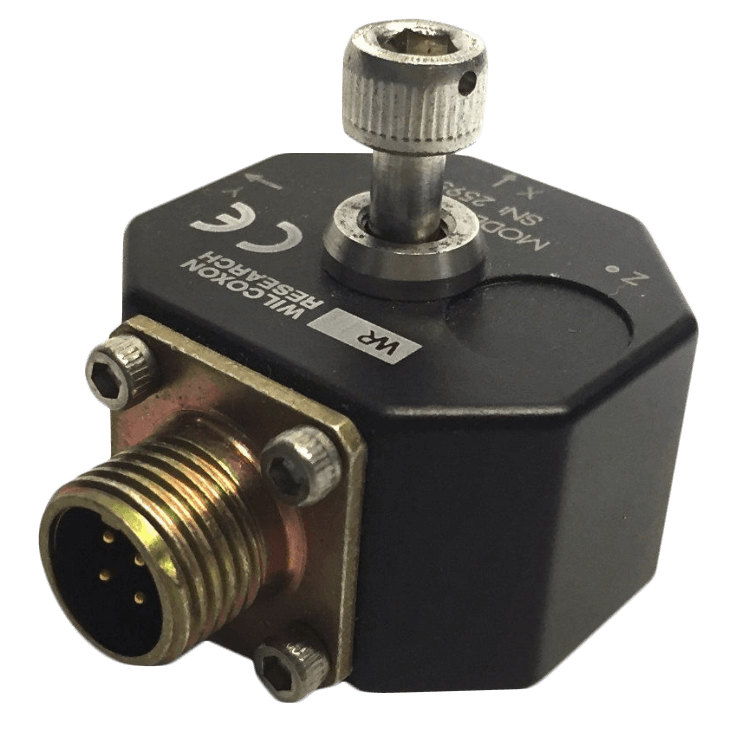

Side exit, triaxial, case isolated, 1/4-28 captive screw, 4 pin Bendix #PC01A-8-4P (p/n R9W), 100 mV/g, ±10% sensitivity tolerance.
Features
- Rugged design
- Easy to mount
- Fast and consistent data collection
- Reduced wiring for permanent installations
Specifications
Specifications
Approvals & Certifications
- ISO 9001
Electrical Connectors
- Cable (J9T4)
- Mating Connector: R9W
- Output Connector: 4-Pin, Bendix PC02A-8-4P
Enclosure, Body Material
- Hardcoated Aluminum
Frequency
- Frequency Response (All Channels, ± 10%): 2 to 2,000 Hz
Mounting
- 1/4-28 Captive Socket Head Screw
Noise
- Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 150 µg
- Electrical Noise, Equivalent G (Spectral: 1,000 Hz): 0.6 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 10 Hz): 20 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 100 Hz): 2.0 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1%
Output Impedence
- Maximum 100 Ω
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range: 50 G Peak
Seal Type
- Epoxy Seal
Sensitivity
- Base Strain Sensitivity: 0.0005 G/μstrain
- Electromagnetic Sensitivity, Equivalent G: 100 µg/Gauss
- Sensitivity, ± 10%, 25° C: 100 mV/g
- Transverse Sensitivity: Maximum 5% of Axial
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage: 12 Vdc
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

Model 787B Low Profile, General Purpose Accelerometer
Wilcoxon Sensing Technologies

Model 787BM8-M12 Low Profile, General Purpose Accelerometer
Wilcoxon Sensing Technologies

Model 787T General Purpose Accelerometer
Wilcoxon Sensing Technologies

Model 787F Low Profile, General Purpose Accelerometer
Wilcoxon Sensing Technologies

Model 786T General Purpose Accelerometer
Wilcoxon Sensing Technologies

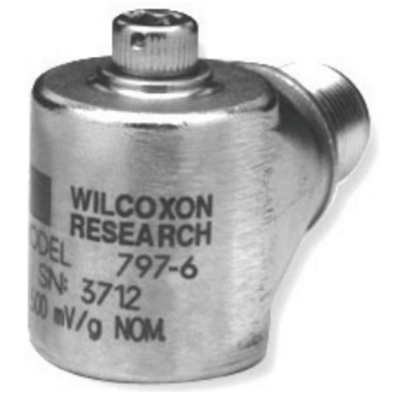

Model 797-6 High Temperature Low Profile General Purpose Accelerometer
Wilcoxon Sensing Technologies

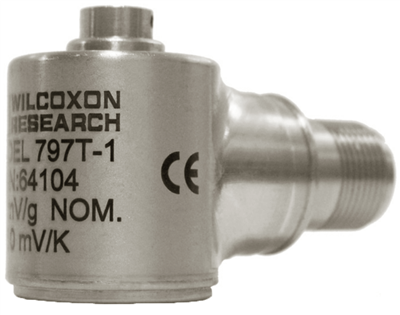

Model 797T-1 General Purpose Accelerometer
Wilcoxon Sensing Technologies

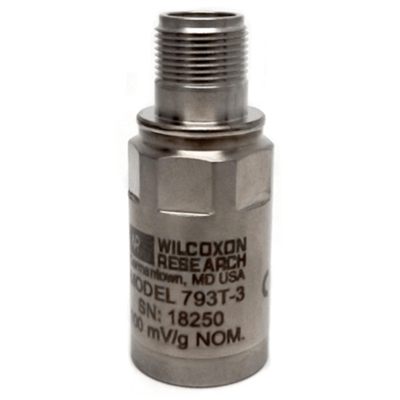

Model 793T-3 General Purpose Accelerometer
