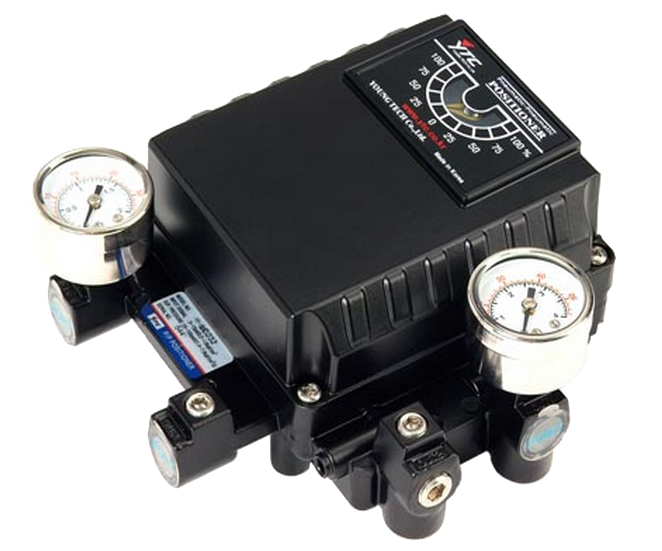

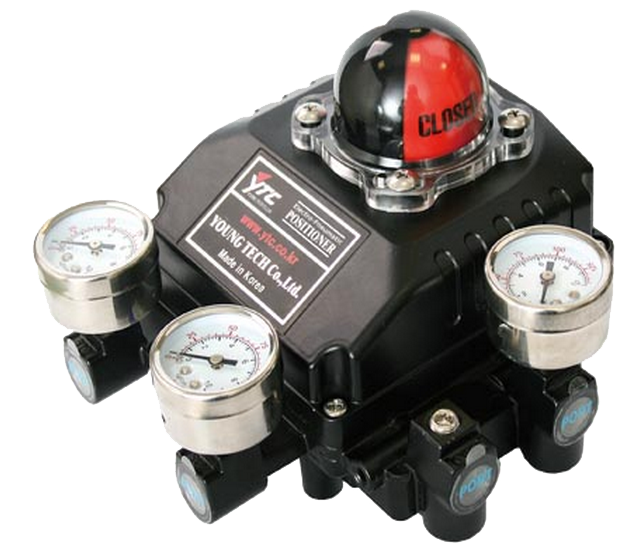

YT-1200R Rotary Pneumatic Positioner

Brand: Rotork YTC
The YT-1200R Pneumatic Positioner is used for pneumatic valve actuators by means of pneumatic controller or control systems with an output signal of 3 to 5 psi or split ranges.
Features
  • The product can operate normally in very extreme environment, such as vibration and temperature.
  • The durability has been proven after testing 2 million cycles at the minimum.
  • Response time is very short and accurate.
  • Simple part change can set 1/2 Split Range.
  • It is economical due to less air-consumption.
  • Direct / Reverse action can be set easily.
  • Zero & Span adjustment processes are simple.
  • Feedback connection is easy.
show more
The YT-1200R Pneumatic Positioner is used for pneumatic valve actuators by means of pneumatic controller or control systems with an output signal of 3 to 5 psi or split ranges.
Features
  • The product can operate normally in very extreme environment, such as vibration and temperature.
  • The durability has been proven after testing 2 million cycles at the minimum.
  • Response time is very short and accurate.
  • Simple part change can set 1/2 Split Range.
  • It is economical due to less air-consumption.
  • Direct / Reverse action can be set easily.
  • Zero & Span adjustment processes are simple.
  • Feedback connection is easy.
10 models matching criteria
YT-1200L-D-1-1-2-S
ROTORK YTC YT-1200L Series Pneumatic Positioner, Double-Acting, 10-150 mm Stroke, 1/4" NPT, IP66 View More
YT-1200L: Pneumatic Positioner - Linear

D: Double Acting

1: 10~40MM Lever Type

1: 01 Orifice Type

2: NPT (1/4") Connection

S: Ambient Temperature -20 deg C ~ 70 deg c (32 deg F ~ 158 deg F)



Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting
4 - 6 weeks
$452.55 USD
$15.52 Shipping
YT-1200L-S-1-1-2-S
ROTORK YTC YT-1200L Series Pneumatic Positioner, Single-Acting, 10-150 mm Stroke, 1/4" NPT, IP66 View More
  • YT-1200L: Pneumatic Positioner - Linear
  • S: Single Acting
  • 1: 10~40MM Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection
  • S: Ambient Temperature -20 deg C ~ 70 deg c (32 deg F ~ 158 deg F)



Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting
4 - 6 weeks
$452.55 USD
$15.52 Shipping
YT-1200R-D-1-1-2-S-0
ROTORK YTC YT-1200R Series Pneumatic Positioner, Double-Acting, 0-90° Stroke, 1/4" NPT, IP66 View More
  • YT 1200R: Pneumatic Positioner - Rotary
  • D: Double Acting
  • 1: M6x34L Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection
  • S: Ambient Temperature -20 deg C ~ 70 deg c (-4 deg F ~ 158 deg F)
  • 0: No Options

Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$452.55 USD
$15.52 Shipping
YT-1200R-S-1-1-2-S-0
ROTORK YTC YT-1200R Series Pneumatic Positioner, Single-Acting, 0-90° Stroke, 1/4" NPT, IP66 View More
YT 1200R: Pneumatic Positioner - Rotary

S: Single Acting

1: M6x34L Lever Type

1: 01 Orifice Type

2: NPT (1/4") Connection

S: Ambient Temperature -20 deg C ~ 70 deg c (-4 deg F ~ 158 deg F)

0: No Options



Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$452.55 USD
$15.52 Shipping
YT-1200R-S-1-3-2-S-0
ROTORK YTC YT-1200R Series Pneumatic Positioner, Single-Acting, 0-90° Stroke, 1/4" NPT, IP66 View More
  • YT 1200R: Pneumatic Positioner - Rotary
  • S: Single Acting
  • 1: M6x34L Lever Type
  • 3: No Orifice - High Flow
  • 2: NPT (1/4") Connection
  • S: Ambient Temperature -20 deg C ~ 70 deg c (-4 deg F ~ 158 deg F)
  • 0: No Options

Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$452.55 USD
$15.52 Shipping
YT-1200L-S-1-1-2-L
ROTORK YTC YT-1200L Series Pneumatic Positioner, Single-Acting, 10-150 mm Stroke, 1/4" NPT, Low Temperature View More
YT 1200L: Pneumatic Positioner - Linear

S: Single Acting Type

1: 10~40MM Lever Type

1: 01 Orifice Type

2: NPT (1/4") Connection Type

L: Ambient Temperature -40 deg C ~ 70 deg c (-40 deg F ~ 158 deg F)



Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$571.32 USD
$15.52 Shipping
YT-1200R-D-1-1-2-L-0
ROTORK YTC YT-1200R Series Pneumatic Positioner, Double-Acting, 0-90° Stroke, 1/4" NPT, Low Temperature View More
  • YT 1200R: Pneumatic Positioner - Rotary
  • D: Double Acting
  • 1: M6x34L Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection
  • L: Ambient Temperature -40 deg C ~ 70 deg c (-40 deg F ~ 158 deg F)
  • 0: No Options

Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$571.32 USD
$15.52 Shipping
YT-1200R-S-1-1-2-L-0
ROTORK YTC YT-1200R Series Pneumatic Positioner, Single-Acting, 0-90° Stroke, 1/4" NPT, Low Temperature View More
  • YT 1200R: Pneumatic Positioner - Rotary
  • S: Single Acting Type
  • 1: M6x34L Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection Type
  • L: Ambient Temperature -40 deg C ~ 70 deg c
  • 0: No Options

Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$571.32 USD
$15.52 Shipping
YT-1200L-D-1-1-2-L
ROTORK YTC YT-1200L Series Pneumatic Positioner, Double-Acting, 10-150 mm Stroke, 1/4" NPT, Low Temperature View More
  • YT 1200L: Pneumatic Positioner - Linear
  • D: Double Acting Type
  • 1: 10~40MM Lever Type
  • 1: 01 Orifice Type
  • 2: NPT (1/4") Connection Type
  • L: Ambient Temperature -40 deg C ~ 70 deg c (-40 deg F ~ 158 deg F)

Input Signal: 0.02-0.1MPa (0.2~1 bar)

Supply Pressure: 0.14~0.7MPa (1.4~7 bar)

Flow Capacity: 80LPM (sup=0.14MPa)

Material: Aluminum Diecasting

4 - 6 weeks
$588.40 USD
$15.52 Shipping
SPTM-5VRI11
ROTORK YTC Postition Transmitter, Rotary Motion, Standard Lever, LCD View More
  • SPTM-5V: Position Transmitter

    • Input Signal: 0~90º
    • Output Signal: 4~20mA DC
    • Supply Voltage: 9~28V DC
    • Material: Aluminum Diecasting
  • R: Rotary Motion Type
  • I: Explosion Protection - Ex ia IIC T5
  • 1: Lever Type - Standard
  • 1: With LCD
6 - 8 weeks
$707.16 USD
$15.52 Shipping

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° C)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 80 LPM

Hysteresis

  • ± 1% of Full Scale

Independent Linearity

  • ± 2% of Full Scale

Input Signal

  • bar: 0.2 to 1

NPT Connection

  • 1/4" NPT Female

Orifice Size

  • Phi 1
  • Phi 2

PT/PF/PS (JIS) Connection

  • 1/4" PT Female

Repeatability

  • ± 0.5% of Full Scale

Supply Pressure

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20.3 to 100
