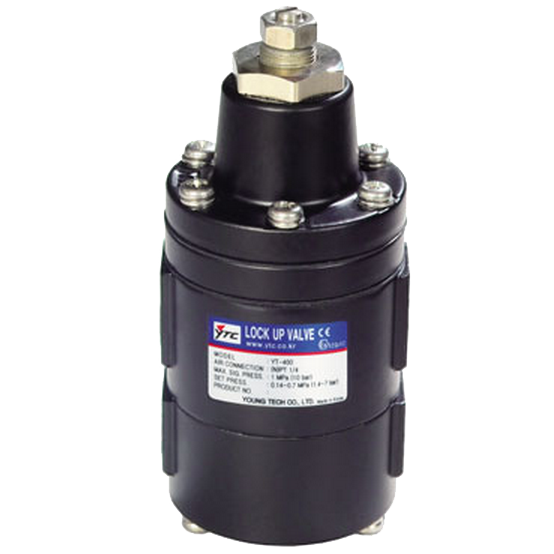

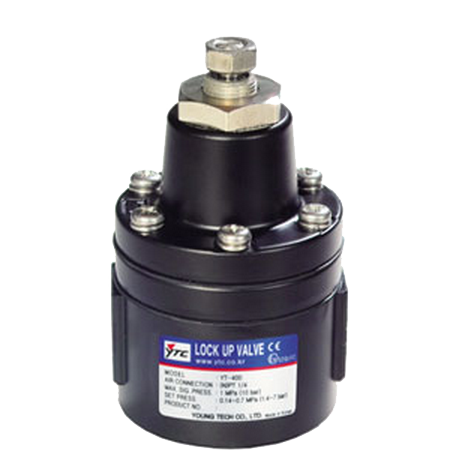

YT-400 Lock Up Valve

Brand: Rotork YTC
Request Information
Favorite
The YT-400 Lock Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than setting level to avoid system shutdown or damages to pipelines.
Features
  • Due to its compact size and light weight, lock up valve can be installed without a bracket.
  • It responds to less than 0.1kgf/㎠ pressure change.
  • Epoxy power coating resists against the corrosion.
  • 100 mesh screen filters small dust entering into the unit.
show more
The YT-400 Lock Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than setting level to avoid system shutdown or damages to pipelines.
Features
  • Due to its compact size and light weight, lock up valve can be installed without a bracket.
  • It responds to less than 0.1kgf/㎠ pressure change.
  • Epoxy power coating resists against the corrosion.
  • 100 mesh screen filters small dust entering into the unit.
Close

Displaying prices & availability for United States in USD. Change location or currency

YT-400-S-P-1
ROTORK YTC Model YT-400 Lock-Up Valve, 1/4" PT, Single-Acting, Aluminum Diecasting View More
  • YT-400: Smart Positioner
  • S: Single Acting
  • P: Connection Type: PT
  • 1: -20 ~ 70C
  • Signal Pressure: 0.14 ~ 0.7 MPa (1.4 ~ 7 bar)
  • Flow Capacity (Cv): 0.9
  • Material: Aluminum Diecasting
4 - 6 weeks
$162.52USD
$19.03 Shipping
YT-405-S-N-2
ROTORK YTC Model YT-405 Lock-Up Valve, 1/4" NPT, Single-Acting View More
  • YT-405: Lock Up Valve
  • S: Single Acting
  • N: NPT
  • 2: -20 to 120C Ambient Temperature
  • Max. Supply Pressure: 1MPa (10 bar)
  • Lock Up Pressure: Max 1MPa (10 bar)
  • Differential Pressure: Below 0.01MPa (0.1 bar)
  • Flow Capacity (Cv): 0.9
  • Signal Pressure: 0.14~0.7 MPa (1.4~7 bar)
  • Signal Connection: NPT 1/4"
  • Material: Stainless Steel 316
4 - 6 weeks
$751.85USD
$19.03 Shipping
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • Aluminum

Flow Capacity

  • 0.9 Cv

Lock-Up Pressure

  • psig: 105.5 (bar: 7, MPa: 0.7)

NPT Connection

  • 1/4” NPT Female

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20 to 100

PT/PF/PS (JIS) Connection

  • 1/4” PT Female

Supply Pressure - Maximum

  • bar: 10
  • MPa: 1
  • psi: 145
