Field-Wireable Connector

Brand: Turck

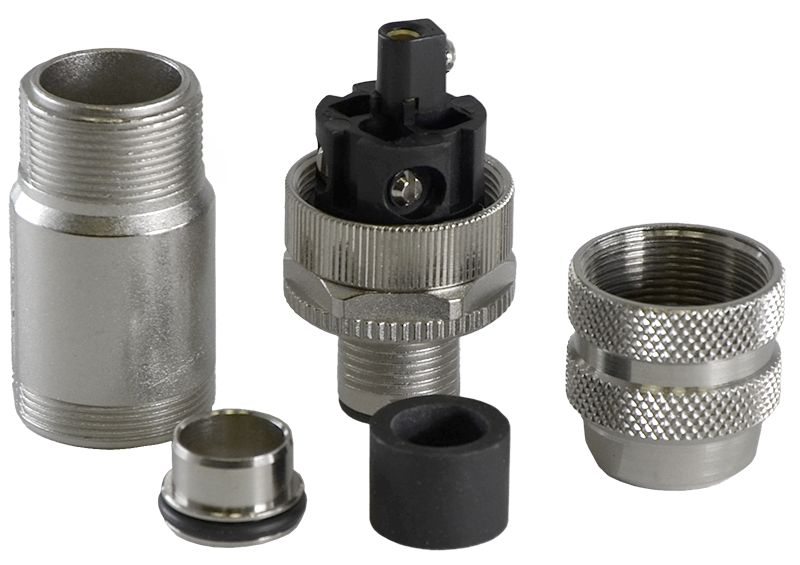

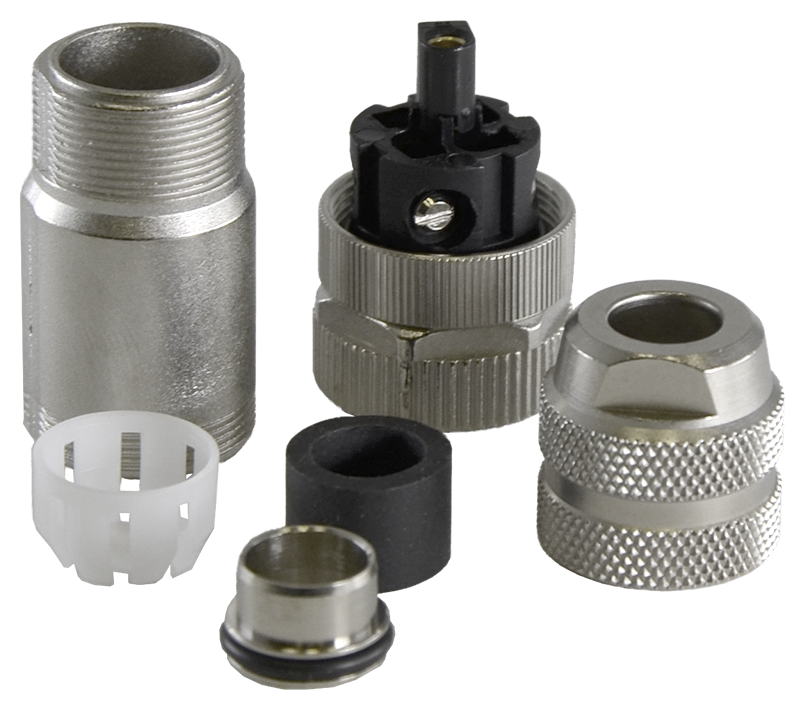

The CMB 8151-0/CMBS 8151-0 is a M12 eurofast® shielded Field-wireable Connector made of brass with nickel plated finish, screw terminal.

This sensor connector features PG9 cable gland and accepts up to 18AWG conductors. This fully shielded connector mates with standard key 5-pin cordsets and receptacles.
show more
The CMB 8151-0/CMBS 8151-0 is a M12 eurofast® shielded Field-wireable Connector made of brass with nickel plated finish, screw terminal.

This sensor connector features PG9 cable gland and accepts up to 18AWG conductors. This fully shielded connector mates with standard key 5-pin cordsets and receptacles.
55 models matching criteria
B 4161-0 5-13MM
TURCK minifast Field-Wireable Connector, 6-Pin, Female, 13mm PG Thread Cable Gland, NCNR View More
  • TURCK minifast Field-Wireable Connector, 6-pin, Female, 13mm PG Thread Cable Gland, NCNR
1 In Stock
Non-Cancellable / Non-Refundable
$59.73 USD
$15.51 Shipping
B 8141-0
TURCK eurofast Field-Wireable Connector, 4-Pin, Female, 7mm PG Thread Cable Gland, NCNR
Out of Stock
$26.37 USD
$15.51 Shipping
B 8241-0
TURCK M12 eurofast Field-Wireable Connector, 4-Pin, Right Angle Female,7mm PG Thread CableGland,NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$26.37 USD
$15.51 Shipping
BS 8141-0
TURCK M12 eurofast Field-Wireable Connector, 4-Pin Male, 7mm PG Thread Cable Gland, NCNR View More
  • Housing Material / Plating: Nylon/Black
  • Contact Material / Plating: Brass/Gold
  • Coupling Nut Material / Plating: Brass/Nickel
  • Rated Current [A]: 4.0 A
  • Rated Volume [V]: 250 V
  • Maximum Wire Size: 18 AWG
  • Cable Grip Range: 4-6mm
  • Temperature Rating: -25°C to +85°C (-13°F to +185°F)
  • Protection Class: IEC IP67
  • Termination Type: Screw Terminal
2 - 8 weeks
Non-Cancellable / Non-Refundable
$26.37 USD
$15.51 Shipping
B 8141-0/PG 9
TURCK minifast Field-Wireable Connector, 4-Pin, Female, 9mm PG Thread Cable Gland, NCNR View More
  • TURCK minifast Field-Wireable Connector, 4-Pin, Female, 9mm PG Thread Cable Gland, NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$26.37 USD
$15.51 Shipping
B 8241-0/PG 9
TURCK M12 eurofast Field-Wireable Connector, 4-Pin, Right Angle Female,7mm PG Thread CableGland,NCNR View More
  • 4-Pin,
  • Right Angle Female,
  • 7mm PG Thead Cable Gland,
  • NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$26.37 USD
$15.51 Shipping
BS 8241-0/PG 9
TURCK M12 eurofast Field-Wireable Connector, 5-Pin, Right Angle Male, 9mm PG Thread Cable Gland,NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$26.37 USD
$15.51 Shipping
BS 5136-0
TURCK M8 picofast Field-Wireable Connector, 3-Pin, Male, Ni-Plated Brass
2 - 8 weeks
Non-Cancellable / Non-Refundable
$31.03 USD
$15.51 Shipping
FW-ERKPM0426-SA-P-0408
TURCK Field-Wireable Connector, Female, M12 x 1, Straight, A-code. IP65, IP67 (when coupled) View More
  • Connector A: M12 x 1, Straight, A-Code
  • Contacts: Bronze, CuSn, Gold-plated
  • Contact Carriers and Connector Body: Plastic, PA 6.6, Black
  • Coupling Nut: Die-cast Zinc, GD-Zn,Nickel-plated
  • Connector Seal, Panel Seal: Plastic, NBR
  • Tightening Torque (range): 0.4 ... 0.4 Nm (note max torque of mating connector)
  • External Diameter of the Cable: min. 4 - 8 mm
  • Core cross-section/Clamping ability: 0.14 - 0.75 mm²
  • Connection mode: Push-in connection
  • Mechanical Life: >100 Mating cycles
  • Rated Voltage: 250 V
  • Current: 4A
  • Insulation Resistance: ≥ 10Ω
5 - 7 weeks
$32.58 USD
$15.51 Shipping
B 8151-0/PG9
TURCK minifast Field-Wireable Connector, 5-Pin, Female, 9mm PG Thread Cable Gland, NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$34.13 USD
$15.51 Shipping

Specifications

Brand

Mechanical Connection

  • M12

Pins

  • 5

Design

  • Female (CMBS) or Male (CMB) Connector

Connection Mode

  • Screw/Clamp

Max Wire Gauge

  • 18 Rated

Voltage

  • 250

Current

  • 4A

Approvals

  • RoHS

Environmental Protection

  • IP67

Temperature Rating

  • 85°C

Communication

  • Eurofast
