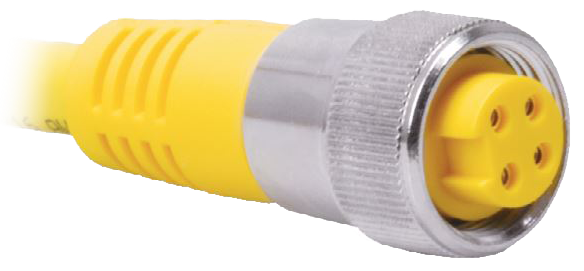

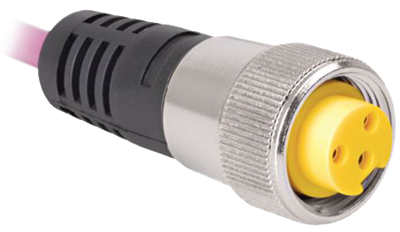

Images are representations only.

minifast Double-Ended Cordset

Brand: Turck, Inc
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
      • CPE, Rubber Jacket
      • PUR, Rubber Jacket
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
      • CPE, Rubber Jacket
      • PUR, Rubber Jacket
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
Close

Specifications

Brand

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 12-Pin
  • 2-Pin
  • 3-Pin
  • 5-Pin
  • 6-Pin

Connection Style

  • minifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 90° C (-40° to 194° F)

Version / Leadwires

  • 126: 12 x 16 AWG OG, BU, WH / BL, RD / BK, GN / BK, OG / BK, BU / BK, WK / WH, GN, RD, WH, BK
  • 12-Wire
  • 26: 2 x 16 AWG WH, BK
  • 2-Wire
  • 31: 3 x 18 AWG BK, BN, BU
  • 35: 3 x 16 AWG GN RD/BK, RD/WH
  • 36: 3 x 16 AWG GN, BK, WH
  • 3-Wire
  • 50: 5 x 18 AWG BK, BU, GN/YE, BN, WH
  • 5-Wire
  • 61: 6 x 18 GN, WH, BU, GY, YE, BN
  • 6-Wire
