C Style Filter Regulator

Brand: Fairchild Industrial Products
Rotork Fairchild’s new FR air preparation packages meet industry demands with extreme high flow and superior 5 micron filtration. In addition metal bowls and gauges are standard for C Series FR products.

These compact integral filter products provide dependable performance with our world class 2 year warranty for protection of your downstream instrumentation or equipment. When your application demands the best, insist on the C Series FR and Filter Products.
Features
  • Highest Flow Capacities
  • 5 Micron Filters
  • Metal Bowls
  • Modular or Pipe Mount
  • Quick Disconnect Bowls
show more

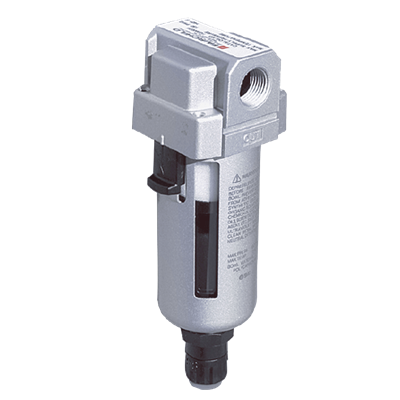

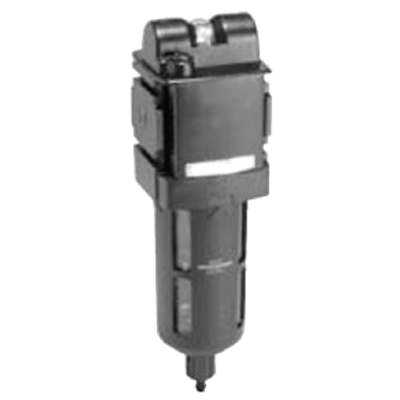

Images are representations only.
Rotork Fairchild’s new FR air preparation packages meet industry demands with extreme high flow and superior 5 micron filtration. In addition metal bowls and gauges are standard for C Series FR products.

These compact integral filter products provide dependable performance with our world class 2 year warranty for protection of your downstream instrumentation or equipment. When your application demands the best, insist on the C Series FR and Filter Products.
Features
  • Highest Flow Capacities
  • 5 Micron Filters
  • Metal Bowls
  • Modular or Pipe Mount
  • Quick Disconnect Bowls

C Style

Size

Output Pressure

Port Size

Thread Type

Elastomers

Relief

Drain

Bowl

Gauge

Specifications

Bonnet Material

  • Nylon/Acetal

BSP Connection

  • 1/2" BSPP
  • 1/4" BSPP
  • 3/4" BSPP
  • 3/8" BSPP

Diaphragm Material

  • Nitrile
  • Zinc

Drain, Vent Position

  • Automatic Drain
  • Manual Drain

Elastomers

  • Nitrile

Enclosure, Body Material

  • Zinc

Filter

  • 5 microns

Flow Capacity

  • 117 scfm (199 m³/hour)
  • 121 scfm (206 m³/hour)
  • 140 scfm (255 m³/hour)
  • 165 scfm (280 m³/hour)
  • 175 scfm (297 m³/hour)
  • 42 scfm (71 m³/hour)
  • 88 scfm (150 m³/hour)

Gauge Connection

  • 1/4" NPT
  • 1/8" NPT

Materials of Construction

  • Acetal - Valve Assembly
  • Aluminum - Bowl
  • Brass - Valve Assembly
  • Metal - Bowl

NPT Connection

  • 1/2" NPT
  • 1/4" NPT
  • 3/4" NPT
  • 3/8" NPT

Pressure Range

  • bar: 0 to 0.009
  • kPa: 0 to 861.8
  • psig: 0 to 125

Pressure Rating

  • psig: 250 (kPa: 1,724, bar: 17.2)

Relief

  • Relieving

Spring Material

  • Steel

Supply Pressure

  • psi: 100 (kPa: 689.5, bar: 7)

Temperature Range

  • 0° to 80° C (32° to 176° F)
