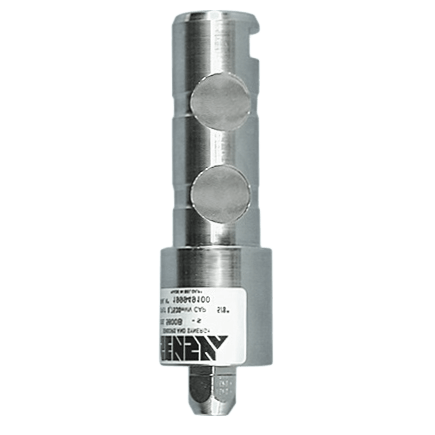

5600 Custom Made Load Pin

Brand: Sensy S.A.
Request a Quote
Favorite
Custom made load pin designed to be installed at the same place of a common axle without big change of the existing mechanical environment. Verison model 5000 only available with a diameter smaller or equal than 39 mm and with axial cable.
Features
  • CE certified for hoisting applications
  • Sturdy Design
  • Stainless steel
  • Protection IP 65
  • Cable length: 6 m
  • Available options (non exhaustive list):
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • High service temperature (180° C)
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
show more
Images are representations only.
Custom made load pin designed to be installed at the same place of a common axle without big change of the existing mechanical environment. Verison model 5000 only available with a diameter smaller or equal than 39 mm and with axial cable.
Features
  • CE certified for hoisting applications
  • Sturdy Design
  • Stainless steel
  • Protection IP 65
  • Cable length: 6 m
  • Available options (non exhaustive list):
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • High service temperature (180° C)
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
Close

Specifications

Brand

Applications

  • Force Measurement on Cylinders/Industrial Weighing
  • Hoisting Devices & Crane's Security in Combination with a Load Limitation Electronics

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE Hoisting
  • CSA
  • IECEx

Cable Length

  • 20 feet (6 meters)

Capacity

  • 0.5 to 6.3 T

Communication

  • RS-232C, RS-485
  • USB

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Load

  • Breaking Load: > 300% to > 500% of Full Scale
  • Permissible Dynamic Loading: 50% to 75% of Full Scale

Load Limit

  • 150% of Full Scale
  • 200% of Full Scale

Repeatability

  • Error: <± 0.25% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • 1 mV/V (SL-Hoist)
  • 1.5 mV/V (SL-Force)
  • Sensitivity Tolerance: <± 0.5%

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 100% of Full Scale
  • 150% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.2% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
Close

Review this product and let us know your experiences

Write a Review
Close

Similar Products

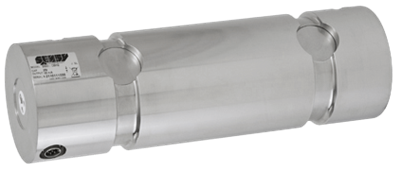

5000 Custom Load Pin
