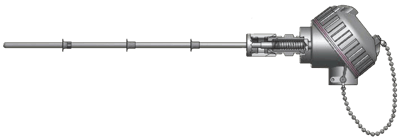

MgO Thermocouple Pipe Wells with Self-Contained, Spring-Loaded Elements and Optional Transmitters

Brand: Pyromation
Request Information
MgO-insulated pipe well assemblies can be used as a less expensive alternative to thermowell assemblies in a number of low-pressure and high-temperature applications including: Incineration, Boilers, Power Generation, Low-velocity Piping Systems and Holding Tanks.
show more
MgO-insulated pipe well assemblies can be used as a less expensive alternative to thermowell assemblies in a number of low-pressure and high-temperature applications including: Incineration, Boilers, Power Generation, Low-velocity Piping Systems and Holding Tanks.
Close
Close

Specifications

Brand

Thermocouple Type

  • Type J, K, E, T, N

Sheath Diameter

  • 1/4”

Sheath Material

  • Alloy 600
  • 316 Stainless Steel

Junction Type

  • Ungrounded
  • Grounded

Pipe Material

  • Alloy 600, 601
  • 446 Stainless Steel
  • 316 Stainless Steel
  • Carbon Steel
  • HR 160

Pipe Size

  • 1/2” NPT, 3/4” NPT

Welded Fitting

  • 2” 150# Classraised-face flange
  • 1-1/2” 150# Classraised-face flange
  • 1” 150# Class raised-face flange
  • 2” NPT welded bushing
  • 1-1/2” NPT welded bushing
  • 1-1/4” NPT welded bushing
  • 1” NPT welded bushing
  • 3/4” NPT welded bushing

Head Material

  • Aluminum
  • Case Iron
  • 316L Stainless Steel
