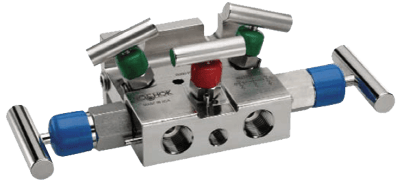

5030/5130 Series Manifold Valve

Brand: Noshok, Inc
Features
  • Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
  • Flare Pattern™ valve configuration provides maximum clearance for fingers during operation
  • Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
  • Available in block, single flange, or double flange connection for remote or direct installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 5030 series hard seat valves have 10,000 psi pressure rating at 200° F
  • 5130 series soft seat/tip valves have 6,000 psi pressure rating at 200° F
  • 5130 series valves also feature a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning on the block valves
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust caps for bonnets and stems (non-packing)
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
  • Two static (test) ports, color coded vinyl bonnet and stem dust cap, patented soft seat/tip stem design on equalizing and vent valves
Options
  • Panel Mountings
  • O-Ring Materials
  • Handles
  • Packings
  • Regulating Stem
  • Stem Tips
show more
Features
  • Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
  • Flare Pattern™ valve configuration provides maximum clearance for fingers during operation
  • Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
  • Available in block, single flange, or double flange connection for remote or direct installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 5030 series hard seat valves have 10,000 psi pressure rating at 200° F
  • 5130 series soft seat/tip valves have 6,000 psi pressure rating at 200° F
  • 5130 series valves also feature a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning on the block valves
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust caps for bonnets and stems (non-packing)
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
  • Two static (test) ports, color coded vinyl bonnet and stem dust cap, patented soft seat/tip stem design on equalizing and vent valves
Options
  • Panel Mountings
  • O-Ring Materials
  • Handles
  • Packings
  • Regulating Stem
  • Stem Tips
2 models matching criteria
NOSHOK 5130 Series 5-Valve Manifold, Soft Seat, FlangexFlange, 316 SS, Flare Pattern, 0.187"Orifice show more
  • 5: Series: 5-Valve
    • Orifice size: 0.187"
  • 1: Seats: Soft Seat/Tip
  • 3: Process Type: Natural Gas Flow
  • 0: Connection: Flange
  • MMS: Valve Type: Flange x Flange, Electropolished 316 Stainless Steel
    • NACE MR0175/ISO 15156-3
  • FP: Body Configuration: Flare Pattern
  • Stem Seal & Type
    • 316 Stainless Steel stem with FKM O-ring and PTFE back-up ring below the threads
  • Pressure Ratings: 6,000 psi @ 200 °F
  • Flow Coefficient: CV 0.76
  • Features a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning of the block valves
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
300+ In Stock
Non-Cancellable / Non-Refundable
$552.70USD $237.61USD
NOSHOK 5130 Series 5-Valve Manifold, Soft Seat, Flange x Flange, Steel, Flare Pattern, 0.187"Orifice show more
  • 5: Series: 5-Valve
    • Orifice size: 0.187"
  • 1: Seats: Soft Seat/Tip
  • 3: Process Type: Natural Gas Flow
  • 0: Connection: Flange
  • MMC: Valve Type: Flange x Flange, Zinc-Nickel plated Carbon Steel
  • FP: Body Configuration: Flare Pattern
  • Stem Seal & Type
    • 316 Stainless Steel stem with FKM O-ring and PTFE back-up ring below the threads
  • Pressure Ratings: 6,000 psi @ 200 °F
  • Flow coefficient: CV 0.76
  • Features a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning of the block valves
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
100+ In Stock
Non-Cancellable / Non-Refundable
$333.54USD $136.51USD

Specifications

Enclosure, Body Material

  • Electro-Polished 316 Stainless Steel
  • Zinc-Nickel-Plated Carbon Steel

Flange Material

  • 316L Stainless Steel
  • Steel

Flow Capacity

  • Hard Seat: Cv 0.44
  • Soft Seat/Tip: Cv 0.76

Handle Assembly Material

  • 1-3/8”, 1-3/4” Phenolic

Mounting

  • Panel Mount

NPT Inlet

  • 1/2” NPT Female

NPT Outlet

  • 1/2” NPT Female

O-Ring Material

  • Ethylene Propylene (EPR)
  • FFKM (Kalrez 3018 or Equivalent)
  • FKM
  • NBR

Options

  • Handle
  • Regulating Stem & Stem Tips

Orifice Size

  • 0.187”

Packing Material

  • Grafoil
  • PTFE

Pressure Rating

  • Hard Seat - psi: 10,000 (kPa: 68,948, bar: 689.5) at 93° C (200° F)
  • Soft Seat - psi: 6,000 (kPa: 41,370, bar: 413.7) at 93° C (200° F)

Seat / Seal Material

  • 304L Stainless Steel
  • PCTFE
  • PEEK
  • Steel

Stem Material

  • 316 Stainless Steel
  • 440C Stainless Steel
  • Acetal
  • Carbide
  • Ceramic
  • Delrin
  • Monel
  • PCTFE
  • PEEK

Stem Type

  • Non-Rotating
  • Regulating
  • Regulating Hard
  • Standard Ball Stem

Valves

  • Five
