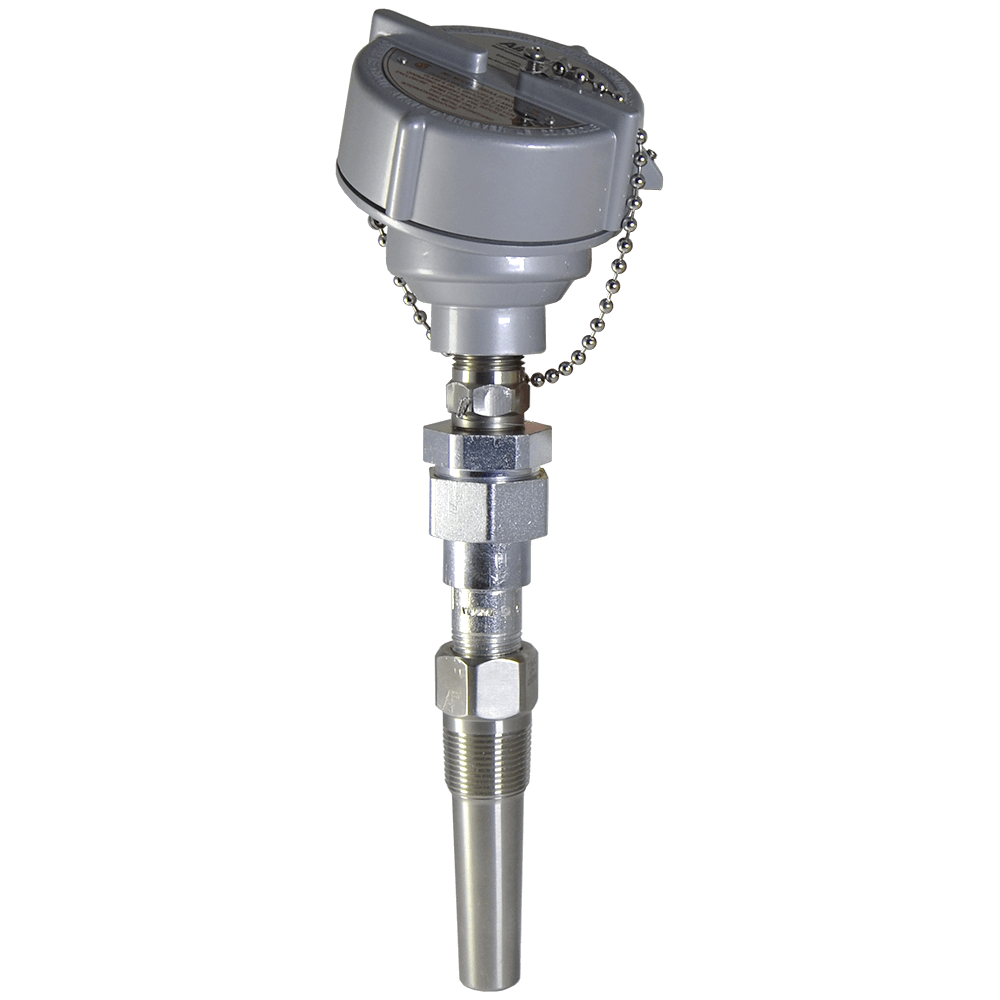

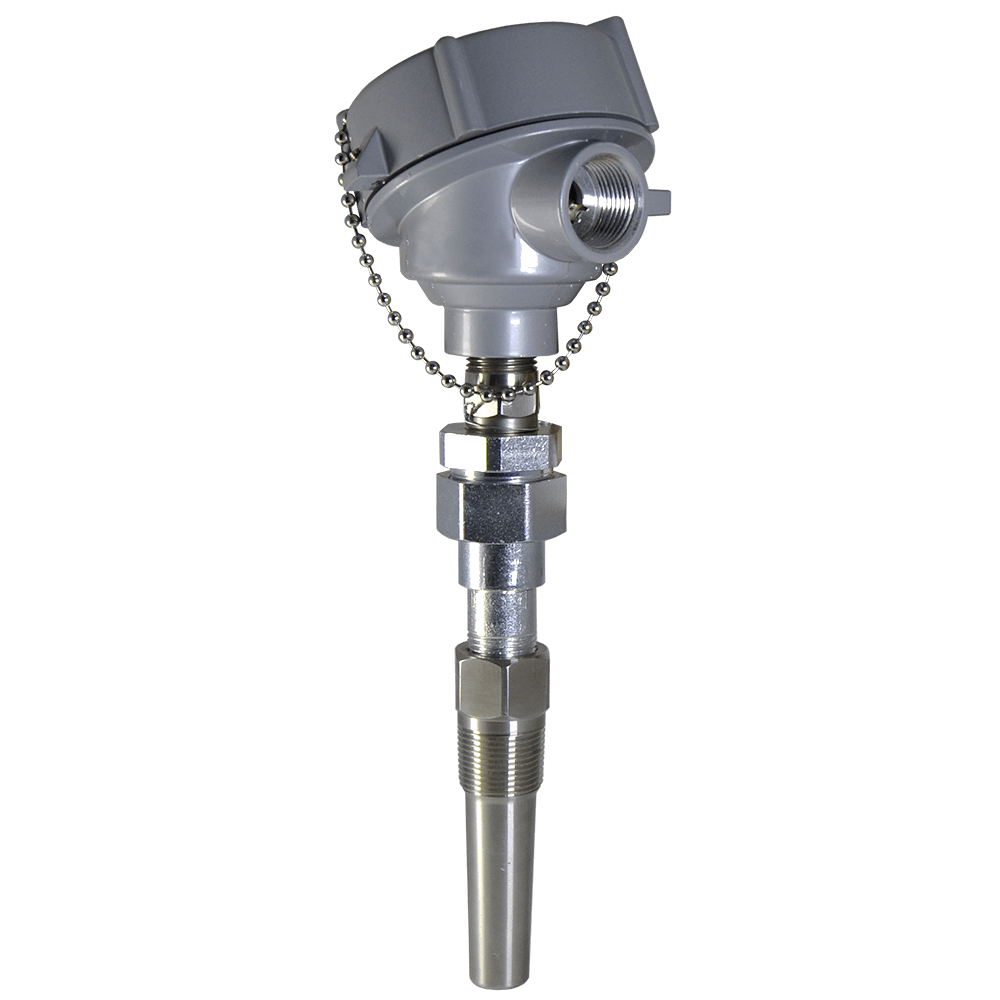

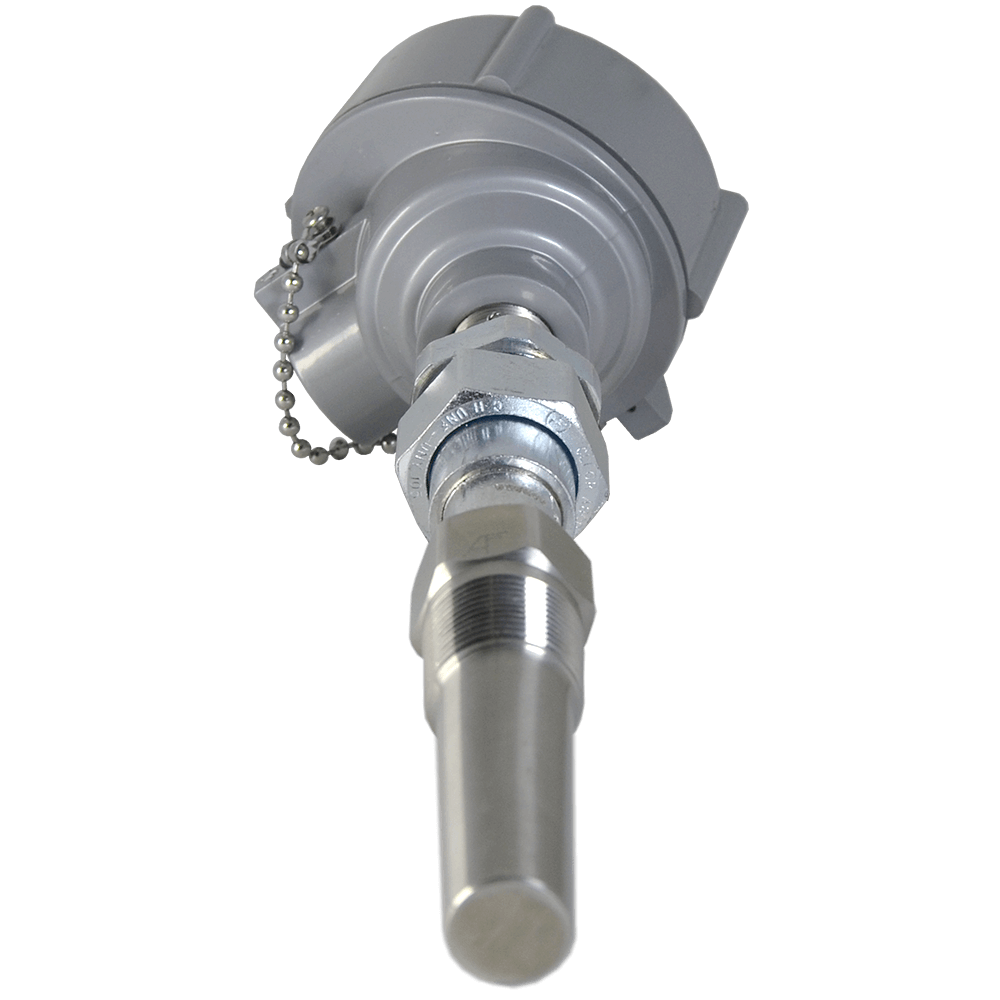

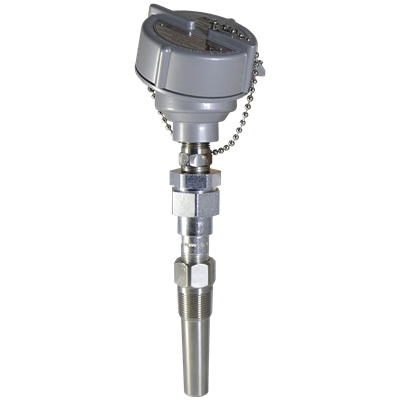

8T Tapered Thermowell Assembly

Brand: Aircom Instrumentation Ltd.
Tapered Thermowell: Custom Lengths
  • Process Connection: 3/4" NPT & 1" NPT
  • Materials: 304 or 316 Stainless Steel
  • RTD Rating:
    • Low Temperature -200° to 204° C (-328 to 399° F)
    • High Temperature / High Vibration -200° to 850° C (-328° to 1,562° F)
  • Connection Heads
    • 316 Stainless Steel
    • Cast Aluminum
    • Teflon Coated Aluminum
  • Lead Wire Termination
    • 3 Wire with Jumper & Lugs
    • 3 Wire Bare Ended
show more
Images are representations only.
Tapered Thermowell: Custom Lengths
  • Process Connection: 3/4" NPT & 1" NPT
  • Materials: 304 or 316 Stainless Steel
  • RTD Rating:
    • Low Temperature -200° to 204° C (-328 to 399° F)
    • High Temperature / High Vibration -200° to 850° C (-328° to 1,562° F)
  • Connection Heads
    • 316 Stainless Steel
    • Cast Aluminum
    • Teflon Coated Aluminum
  • Lead Wire Termination
    • 3 Wire with Jumper & Lugs
    • 3 Wire Bare Ended

The Part Numbers and SKU's listed may not currently be in stock. Please find the part number you are looking for and request a quote to determine availability

1 - 48 of 55 Part Numbers
AI AI-0008T-L-1.75-1.5-SP-6-LT-X-3W-X
AI AI-0008T-L-1.75-1.5-SP-6-LT-X-3W-X
AIRCOM RTD Assembly, Tapered Thermowell, 1.5" U, SP=1/2" NPT, 316 SST, 204°C Max, No Connection Head, 3-Wire Bare Ended, No Terminal Block

Overview

AI-0008T-L:  Tapered RTD Assembly

1.75:  Tapered

1.5: U Length in Inches

SP: Process Thread, 1/2" NPT

6: 316SS Material

LT: 204 deg C Max RTD Rating (Low Temp)

X: No Connection Head

3W: 3 Wire Bare Ended Lead Wire Termination

X: Terminal Block - Not required
AI AI-0008T-L-1.75-10-SP-6-VT-X-3W-X
AI AI-0008T-L-1.75-10-SP-6-VT-X-3W-X
AIRCOM RTD Assembly, Tapered Thermowell, 10" U, SP=1/2" NPT, 316 SST, 850°C Max, No Connection Head, 3-Wire Bare Ended, No Terminal Block

Overview

AI-0008T-L:  Tapered RTD Assembly

1.75:  Tapered

10: U Length in Inches

SP: Process Thread, 1/2" NPT

6: 316SS Material

VT: 850 deg C Max RTD Rating

X: No Connection Head

3W: 3 Wire Bare Ended Lead Wire Termination

X: Terminal Block - Not required
AI AI-0008T-L-1.75-2-SP-6-LT-X-3W-X
AI AI-0008T-L-1.75-2-SP-6-LT-X-3W-X
AIRCOM RTD Assembly, Tapered Thermowell, 2" U, SP=1/2" NPT, 316 SST, 204°C Max, No Connection Head, 3-Wire Bare Ended, No Terminal Block

Overview

AI-0008T-L:  Tapered RTD Assembly

1.75:  Tapered

2: U Length in Inches

SP: Process Thread, 1/2" NPT

6: 316SS Material

LT: 204 deg C Max RTD Rating (Low Temp)

X: No Connection Head

3W: 3 Wire Bare Ended Lead Wire Termination

X: Terminal Block - Not required
AI-0008T11.5-1.75-6-3-6VT-X
AI-0008T11.5-1.75-6-3-6VT-X
AIRCOM RTD Assembly, Tapered Thermowell, 6" U, 3/4" NPT, 316 SST, 850°C Max, No Connection Head
AI-0008T-11.5-6.5-4-6
AI-0008T-11.5-6.5-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 6.5" U, 1" NPT, 316 SST
AI-0008T-11-6-2-6
AI-0008T-11-6-2-6
AIRCOM RTD Assembly, Tapered Thermowell, 6" U, 1/2" NPT, 316 SST
AI-0008T-11-6-3-4
AI-0008T-11-6-3-4
AIRCOM RTD Assembly, Tapered Thermowell, 6" U, 3/4" NPT, 304 SST
AI-0008T-11-6-3-6
AI-0008T-11-6-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 6" U, 3/4" NPT, 316 SST
AI-0008T-11-6-3-6-SP
AI-0008T-11-6-3-6-SP
AIRCOM RTD Assembly, Thermowell, 6" U, 3/4" NPT, 316 SST, SP=3/8 O.D Straight Thermowell
AI-0008T-11-6-4-6
AI-0008T-11-6-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 6" U, 1" NPT, 316 SST
AI-0008T-11-6-4-6-SP
AI-0008T-11-6-4-6-SP
AIRCOM RTD Assembly, Thermowell, 6" U, 1" NPT, 316 SST, SP=Straight Thermowell
AI-0008T-12.5-7.5-3-6
AI-0008T-12.5-7.5-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 7.5" U, 3/4" NPT, 316 SST
AI-0008T-12-7-4-6
AI-0008T-12-7-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 7" U, 1" NPT, 316 SST
AI-0008T-13-8-3-6
AI-0008T-13-8-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 8" U, 3/4" NPT, 316 SST
AI-0008T-13-8-4-6
AI-0008T-13-8-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 8" U, 1" NPT, 316 SST
AI-0008T16-1.75-10.536VT2AL
AI-0008T16-1.75-10.536VT2AL
AIRCOM RTD Assembly, Tapered Thermowell, 10.5" U, 3/4" NPT, 316 SST, 850°C Max, Aluminum Connection Head
AI-0008T-17-12-3-6
AI-0008T-17-12-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 12" U, 3/4" NPT, 316 SST
AI-0008T-17-12-3-6-SP
AI-0008T-17-12-3-6-SP
AIRCOM RTD Assembly, Thermowell, 12" U, 3/4" NPT, 316 SST, SP=Straight Thermowell
AI-0008T-17-12-4-6
AI-0008T-17-12-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 12" U, 1" NPT, 316 SST
AI-0008T-18.5-13.5-4-6
AI-0008T-18.5-13.5-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 13.5" U, 1" NPT, 316 SST
AI-0008T-20.5-15.5-3-6
AI-0008T-20.5-15.5-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 15.5" U, 3/4" NPT, 316 SST
AI-0008T-20-15-4-6
AI-0008T-20-15-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 15" U, 1" NPT, 316 SST
AI-0008T-25-20-4-6
AI-0008T-25-20-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 20" U, 1" NPT, 316 SST
AI-0008T-6.5-1.5-3-6
AI-0008T-6.5-1.5-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 1.5" U, 3/4" NPT, 316 SST
AI-0008T-6.5-1.5-4-6
AI-0008T-6.5-1.5-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 1.5" U, 1" NPT, 316 SST
AI-0008T-6-1-3-6
AI-0008T-6-1-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 1" U, 3/4" NPT, 316 SST
AI-0008T-7.5-2.5-3-6
AI-0008T-7.5-2.5-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 2.5" U, 3/4" NPT, 316 SST
AI-0008T-7.5-2.5-4-4
AI-0008T-7.5-2.5-4-4
AIRCOM RTD Assembly, Tapered Thermowell, 2.5" U, 1" NPT, 304 SST
AI-0008T-7.5-2.5-4-6
AI-0008T-7.5-2.5-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 2.5" U, 1" NPT, 316 SST
AI-0008T-7-2-3-6
AI-0008T-7-2-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 2" U, 3/4" NPT, 316 SST
AI-0008T-7-2-4-4
AI-0008T-7-2-4-4
AIRCOM RTD Assembly, Tapered Thermowell, 2" U, 1" NPT, 304 SST
AI-0008T-7-2-4-6
AI-0008T-7-2-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 2" U, 1" NPT, 316 SST
AI-0008T-7-2-SP-6
AI-0008T-7-2-SP-6
AIRCOM RTD Assembly, Tapered Thermowell, 2" U, SP=1/2" NPT, 316 SST
AI-0008T-7-X-X-X
AI-0008T-7-X-X-X
AIRCOM RTD Assembly, No Thermowell, 7" L
AI-0008T8.25-1.75-3-6VTX-3J
AI-0008T8.25-1.75-3-6VTX-3J
AIRCOM RTD Assembly, Tapered Thermowell, 1.75" U, 3/4" NPT, 316 SST, 850°C Max, No Connection Head, 3-Wire RTD with Jumper & Lugs

Overview

  • RTD Assembly
  • 3-Wire with Jumper and Spade Terminals
  • 100 Ohm Platinum RTD
  • 1/2" NPT Direct Mount Transmitter/Union/Nipple (4")
  • 1" NPT to Process
  • 3" U Insertion, Tapered
  • 316L Stainless Steel
AI-0008T-8.5-3.5-3-6
AI-0008T-8.5-3.5-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 3.5" U, 3/4" NPT, 316 SST
AI-0008T-8-3-3-4
AI-0008T-8-3-3-4
AIRCOM RTD Assembly, Tapered Thermowell, 3" U, 3/4" NPT, 304 SST
AI-0008T-8-3-3-6
AI-0008T-8-3-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 3" U, 3/4" NPT, 316 SST
AI-0008T-8-3-4-4
AI-0008T-8-3-4-4
AIRCOM RTD Assembly, Tapered Thermowell, 3" U, 1" NPT, 304 SST
AI-0008T-8-3-4-6-SP
AI-0008T-8-3-4-6-SP
AIRCOM RTD Assembly, Tapered Thermowell, 3" U, 1" NPT, 316 SST, SP=204°C Max
AI-0008T-9.5-2.5-3-6-SP
AI-0008T-9.5-2.5-3-6-SP
AIRCOM RTD Assembly, Tapered Thermowell, 2.5" U, 3/4" NPT, 316 SST, SP=6.25" Overall Length
AI-0008T-9.5-4.5-3-6
AI-0008T-9.5-4.5-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 4.5" U, 3/4" NPT, 316 SST
AI-0008T-9.5-4.5-4-6
AI-0008T-9.5-4.5-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 4.5" U, 1" NPT, 316 SST
AI-0008T-9-4-3-6
AI-0008T-9-4-3-6
AIRCOM RTD Assembly, Tapered Thermowell, 4" U, 3/4" NPT, 316 SST
AI-0008T-9-4-4-6
AI-0008T-9-4-4-6
AIRCOM RTD Assembly, Tapered Thermowell, 4" U, 1" NPT, 316 SST
AI-0008T-9-4-SP-6
AI-0008T-9-4-SP-6
AIRCOM RTD Assembly, Tapered Thermowell, 4" U, SP=1/2" NPT, 4-Wire RTD, 850°C Max, 316 SST
AI-0008T-9-T-4-3-6-LT-X-3JX
AI-0008T-9-T-4-3-6-LT-X-3JX
AIRCOM RTD Assembly, Tapered Thermowell, 4" U, 3/4" NPT, 316 SST, 204°C Max, No Connection Head, 3-wire with Jumper & Lugs, No Terminal Block

Overview

AI-0008T-9: Tapered RTD Assembly with 9" Probe

T: Thermowell

4: U Length in Inches

3: Process Thread, 3/4" NPT

6: 316SS Material

LT: 204 deg C Max RTD Rating (low temp)

X: Connection Head - not required

3J: 3 Wire with Jumper & Lugs

X: Terminal Block - not required
AI-0008T-9-T-4-3-6-VT-2AL-3J-T
AI-0008T-9-T-4-3-6-VT-2AL-3J-T
AIRCOM RTD Assembly, Tapered Thermowell, 4" U, 3/4" NPT, 316 SST, 850°C Max, Aluminum Connection Head, 3-wire with Jumper & Lugs, Terminal Block

Overview

AI-0008T-9: Tapered RTD Assembly with 9" Probe

T: Thermowell

4: U Length in Inches

3: Process Thread, 3/4" NPT

6: 316SS Material

VT: 850 deg C Max RTD Rating (High Vibration)

2AL: Aluminum Head

3J: 3 Wire with Jumper & Lugs

T: Terminal Block
1 - 48 of 55 Part Numbers

8T Series

Thermowell

'U' Length

Thread

Material

RTD Temperature Rating

Connection Head

Termination

Terminal Block

Specifications

Accuracy

  • ± 0.1%

Bore Size

  • Thermowell: 0.26" Bore

Bushing

  • Spring Loaded: 1/2" x 1/2" NPT

Materials of Construction

  • Head: 316 Stainless Steel
  • Head: Aluminum
  • Head: Teflon Coated Aluminum
  • Stem: 304 Stainless Steel
  • Stem: 316 Stainless Steel

NPT Connection

  • 1" NPT Male
  • 1/2" NPT Male
  • 3/4" NPT Male

Operating Temperature

  • LT Version: -200° to 240° C (-328° to 464° F)
  • VT Version: -200° to 850° C (-328° to 1562° F)

Sensor, Probe Material

  • 1/4" O.D. Stainless Steel

Temperature Coefficient

  • 0.00385

Termination

  • 3-Wire Bare Ended
  • 3-Wire with Jumper & Lugs
