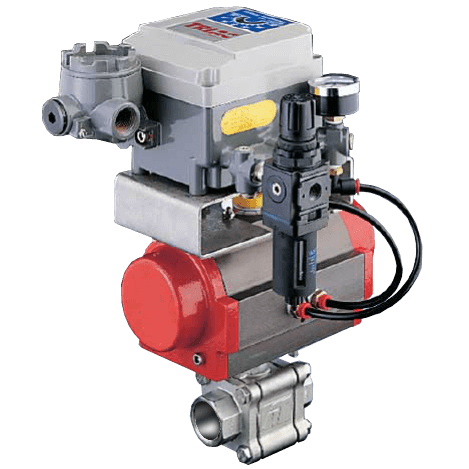

V7 Series Automated Ball Valve

Brand: A-T Controls, Inc.
The A-T Controls V Series rotary valve is a throttling control segment-ball valve the provides high flow capacity with optimum characteristics for industrial markets including Pulp and Paper, Refinery, Chemical, and Petrochemical Industries
Features
  • Design: Automatic V-Port Control Valve
  • Size: 1/2" to 4"
  • Port: 30°, 60°, 90° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE, Cavity Filled, Non-Cavity Filled, 50/50%
  • End Connections: Sanitary Clamp
  • Max Pressure Rating: 1000-2000 psi
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
show more
Images are representations only.
The A-T Controls V Series rotary valve is a throttling control segment-ball valve the provides high flow capacity with optimum characteristics for industrial markets including Pulp and Paper, Refinery, Chemical, and Petrochemical Industries
Features
  • Design: Automatic V-Port Control Valve
  • Size: 1/2" to 4"
  • Port: 30°, 60°, 90° V-Port
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: CF3M
    • Trim: 316 Stainless Steel
    • Seats: PTFE, Cavity Filled, Non-Cavity Filled, 50/50%
  • End Connections: Sanitary Clamp
  • Max Pressure Rating: 1000-2000 psi
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)

The Part Numbers and SKU's listed may not currently be in stock. Please find the part number you are looking for and request a quote to determine availability

1 - 4 of 4 Part Numbers
V7-C1-200/2R3D-EX-3
V7-C1-200/2R3D-EX-3
A-T CONTROLS Series V7 Automated Ball Valve, V-Port, 316 SST, 2" Sanitary, Non-Cavity Filled, PTFE, 2R80DA Pneumatic Actuator, Double Acting, Electro-Pneumatic Positioner, 30° V-Port (V-Ball)

Overview

  • Design: Sanitary V-Port, Non-Cavity Filled
  • Size: 2" NPT
  • Port: V-Port, 30°
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Stainless Steel
    • Trim: Stainless Steel
    • Seats: PTFE

  • End Connections: Sanitary Clamp Ends
  • Actuator Type - Pneumatic: 2R80 Double Acting
    • Postioner: 4-20mA Electro-Pneumatic

V7-C1-200/2R3D-EX-6
V7-C1-200/2R3D-EX-6
A-T CONTROLS Series V7 Automated Ball Valve, V-Port, 316 SST, 2" Sanitary, Non-Cavity Filled, PTFE, 2R80DA Pneumatic Actuator, Double Acting, Electro-Pneumatic Positioner, 60° V-Port (V-Ball)

Overview

  • Design: Sanitary V-Port, Non-Cavity Filled
  • Size: 2" NPT
  • Port: V-Port, 60°
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Stainless Steel
    • Trim: Stainless Steel
    • Seats: PTFE

  • End Connections: Sanitary Clamp Ends
  • Actuator Type - Pneumatic: 2R80 Double Acting
    • Postioner: 4-20mA Electro-Pneumatic

V7-C1-200/2R3D-EX-9
V7-C1-200/2R3D-EX-9
A-T CONTROLS Series V7 Automated Ball Valve, V-Port, 316 SST, 2" Sanitary, Non-Cavity Filled, PTFE, 2R80DA Pneumatic Actuator, Double Acting, Electro-Pneumatic Positioner, 90° V-Port (V-Ball)

Overview

  • Design: Sanitary V-Port, Non-Cavity Filled
  • Size: 2" NPT
  • Port: V-Port, 90°
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Stainless Steel
    • Trim: Stainless Steel
    • Seats: PTFE

  • End Connections: Sanitary Clamp Ends
  • Actuator Type - Pneumatic: 2R80 Double Acting
    • Postioner: 4-20mA Electro-Pneumatic

V7-CF-050/WEA2-RX-3
V7-CF-050/WEA2-RX-3
A-T CONTROLS Series V7 Automated Ball Valve, V-Port, 316 SST, 1/2" Sanitary, Cavity Filled, PTFE, WEM-500 Electric Modulating Acutator, 24VDC, 30° V-Port (V-Ball)
1 - 4 of 4 Part Numbers

V7 Automated

Valve Size

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

End Connection

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Seat Material

Actuator Type

Actuator Type

Actuator Type

Actuator Type

Actuator Type

Actuator Type

Actuator Type

Actuator Type

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Accessories / Options

Control Valve or Special Stem Designation

Specifications

Applications

  • Chemicals
  • Flow Control
  • Gases
  • Liquid
  • Petrochemical
  • Pressure Monitoring
  • Pulp & Paper
  • Refineries
  • Steam
  • Viscous Media & Slurry

Approvals & Certifications

  • API 598
  • CE
  • EN 10204-3.1 MTR
  • IEC 61508:2010, SIL 3
  • ISO 5211
  • ISO 9001:2008

Enclosure, Body Material

  • Low Carbon 316 Stainless Steel

Options

  • Electro-Pneumatic Positioner
  • Pneumatic Positioner

Port

  • 30° V-Port (V-Ball)
  • 60° V-Port (V-Ball)
  • 90° V-Port (V-Ball)

Pressure Rating

  • psi: 1,000

Pyramidal Stem Packing

  • Yes

Seat/Seal Material

  • 50% Stainless Steel Powder / 50% Carbon Filled Teflon
  • PTFE (Carbon Filled Teflon)

Standard Features

  • 3-Piece V-Port

Tri-Clamp Connection

  • 1" Sanitary Clamp
  • 1/2" Sanitary Clamp
  • 1-1/2" Sanitary Clamp
  • 2" Sanitary Clamp
  • 2-1/2" Sanitary Clamp
  • 3" Sanitary Clamp
  • 3/4" Sanitary Clamp
  • 4" Sanitary Clamp

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated
