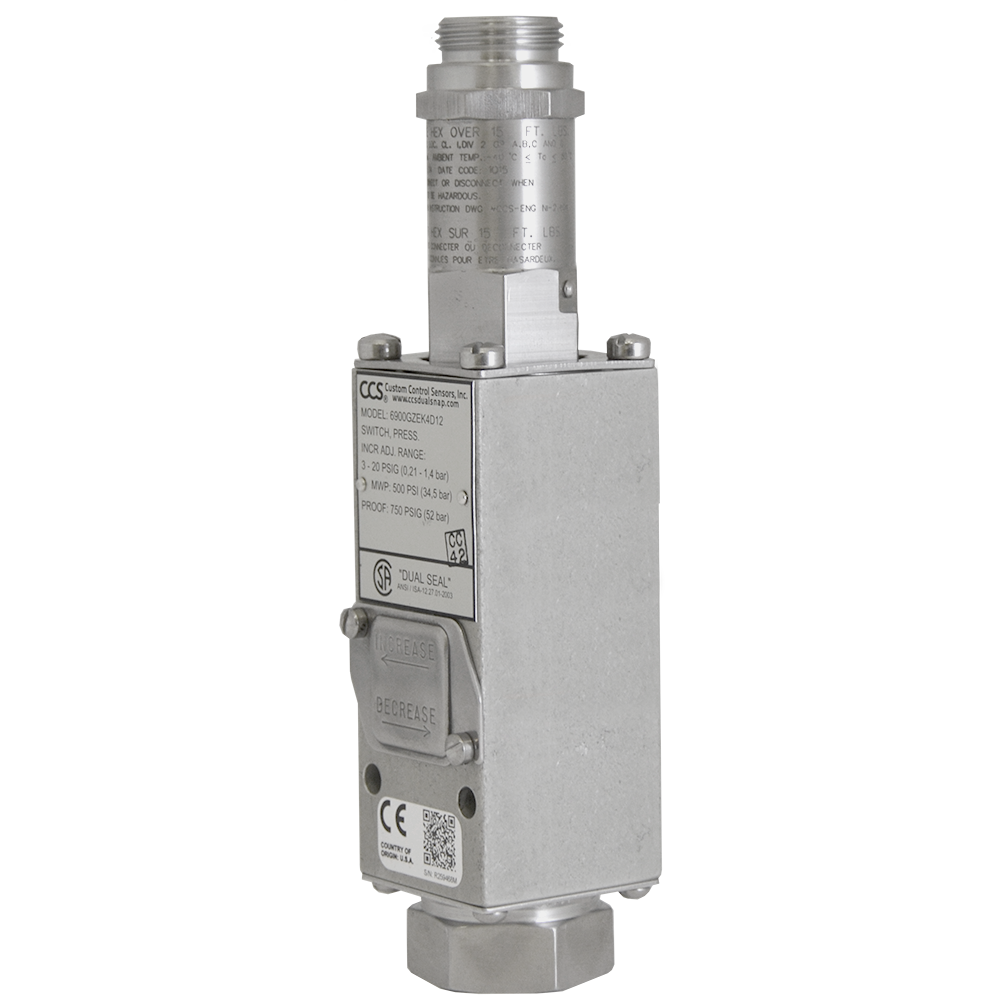

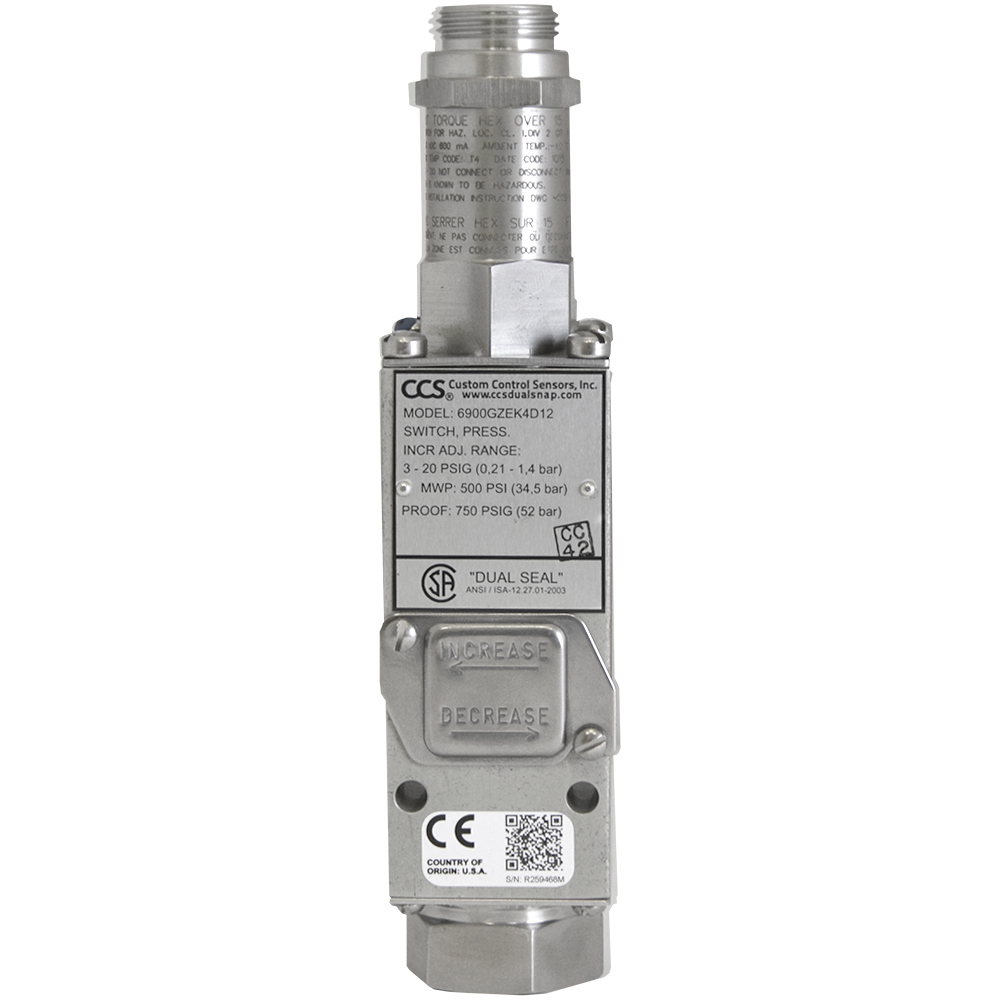

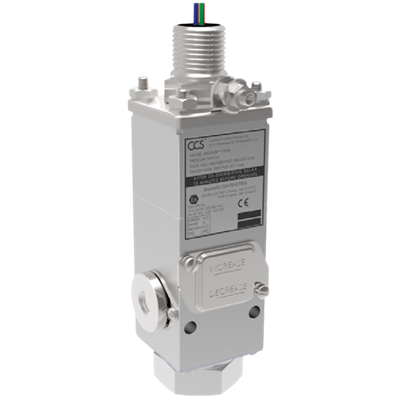

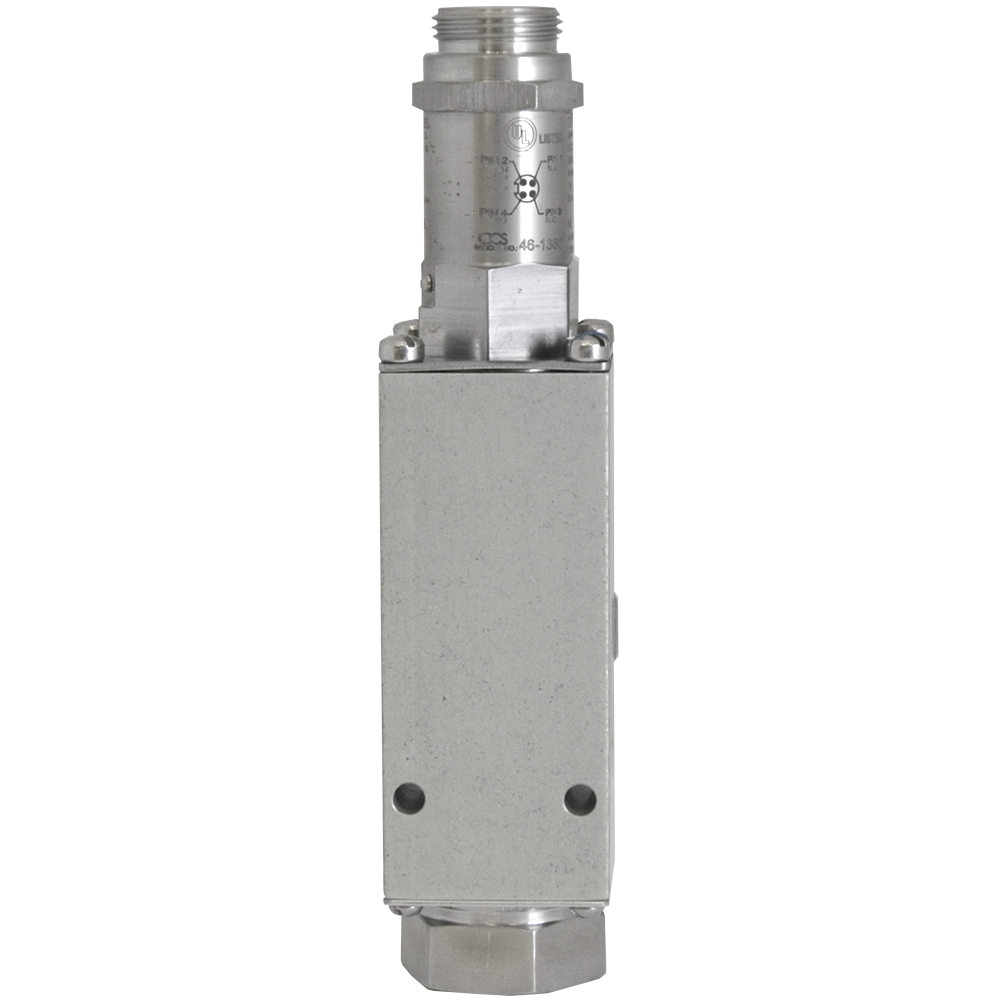

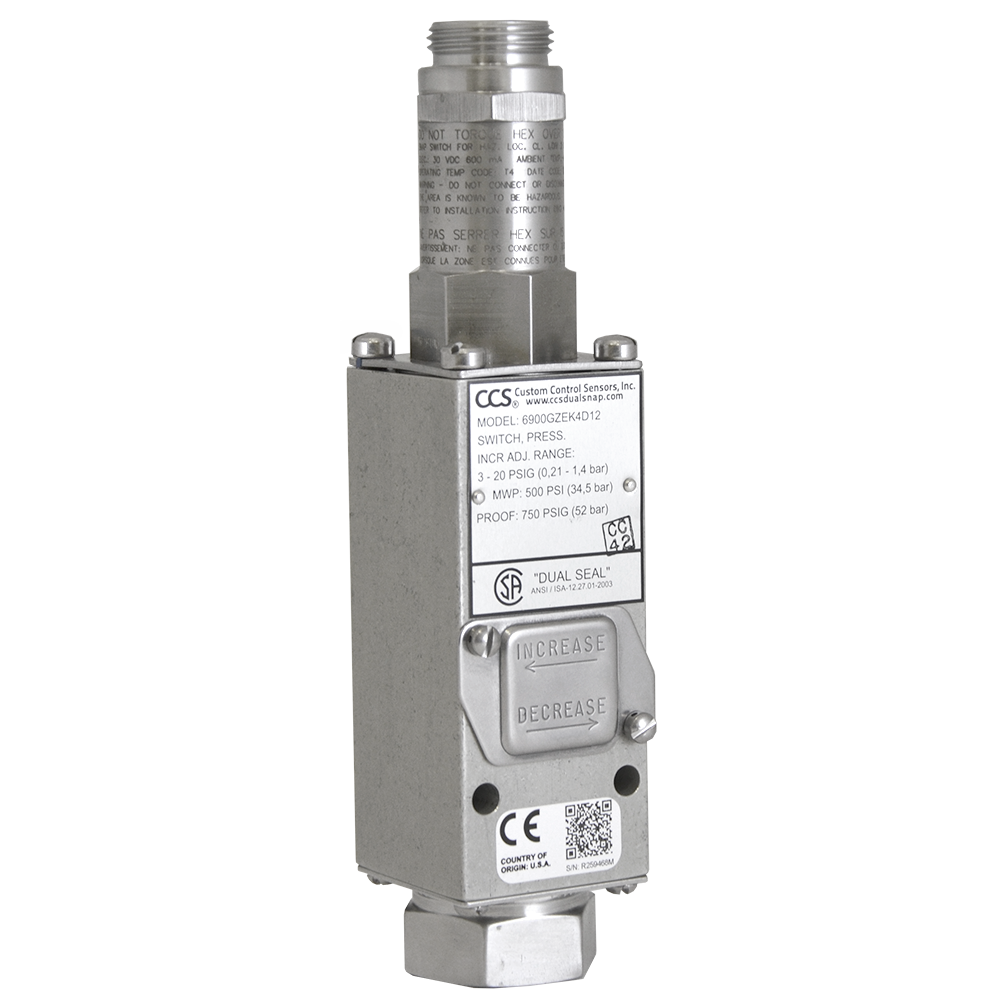

6900GZEK Series Pressure Switch

Brand: Custom Control Sensors
Features
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.15 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.62 kPa, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 13.8 to 1930.5 kPa, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.75 kPa, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.63 kPa, 51.7 to 517.11 bar
  • Wetted Materials:

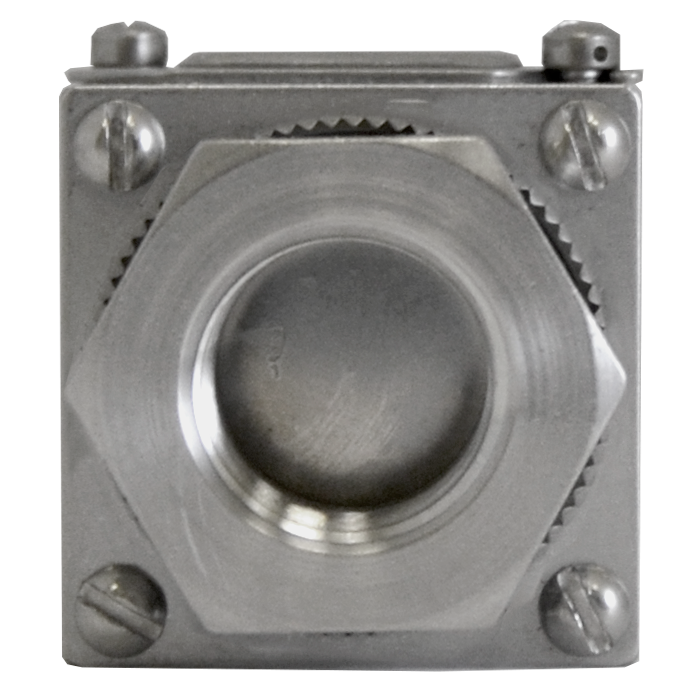

    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPST, SPDT, DPST, or DPDT

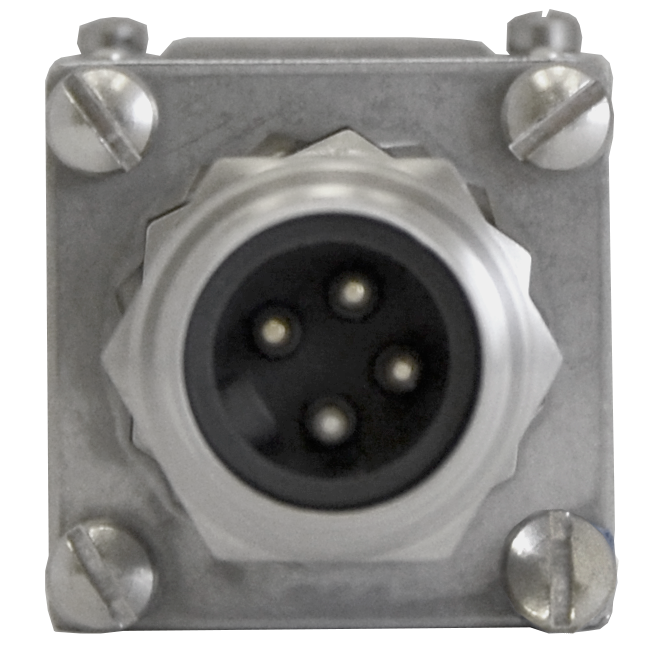

  • Electrical Connection: 4 or 6 Pin Turck Connector
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE, NEMA
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.15 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.62 kPa, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 13.8 to 1930.5 kPa, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.75 kPa, 34.5 to 344.74 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.63 kPa, 51.7 to 517.11 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPST, SPDT, DPST, or DPDT
  • Electrical Connection: 4 or 6 Pin Turck Connector
  • UL, CSA:
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NACE, NEMA
53 models matching criteria
6900GCEK4C18
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 4-Pin SPST NC View More
  • Adjustable Set Point Range:

    • Increasing: 45 to 375 psig, 310.3 to 2586 kPa, 3.1 to 25.9 bar
    • Decreasing: 15 to 345 psig, 103.4 to 2379 kPa, 1.0 to 23.8 bar

  • Deadband: Approximately 30 psi, 206.9 kPa, 2.0 bar
  • System Pressure (Maximum): 1500 psig, 10342.1 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.5 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: Turck 4-Pin SPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK4C20
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 4-Pin SPST NC View More
  • Adjustable Set Point Range:
    • Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 bar
    • Decreasing: 225 to 925 psig, 1551.7 to 6379.3 kPa, 15.5 to 64 bar

  • Deadband: Approximately 75 psi, 517.2 kPa, 5.1 bar
  • System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK4D12
CCS DUAL-SNAP Pressure Switch, Haz.Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 4-PinSPDT NO&NC View More
  • Adjustable Set Point Range:
    • Increasing: 3 to 20 psig, 20.7 to 137.9 kPa, 0.21 to 1.4 bar
    • Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar

  • Deadband: Approximately 2 psi, 13.8 kPa, 0.14 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK4D22
CCS DUAL-SNAP Pressure Switch, Haz.Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 4-PinSPDT NO&NC View More
  • Adjustable Set Point Range:
    • Increasing: 700 to 2200 psig, 4826.4 to 15172.4 kPa, 48.3 to 152 bar
    • Decreasing: 520 to 2020 psig, 3586.2 to 13931.0 kPa, 35.9 to 139 bar

  • Deadband: Approximately 180 psi, 1255.2 kPa, 12.4 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 4500 psig, 31026.41 kPa, 310 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK4O22
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 4-Pin SPST NO View More
  • Adjustable Set Point Range:
    • Increasing: 700 to 2200 psig, 4826.4 to 15172.4 kPa, 48.3 to 152 bar
    • Decreasing: 520 to 2020 psig, 3586.2 to 13931.0 kPa, 35.9 to 139 bar

  • Deadband: Approximately 180 psi, 1255.2 kPa, 12.4 bar
  • System Pressure (Maximum): 1500 psig, 10342.1 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.5 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK6C12
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 6-Pin DPST NC View More
  • Adjustable Set Point Range:
    • Increasing: 3 to 20 psig, 20.7 to 137.9 kPa, 0.21 to 1.4 bar
    • Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar

  • Deadband: Approximately 2 psi, 13.8 kPa, 0.14 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK6C16
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 4-Pin DPST NC View More
  • Adjustable Set Point Range:
    • Increasing: 18 to 150 psig, 124.1 to 1034.2 kPa, 1.2 to 10.3 bar
    • Decreasing: 6 to 138 psig, 41.4 to 951.5 kPa, 0.41 to 9.5 bar

  • Deadband: Approximately 12 psi, 82.7 kPa, 0.8 bar
  • System Pressure (Maximum): 1500 psig, 10342.1 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13789.5 kPa, 138 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK6C24
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 6-Pin DPST NC View More
  • Adjustable Set Point Range:
    • Increasing: 1800 to 3400 psig, 12410.6 to 23442.2 kPa, 124 to 234 bar
    • Decreasing: 1520 to 3120 psig, 10480.0 to 21511.6 kPa, 105 to 215 bar

  • Deadband: Approximately 280 psi, 1930.5 kPa, 19.3 bar
  • System Pressure (Maximum): 5000 psig, 34473.8 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.7 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GCEK6O24
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Welded Port & Diaphragm, TURCK 6-Pin DPST NO View More
  • Adjustable Set Point Range:
    • Increasing: 1800 to 3400 psig, 12410.6 to 23442.2 kPa, 124 to 234 bar
    • Decreasing: 1520 to 3120 psig, 10480.0 to 21511.6 kPa, 105 to 215 bar

  • Deadband: Approximately 280 psi, 1930.5 kPa, 19.3 bar
  • System Pressure (Maximum): 5000 psig, 34473.8 kPa, 345 bar
  • Proof Pressure: 7500 psig, 51710.7 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel Welded Capsule
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory
6900GZEK6C20
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, TURCK 6-Pin DPST NC View More
  • Adjustable Set Point Range:
    • Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 bar
    • Decreasing: 225 to 925 psig, 1551.7 to 6379.3 kPa, 15.5 to 64 bar

  • Deadband: Approximately 75 psi, 517.2 kPa, 5.1 bar
  • System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPST
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003

  • CRN, CE Mark, NACE
Available Add-OnsStainless Steel Tag, Preset Set Point
Contact For Inventory

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • Dual Seal
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.14 to 19.3
  • kPa: 13.8 to 1,931
  • psi: 2 to 280

Diaphragm Material

  • Hastelloy C-276
  • Monel
  • Stainless Steel

Electrical Assembly

  • 316 Stainless Steel
  • Hermetic Seal

Electrical Certification

  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories

Electrical Connectors

  • 4-Pin TURCK Connector
  • 6-Pin TURCK Connector

Electrical Contacts

  • Gold
  • Silver

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NACE & NIST

  • NACE MR-0175: 2003

NPT Connection

  • 1/2” NPT Female Welded Diaphragm - Internal with Port Cavity

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • None
  • Viton

Process Connection Material

  • 316 Stainless Steel
  • Hastelloy C-276
  • Monel

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 215
  • kPa: 6.9 to 21,512
  • psig: 1 to 3,120

Set Point - Increasing

  • bar: 0.21 to 234
  • kPa: 20.7 to 23,442
  • psig: 3 to 3,400

Switch Type

  • DPST
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000
