Images are representations only.

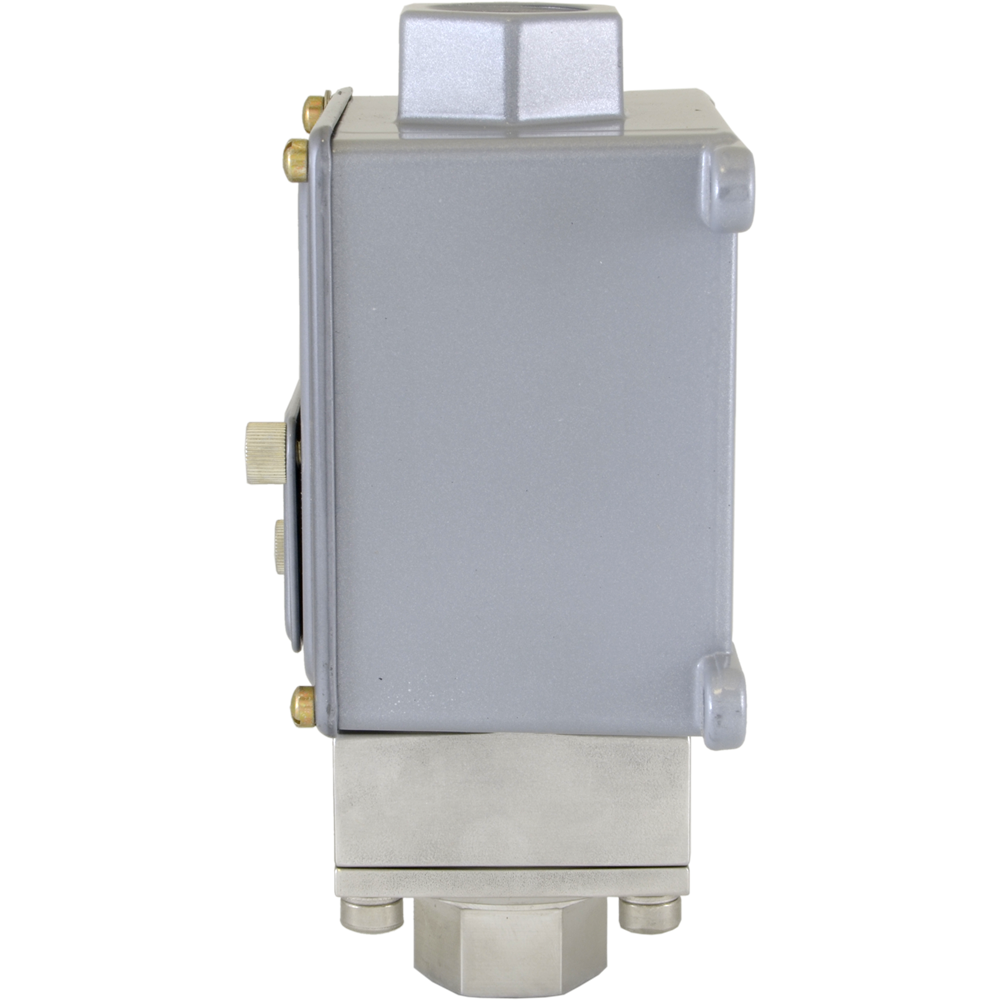

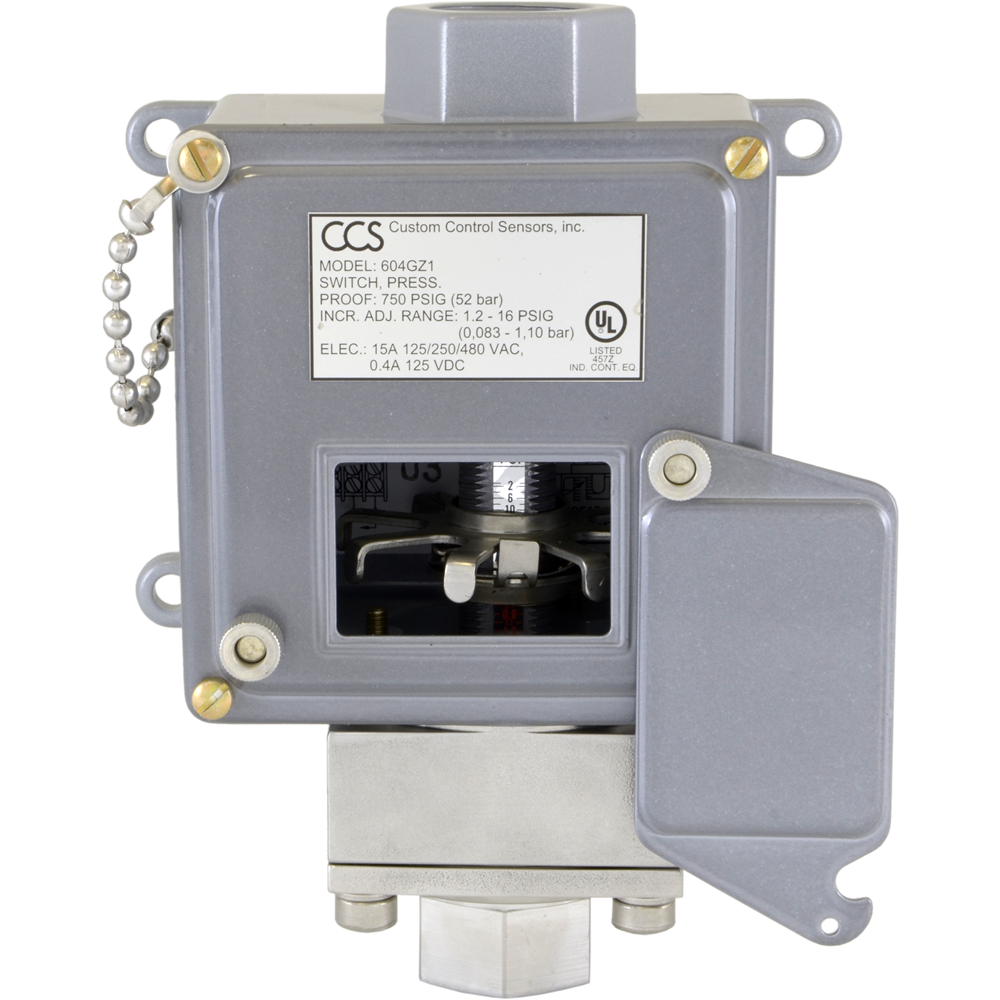

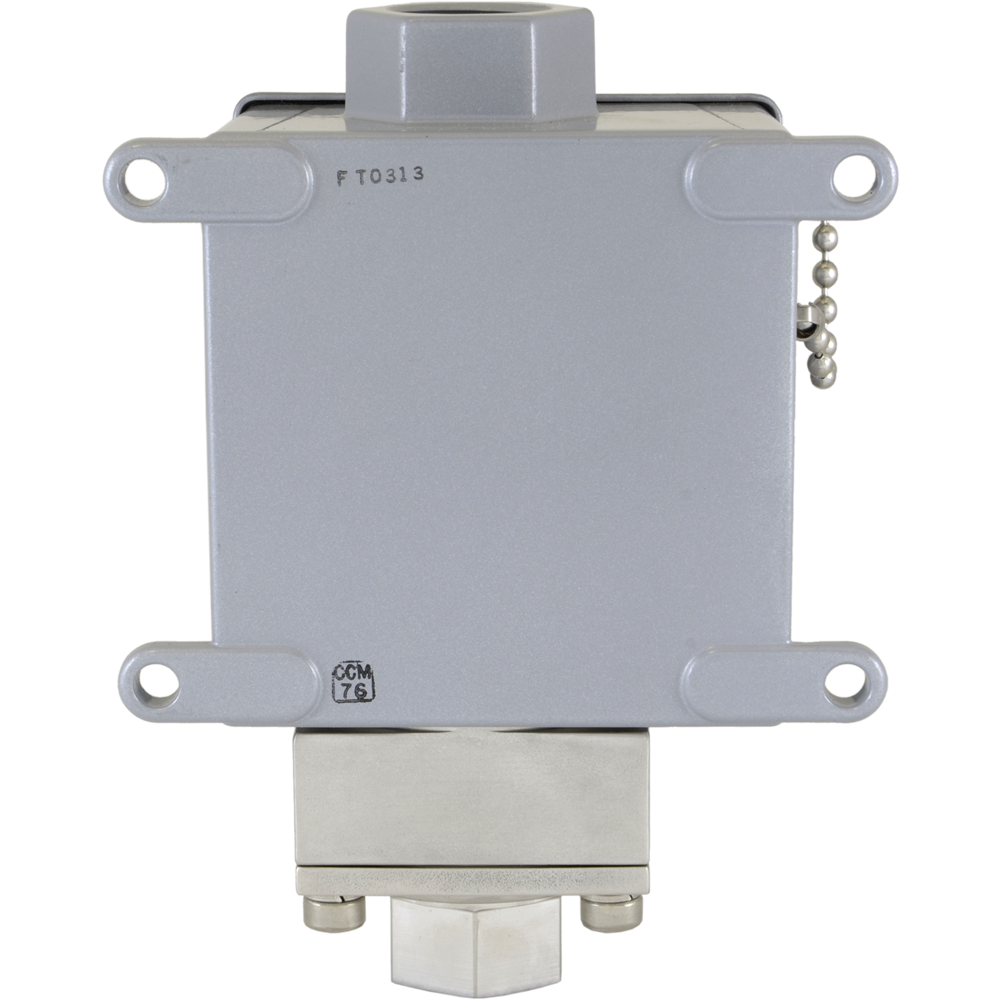

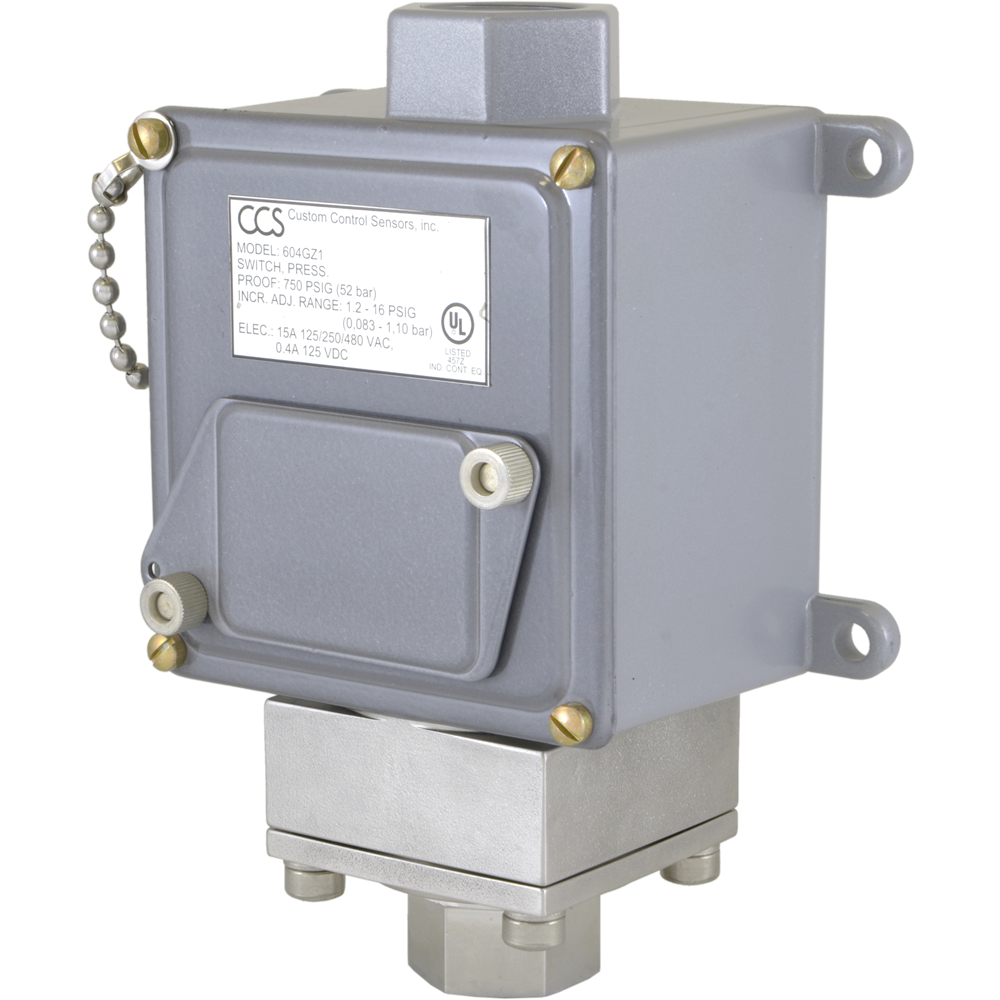

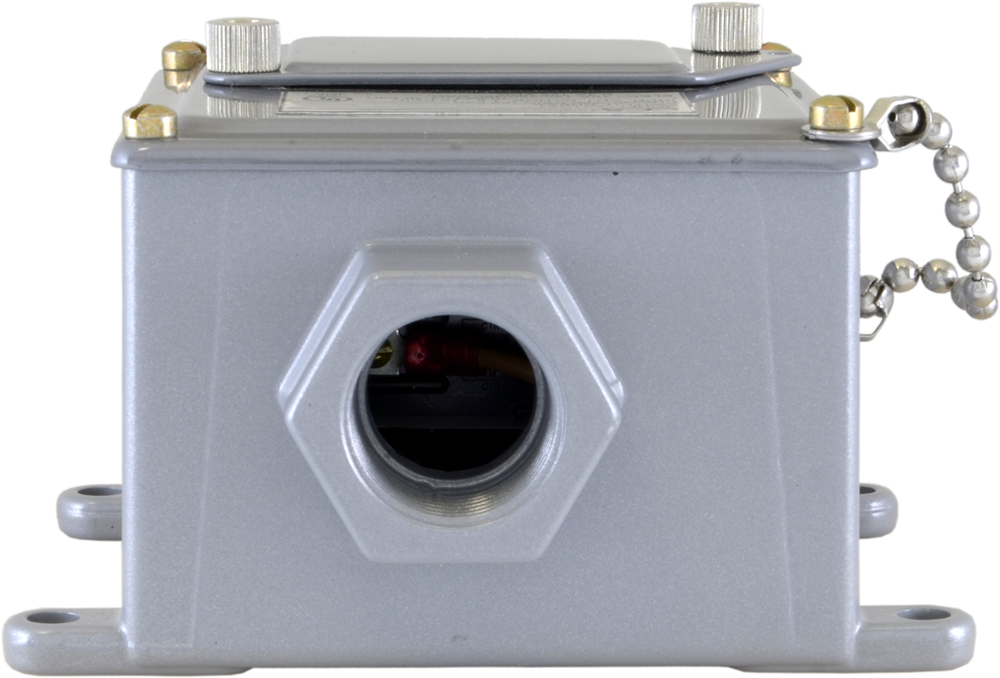

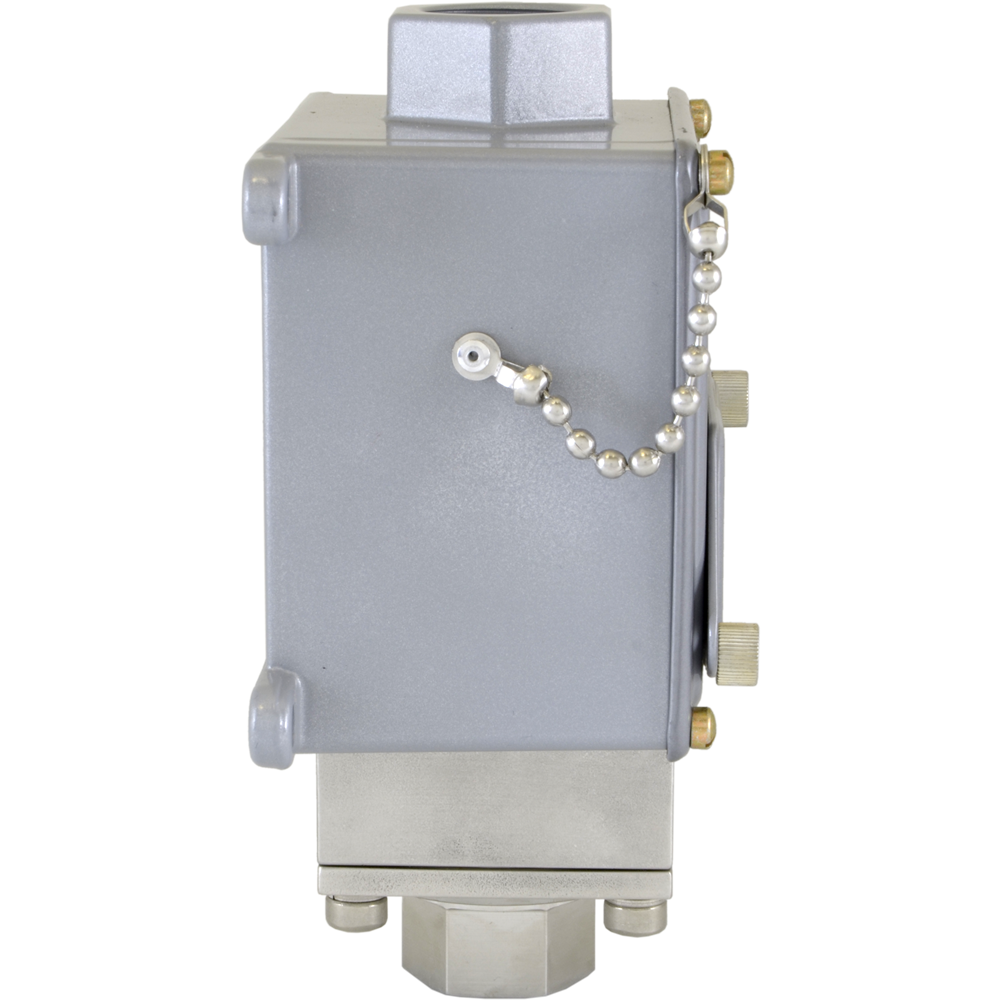

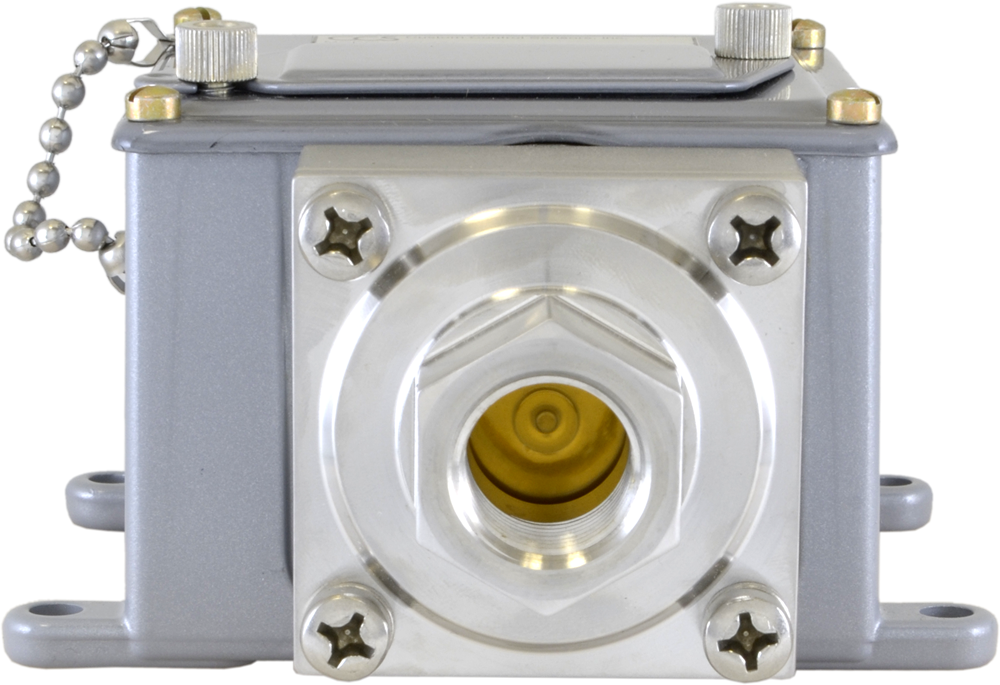

604GZ-7011 Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 1.4 to 5000 psig, 9.7 to 34,473.7 kPa, 0.9 to 345 bar
    • Decreasing: 0.4 to 4520 psig 2.8 to 31,164.3 kPa, 0.03 to 312 bar
  • Deadband: Approximately 1 to 480 psi, 6.89 to 3309.4 kPa, 0.07 to 33.1 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3,447.38 to 34,473.7 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 75,000 psig, 5,171.07 to 51,710.6 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.4 to 5000 psig, 9.7 to 34,473.7 kPa, 0.9 to 345 bar
    • Decreasing: 0.4 to 4520 psig 2.8 to 31,164.3 kPa, 0.03 to 312 bar
  • Deadband: Approximately 1 to 480 psi, 6.89 to 3309.4 kPa, 0.07 to 33.1 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3,447.38 to 34,473.7 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 75,000 psig, 5,171.07 to 51,710.6 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Close

Displaying prices & availability for United States in USD. Change location or currency

26 models matching criteria
604GZJ7-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, CSA View More
  • Adjustable Set Point Range:
    • Increasing: 950 to 2300 psig, 6550.1 to 15857.9 kPa, 65.5 to 159 bar
    • Decreasing: 750 to 2100 psig, 5171.1 to 14478.9 kPa, 51.7 to 145 bar
  • Deadband: Approximately 200 psi, 1378.95 kPa, 13.8 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CSA, CRN, CE Mark, NACE, General Purpose
7 In Stock
$1,038.10USD
$19.03 Shipping
604GZ11-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 20 to 150 psig, 137.9 to 1034.2 kPa, 1.4 to 10.3 bar
    • Decreasing: 6 to 136 psig, 41.4 to 937.6 kPa, 0.4 to 9.4 bar
  • Deadband: Approximately 14 psi, 96.53 kPa, 0.97 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
5 In Stock
$804.56USD
$19.03 Shipping
604GZ9-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 2100 to 3400 psi, 14479.0 to 23442.1 kPa, 145 to 234 bar
    • Decreasing: 1820 to 3120 psi, 12548.5 to 21511.6 kPa, 126 to 215 bar

  • Deadband: Approximately 280 psi, 1930.53 kPa, 19.3 bar
  • System Pressure (Maximum): 5000 psi, 34473.78 kPa, 304 bar
  • Proof Pressure: 7500 psi, 51710.68 kPa, 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
3 In Stock
$1,500.04USD
$19.03 Shipping
604GZ2-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 10 to 75 psig, 69.0 to 517.1 kPa, 0.7 to 5.2 bar
    • Decreasing: 3 to 68 psig, 20.7 to 468.8 kPa, 0.2 to 4.7 bar

  • Deadband: Approximately 7 psi, 48.26 kPa, 0.5 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
$804.56USD
$19.03 Shipping
604GZ3-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 50 to 375 psig, 344.7 to 2585.5 kPa, 3.5 to 25.9 bar
    • Decreasing: 16 to 347 psig 110.4 to 2392.4 kPa, 1.1 to 23.9 bar
  • Deadband: Approximately 34 psi, 234.42 kPa, 2.3 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
$804.56USD
Does not ship to US
604GZ7-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More

  • Adjustable Set Point Range:
    • Increasing: 950 to 2300 psig, 6550.1 to 15857.9 kPa, 65.5 to 159 bar
    • Decreasing: 750 to 2100 psig, 5171.1 to 14478.9 kPa, 51.7 to 145 bar
  • Deadband: Approximately 200 psi, 1378.95 kPa, 13.8 bar
  • System Pressure (Maximum): 3000 psig, 20,684.2 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
$804.56USD
Does not ship to US
604GZ1-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 1.4 to 16 psig, 9.7 to 110.3 kPa, 0.09 to 1.1 bar
    • Decreasing: 0.4 to 15 psig 2.8 to 103.4 kPa, 0.03 to 1.03 bar

  • Deadband: Approximately 1 psi, 6.89 kPa, 0.07 bar
  • System Pressure (Maximum): 500 psig, 3,447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5,171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
$882.16USD
Does not ship to US
604GZM1-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 1.4 to 16 psig, 9.7 to 110.3 kPa, 0.09 to 1.1 bar
    • Decreasing: 0.4 to 15 psig 2.8 to 103.4 kPa, 0.03 to 1.03 bar

  • Deadband: Approximately 1 psi, 6.89 kPa, 0.07 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
$909.98USD
Does not ship to US
604GZM2-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 10 to 75 psig, 69.0 to 517.1 kPa, 0.7 to 5.2 bar
    • Decreasing: 3 to 68 psig, 20.7 to 468.8 kPa, 0.2 to 4.7 bar
  • Deadband: Approximately 7 psi, 48.26 kPa, 0.5 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
$953.91USD
Does not ship to US
604GZ5-7011
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:
    • Increasing: 330 to 1000 psig, 2275.3 to 6894.7 kPa, 22.8 to 68.9 bar
    • Decreasing: 250 to 920 psig, 1723.7 to 6343.1 kPa, 17.2 to 63.4 ba
  • Deadband: Approximately 80 psi, 551.58 kPa, 5.5 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CRN, CE Mark, NACE, General Purpose
Contact For Inventory
Show More Models (15)
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • LVD
  • PED
  • RoHS
  • UL

Deadband, Approximate

  • bar: 0.07 to 33.1
  • kPa: 6.9 to 3,309
  • psig: 1 to 480

Diaphragm Material

  • Hastelloy C-276
  • Monel
  • Stainless Steel
  • Viton Dacron

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

Manual Reset

  • Manual Reset on Increasing Pressure

NACE & NIST

  • NACE MR-0175: 2003

NPT Connection

  • 1/2” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure

  • bar: 51.7 to 517
  • kPa: 5,171 to 51,711
  • psig: 750 to 7,500

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0.03 to 312
  • kPa: 2.8 to 31,164
  • psig: 0.4 to 4,520

Set Point - Increasing

  • bar: 0.09 to 345
  • kPa: 9.7 to 34,473.7
  • psig: 1.4 to 5,000

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 345
  • kPa: 3,447 to 34,474
  • psig: 500 to 5,000
