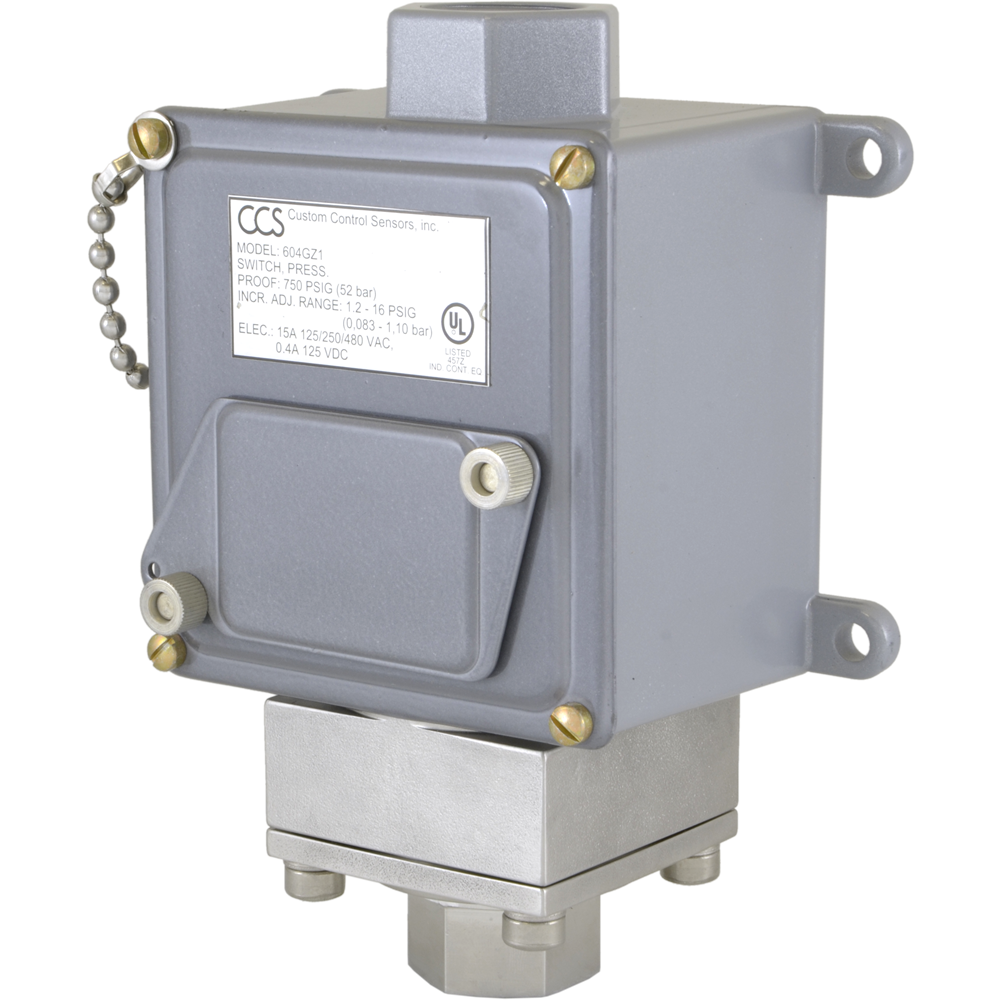

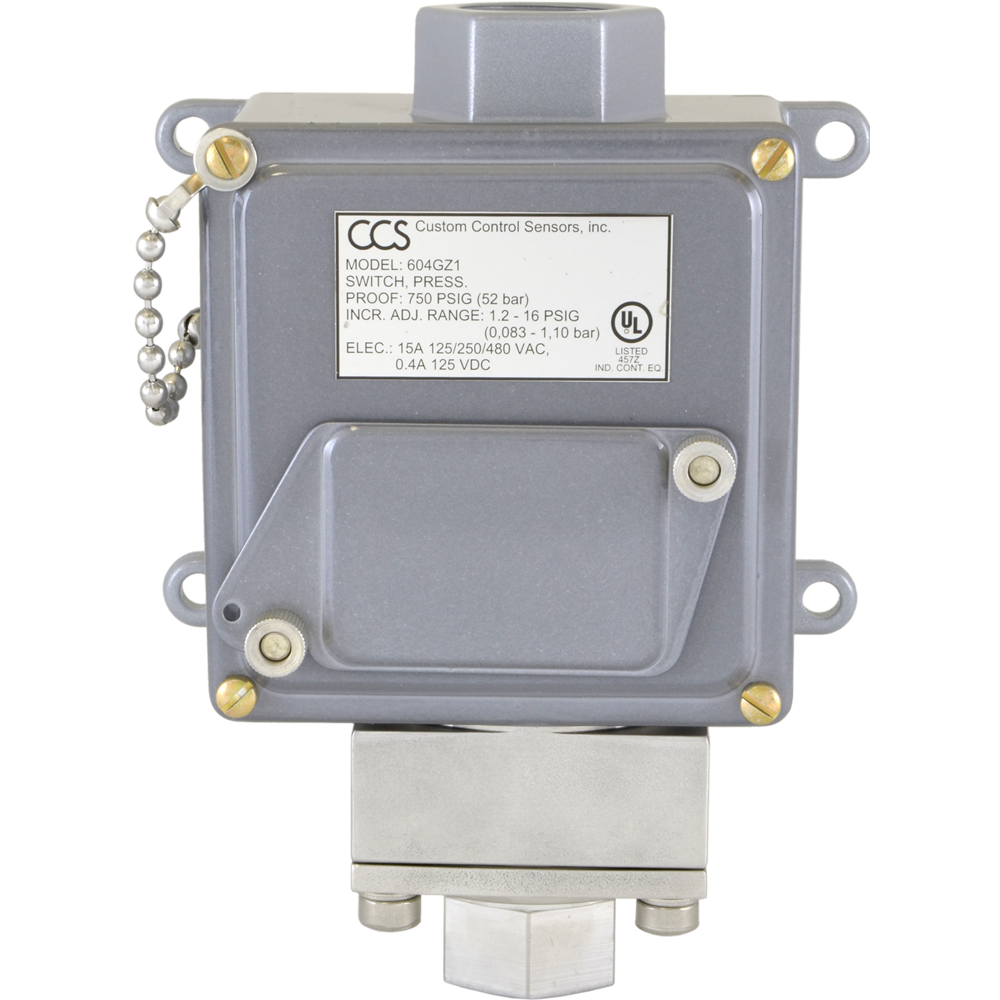

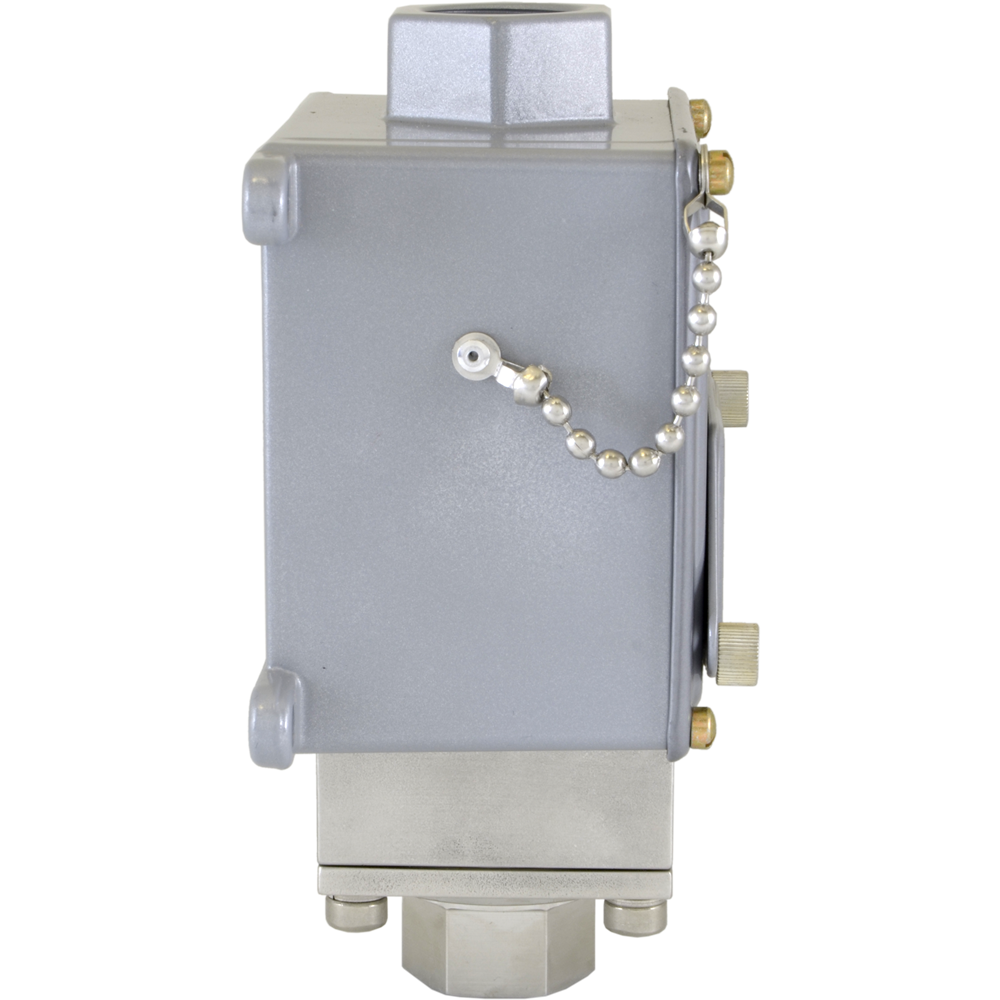

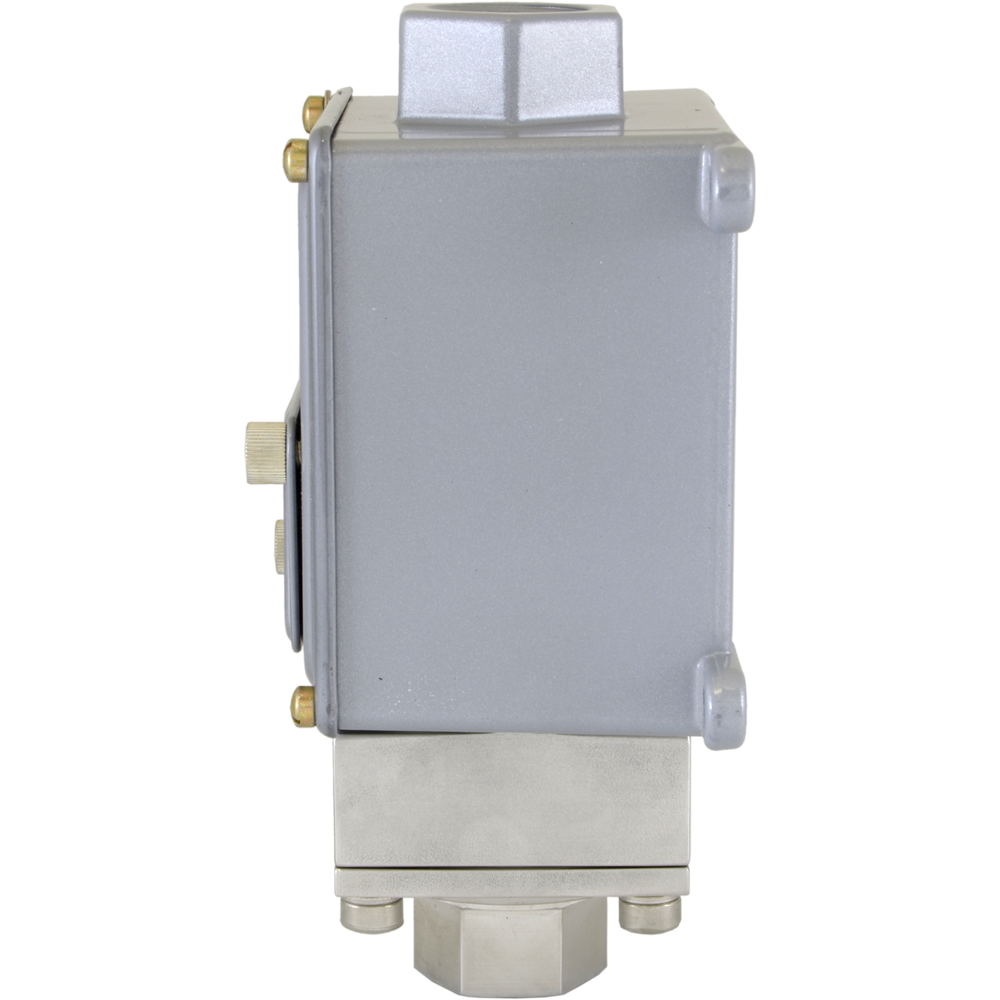

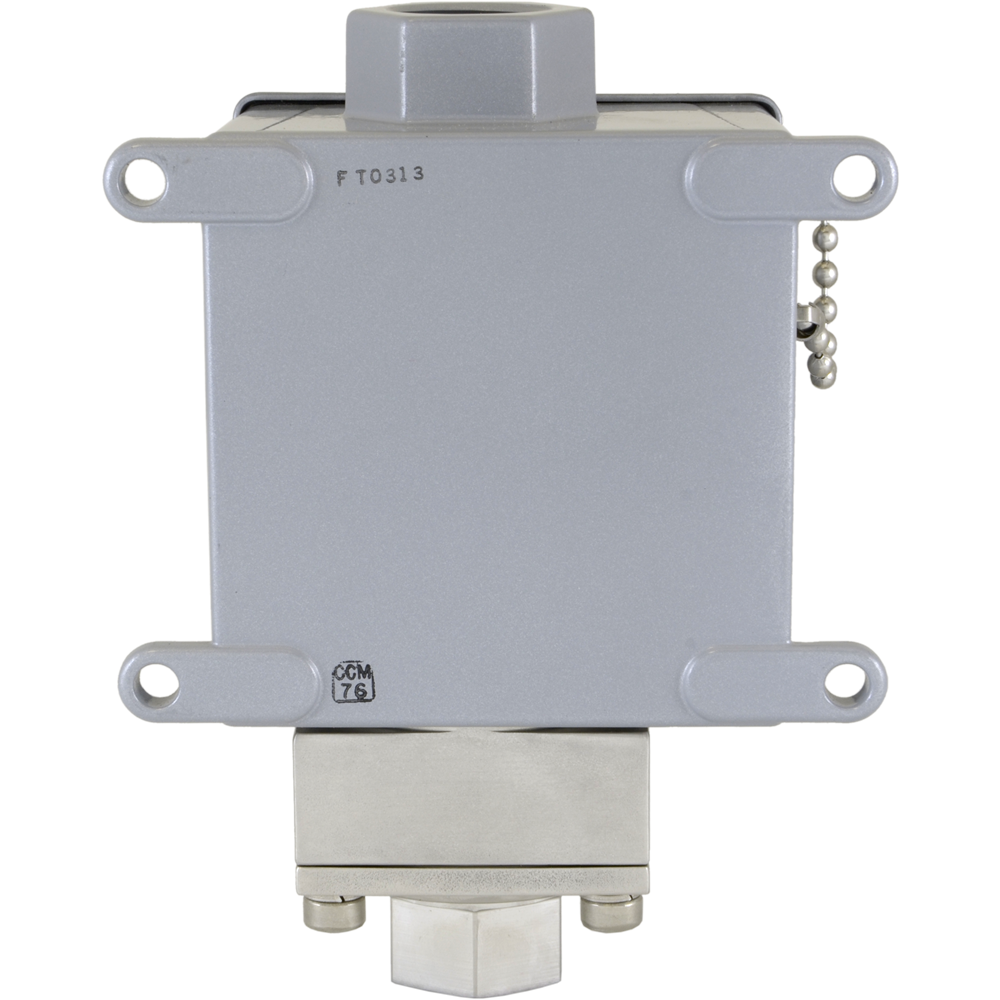

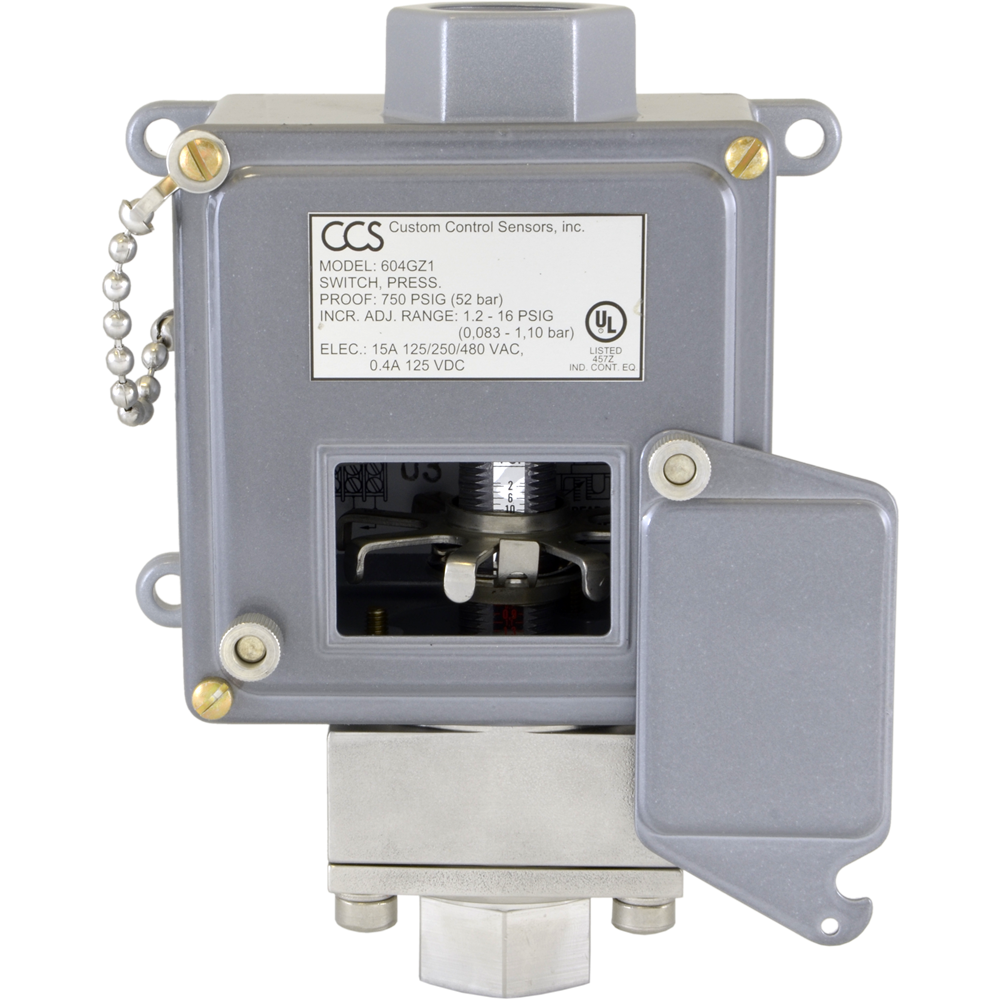

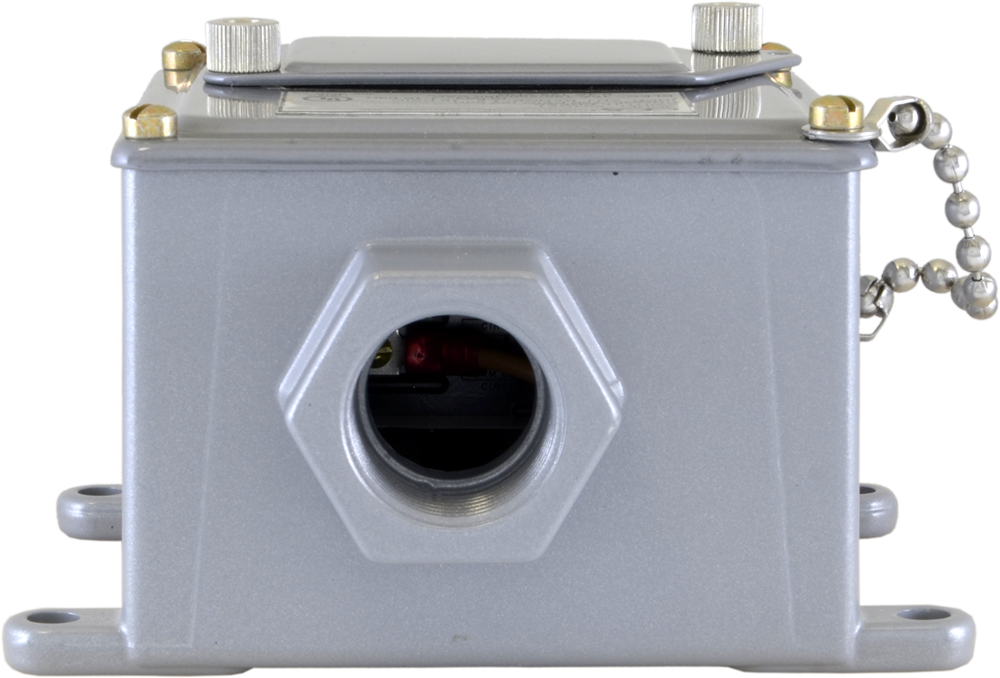

604GZ-7011 Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 1.4 to 5000 psig, 9.7 to 34,473.7 kPa, 0.9 to 345 bar
    • Decreasing: 0.4 to 4520 psig 2.8 to 31,164.3 kPa, 0.03 to 312 bar
  • Deadband: Approximately 1 to 480 psi, 6.89 to 3309.4 kPa, 0.07 to 33.1 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3,447.38 to 34,473.7 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 75,000 psig, 5,171.07 to 51,710.6 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 1.4 to 5000 psig, 9.7 to 34,473.7 kPa, 0.9 to 345 bar
    • Decreasing: 0.4 to 4520 psig 2.8 to 31,164.3 kPa, 0.03 to 312 bar
  • Deadband: Approximately 1 to 480 psi, 6.89 to 3309.4 kPa, 0.07 to 33.1 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3,447.38 to 34,473.7 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 75,000 psig, 5,171.07 to 51,710.6 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, NACE, General Purpose
26 models matching criteria
604GZ7-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
7 In Stock
$268.26USD
$8.27 Shipping
604GZJ7-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
7 In Stock
$330.36USD
$8.27 Shipping
604GZ11-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
5 In Stock
$268.26USD
$8.27 Shipping
604GZ9-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
3 In Stock
$377.55USD
$8.27 Shipping
604GZ5-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
1 In Stock
$268.26USD
$8.27 Shipping
604GZ1-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
1 In Stock
$391.63USD
$8.27 Shipping
604GZM3-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
1 In Stock
$424.74USD
$8.27 Shipping
604GZ2-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
1 In Stock
604GZ3-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$794.84USD
$8.27 Shipping
604GZJ11-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$831.27USD
$8.27 Shipping
604GZJ2-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$860.25USD
$8.27 Shipping
604GZJ5-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$867.70USD
$8.27 Shipping
604GZF2-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, EPDM
5 - 7 weeks
$870.19USD
$8.27 Shipping
604GZJF5-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Ethylene Propylene O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$880.12USD
$8.27 Shipping
604GZM2-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$943.88USD
$8.27 Shipping
604GZM1-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$968.72USD
$8.27 Shipping
604GZF7-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Ethylene Propylene O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,000.18USD
$8.27 Shipping
604GZM5-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,012.60USD
$8.27 Shipping
604GZM11-7030
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Gold Contacts, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,049.03USD
$8.27 Shipping
604GZM7-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
7 - 9 weeks
$1,107.81USD
$8.27 Shipping
604GZJ9-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$1,122.72USD
$8.27 Shipping
604GZJ10-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$1,130.17USD
$8.27 Shipping
604GZJ1-7030
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$1,424.09USD
$8.27 Shipping
604GC1-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, SPDT, Approvals: UL, CE, CRN, CCC, EAC
10 - 12 weeks
604GZJB3-7011
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Buna-N O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks

604GZ-7011

Base Model

Welded Internal Diaphragm

A metal diaphragm is welded to the inside of the pressure port, eliminating the O-Ring. This arrangement may be desired for processes where O-Rings may present a problem.

Process Connection

Diaphragm

O-Ring

Output

Output

Output

Output

Output

Output

Output

Output

Electrical Contacts

Manual Reset

This Manual Reset option allows for automatic actuation on increasing pressure.

Agency Approvals

Paint
