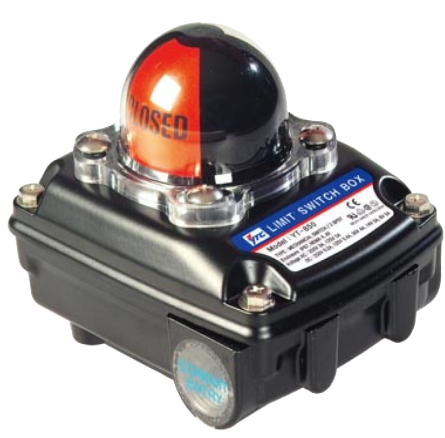

YT-850 Non-Explosion Limit Switch Box

Brand: Young Tech Co., Ltd
  • Visual Position Indicator
  • Easy adjustment of cam position
  • 6 Contacts Of Terminal Ports
  • Compatible With Any Rotary Motion Actuator
  • Environmental Protection: IP67
  • All plastic body
show more
Images are representations only.
  • Visual Position Indicator
  • Easy adjustment of cam position
  • 6 Contacts Of Terminal Ports
  • Compatible With Any Rotary Motion Actuator
  • Environmental Protection: IP67
  • All plastic body

YT-850

Switch Type

Connection

Bracket

Temperature Range

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 80° C (-4° to 176° F)

Conduit Connection

  • 1/2" NPT (1/2" PT, 1/2"PF, M20, 13.5 PG)

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP67

Metric Connection

  • M20 x 1.5 Female

Mounting

  • NAMUR VDI/VDE 3845, ISO 5211

NPT Connection

  • 1/2" NPT Female

Operating Voltages

  • 125/250 Vac, 5 A

PT/PF/PS (JIS) Connection

  • 1/2" PF Female

Supply Voltage

  • 12-24 Vdc

Switch Type

  • 2 Mechanical Switches
  • 2 Proximity Sensors

Terminal Strip

  • 8-Points
