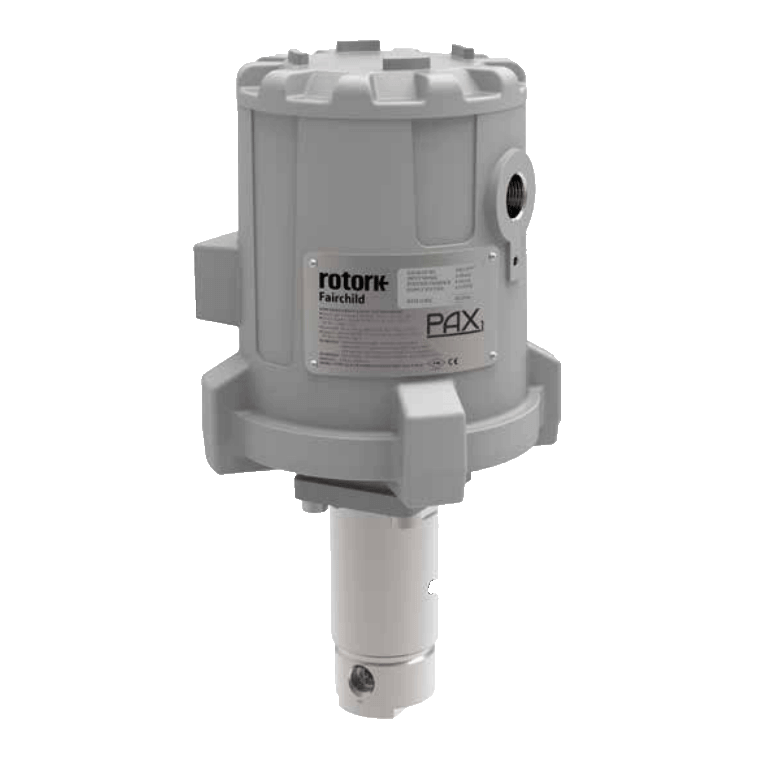

PAX1 Model HPP High Pressure Regulator

Brand: Fairchild Industrial Products
Rotork Fairchild's all new PAX1 Motor Set Pressure Regulator is a flexible low voltage DC powered linear actuator coupled to one of four Fairchild precision pressure regulators capable of controlling pressure ranges of 0-0.5 psig to 0-3,000 psig and housed in a flameproof enclosure.

The unit is inherently lock in last place as the actuator will maintain its position upon loss of electrical power. The Model HPP is a piston sensed low capacity stainless steel high pressure regulator.

A stainless steel supply valve which seats with a polymer seat insures accurate and reliable sealing of the valve providing trouble free operation and provides long life and leak free operation.
Features
  • Three seat material choices for a wide range of chemical compatibility (PEEK, CTFE and Vespel)
  • High maximum supply pressure of 6,000 psig to allow more through put of gas
show more
Images are representations only.
Rotork Fairchild's all new PAX1 Motor Set Pressure Regulator is a flexible low voltage DC powered linear actuator coupled to one of four Fairchild precision pressure regulators capable of controlling pressure ranges of 0-0.5 psig to 0-3,000 psig and housed in a flameproof enclosure.

The unit is inherently lock in last place as the actuator will maintain its position upon loss of electrical power. The Model HPP is a piston sensed low capacity stainless steel high pressure regulator.

A stainless steel supply valve which seats with a polymer seat insures accurate and reliable sealing of the valve providing trouble free operation and provides long life and leak free operation.
Features
  • Three seat material choices for a wide range of chemical compatibility (PEEK, CTFE and Vespel)
  • High maximum supply pressure of 6,000 psig to allow more through put of gas

PAX1 Model HPP

Flow Rate

Pressure Range

Port Size

Port Thread

Port Configuration

Seat Material

Relief

Specifications

Enclosure, Body Material

  • 316L Stainless Steel

Flow Rate

  • Exhaust Valve: 0.02 Cv
  • Supply Valve: 0.06 Cv

Materials of Construction

  • Valve: 316L Stainless Steel

Relief

  • Non-Relieving
  • Relieving, Normal Bleed

Seat/Seal Material

  • Seal: Viton A
  • Seat: CTFE
  • Seat: PEEK
  • Seat: Vespel

Supply Pressure - Maximum

  • psig: 6,000 (bar: 414, kPa: 41,400)

Supply Pressure Effect

  • < 5 psig (34.5 kPa) Change for 100 psig Change in Supply Pressure
