Images are representations only.
Description
- Connector
- Female or Male
- Straight or Right Angle
- Options
- Cable
- Shielded Braided
- PVC Jacket
- Foil/Drain
- Connector
- Nickle Plated Brass
- Anodized Aluminum
- 316 Stainless Steel
- Cable
Configure
D-Size Powerfast Double Ended Cordset
Gender

Configuration

Nut Material

Second End Gender

Second End Configuration

Second End Nut Material

Version / Number of Leadwires

Length

Length

Length

Length

Length

Length

Specifications
Specifications
Brand
Approvals & Certifications
- CSA
Connection Material
- Anodized Aluminum
- Nickel-Plated Brass
- Stainless Steel
Connection Pin-Out
- 3-Pin
- 4-Pin
Connection Style
- Powerfast
Connector Shape
- Right Angle
- Straight
Environmental Protection
- IP10
- IP54
- IP66
- NEMA 1, 3, 4, 6P / IP10, 54, 66
- NEMA 3
- NEMA 4
- NEMA 6P
Operating Temperature
- -40° to 90° C (-40° to 194° F)
Version/Leadwires
- 30: 3 x 10 AWG BK, GN, WH
- 32: 3 x 12 AWG BK, GN, WH
- 34: 3 x 14 AWG BK, GN, WH
- 3-Wire
- 40: 4 x 10 AWG BK, GN, RD, WH
- 42: 4 x 12 AWG BK, GN, RD, WH
- 44: 4 x 14 AWG BK, GN, RD, WH
- 4-Wire
Documentation
Documentation
Certifications & Approvals
Outline Drawings
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

D-Size Powerfast Single Ended Cordset
Turck, Inc.

minifast Double Ended Cordset
Turck, Inc.

HART eurofast Double Ended Cordset
Turck, Inc.

M23 multifast Double Ended Cordset
Turck, Inc.

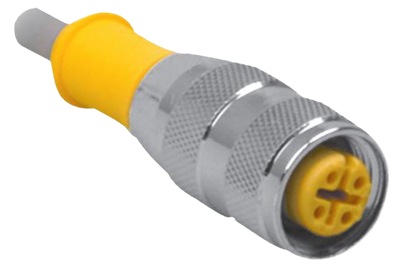

M12 eurofast Double Ended Cordset
Turck, Inc.

M16 versafast Single Ended Cordset
Turck, Inc.

Discrete minifast Double Ended Cordset
Turck, Inc.

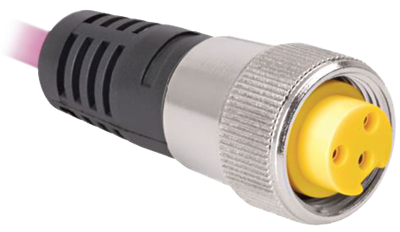

HART minifast Double Ended Cordset
