Images are representations only.

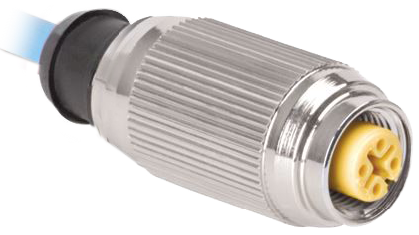

HART eurofast Double Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickel Plated Brass
      • 316 Stainless Steel
  • Control Circuits
    • 2-Wire Analog
    • HART
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickel Plated Brass
      • 316 Stainless Steel
  • Control Circuits
    • 2-Wire Analog
    • HART
44 models matching criteria
TURCK M12 eurofast Drop Cordset, 4-Pin, Female/Male, EX60/Blue, 250V, 8m, NCNR View More
  • Process Cordset:

    • Homerun Cable

  • Connector:
    • "eurofast" Series
    • Female x Male
    • Passivated Stainless Steel
    • 4 Contacts / 5 x #20 AWG Wires

  • Wires:
    • (5) x # 20 AWG Conductors
    • (3) x # 22 Drain/Foil Shield (Paris & Overall)
    • Blue EX60 Jacket

  • Length of Cordset:
    • 8 Meters

  • Temperature Range:
    • -60°C to +105°C (-76°F to +221°F)

  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K

  • Approvals:
    • UL: ITC-ER, PLTC-ER, 105°C, 300V
    • CSA: CIC, 105°C, 300V

16 In Stock
TURCK M12 eurofast Drop Cordset, 4-Pin, Female/Male, EX60/Blue, 250V, 6m, NCNR View More
  • Process Cordset:

    • Homerun Cable

  • Connector:
    • "eurofast" Series
    • Female x Male
    • Passivated Stainless Steel
    • 4 Contacts / 5 x #20 AWG Wires

  • Wires:
    • (5) x # 20 AWG Conductors
    • (3) x # 22 Drain/Foil Shield (Paris & Overall)
    • Blue EX60 Jacket

  • Length of Cordset:
    • 6 Meters

  • Temperature Range:
    • -60°C to +105°C (-76°F to +221°F)

  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K

  • Approvals:
    • UL: ITC-ER, PLTC-ER, 105°C, 300V
    • CSA: CIC, 105°C, 300V

7 In Stock
TURCK M12 eurofast Drop Cordset, 4-Pin, Female/Male, EX60/Blue, 250V, 14m, NCNR View More
  • Process Cordset:

    • Homerun Cable

  • Connector:
    • "eurofast" Series
    • Female x Male
    • Passivated Stainless Steel
    • 4 Contacts / 5 x #20 AWG Wires

  • Wires:
    • (5) x # 20 AWG Conductors
    • (3) x # 22 Drain/Foil Shield (Paris & Overall)
    • Blue EX60 Jacket

  • Length of Cordset:
    • 14 Meters

  • Temperature Range:
    • -60°C to +105°C (-76°F to +221°F)

  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K

  • Approvals:
    • UL: ITC-ER, PLTC-ER, 105°C, 300V
    • CSA: CIC, 105°C, 300V

1 In Stock
TURCK M12 eurofast Cordset, Extremelife/Black, 250V, 15m, NCNR
1 In Stock
TURCK M12 eurofast Cordset, Extremelife/Black, 250V, 2m, NCNR
6 - 9 weeks
$32.45USD
$19.17 Shipping
TURCK M12 eurofast Drop Cordset, 4-Pin, Female/Male, TPU/Black, 250V, 4m, NCNR View More
  • CONTACT CARRIER MATERIAL: NYLON OR TPU
  • MOLDED HEAD MATERIAL/COLOR: TPU/BLACK
  • CONTACT MATERIAL/PLATING: BRASS/GOLD
  • COUPLING NUT MATERIAL/FINISH: STAINLESS STEEL/PASSIVATED
  • RATED CURRENT [A] 4.0 A
  • RATED VOLTAGE [V] 250 v
  • OUTER JACKET MATERIAL/COLOR: EXTREMELIFE/BLACK
  • CONDUCTOR INSULATION MATERIAL: XLPE
  • CONDUCTORS: 3x18 AWG
  • DRAIN/SHIELD: 20 AWG/ALUMINUM-POLYESTER FOIL
  • TEMPERATURE RATING: -60·c to +105·c (-76F to +221F)
  • PROTECTION CLASS: NEMA 1, 3, 4, 6P AND IEC IP68, IP69K
  • CONDUCTOR ARRANGEMENT: 1 SHIELDED TWISTED PAIR w/DRAIN, 1 GROUND
  • CABLE APPROVALS:

  • UL: TC-ER/ITC-ER/PLTC-ER, 105C
    • -40C COLD IMPACT; -60C COLD BEND

  • CSA: CIC/TC, DIRECT BURIAL, 90C, 600V
    • -40C COLD IMPACT; -60C COLD BEND


[/li]
2 - 8 weeks
$95.87USD
$19.17 Shipping
TURCK eurofast Drop Cordset, 5-Pin, Female/Female, TPU/Blue, 250V, 1m, NCNR
2 - 8 weeks
TURCK M12 eurofast Drop Cordset, 5-Pin, Female/Male, PVC/Blue, 250V, 100m, NCNR
2 - 8 weeks
TURCK M12 eurofast Drop Cordset, 5-Pin, Female/Male, PVC/Blue, 250V, 20m, NCNR View More
  • Process Cordset:

    • Analog and Discrete Circuits

  • Connector:
    • "eurofast" Series
    • Female End x Male End
    • Nickel Plated Brass
    • 5 Contacts / 4 x #18 AWG Wires

  • Wires:
    • (4) x # 18 AWG Circuits
    • (1) x # 20 Drain/Foil Shield
    • Blue PVC Jacket

  • Length of Cordset:
    • 20 Meters

  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K

  • Approvals:
    • UL: ITC-ER, Direct Burial/PLTC-ER/AWM, 105°C, 300V
    • CSA: CMX-Outdoor-CMG/AWM, 105°C, 300V

14 - 58 days
TURCK M12 eurofast Drop Cordset, 5-Pin, Female/Male, PVC/Blue, 250V,6m, NCNR View More
  • Process Cordset:

    • Analog and Discrete Circuits

  • Connector:
    • "eurofast" Series
    • Female End x Male End
    • Nickel Plated Brass
    • 5 Contacts / 4 x #18 AWG Wires

  • Wires:
    • (4) x # 18 AWG Circuits
    • (1) x # 20 Drain/Foil Shield
    • Blue PVC Jacket

  • Length of Cordset:
    • 6 Meters

  • Protection Class:
    • NEMA 1,3,4,6P, IEC IP68, IP69K

  • Approvals:
    • UL: ITC-ER, Direct Burial/PLTC-ER/AWM, 105°C, 300V
    • CSA: CMX-Outdoor-CMG/AWM, 105°C, 300V

14 - 58 days

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Connection Material

  • Nickel-Plated Brass
  • Stainless Steel

Connection Pin-Out

  • 4-Pin
  • 5-Pin

Connection Style

  • eurofast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 3-Wire
  • 4T-188: 3 x 18 AWG GN/YE, BN, BU
  • 4T-950: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC PVC
  • 4-Wire
  • 5.31T-840: 4 x 18 AWG WH, BK, RD, GN
  • 5.34-1727: 4 x 18 AWG WH, BK, BU, BN
  • 5.64T-1877: 5 x 22 AWG BN, WH, BU, BK, GY
  • 5-Wire
