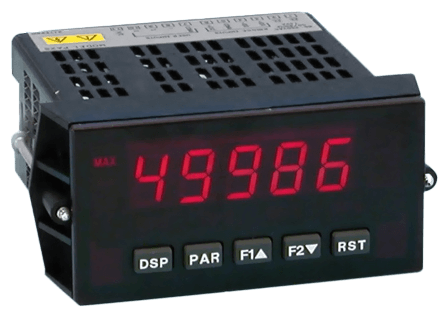

DISP-PAXDP Dual Input Display

Brand: Sensy S.A.
Dual independant process input meter.
Features
  • A math function can be performed on the two signals. Any of the 3 meter values can have alarms, Analog output or comms by adding optional card
  • Intuitive and easy programming (high flexibility)
  • Variable intensity display
  • 16 points scaling for linearization
  • Programmable function keys/user inputs
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • 2 or 4 setpoints with relay outputs
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Desktop or industrial steel housing
    • Rail DIN adaptor
show more
Dual independant process input meter.
Features
  • A math function can be performed on the two signals. Any of the 3 meter values can have alarms, Analog output or comms by adding optional card
  • Intuitive and easy programming (high flexibility)
  • Variable intensity display
  • 16 points scaling for linearization
  • Programmable function keys/user inputs
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • 2 or 4 setpoints with relay outputs
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Desktop or industrial steel housing
    • Rail DIN adaptor

Specifications

Brand

Accuracy

  • 0.1% of Full Scale

Applications

  • Force Measurement
  • Industrial Weighing

Approvals & Certifications

  • CE

Communication

  • FOUNDATION Fieldbus
  • RS-232
  • RS-485
  • USB

Display

  • 5-Digits (14.2 mm)

Environmental Protection

  • IP54
  • IP65 (Splashproof Cover)
  • NEMA 4X

Input

  • ± 10 Vdc
  • ± 20 mA

Output

  • 0-10 V
  • 4-20 mA

Power Supply

  • 18-36 Vdc (13 W)
  • 24 Vac (16 VA)
  • 85-250 Vac (21 VA)

Sensor Excitation

  • 18 Vdc ± 20% (70 mA)

Service Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -40° to 60° C (-40° to 140° F)
