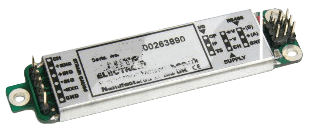

Option-U COND-USB Digitizer

Brand: Sensy S.A.
The options U-RS232, U-RS485 and U-USB convert the signal from a Wheatstone bridge (mV/V) in a standardized digital signal RS-232, RS-485 or USB. Features:
  • Very high resolution
  • Linearization of transducer signal available
  • High transmission speed
  • Internal or external mounting depending of the size of the transducer
  • When external: rectangular box in Aluminum (IP 65)
  • Available options:
    • Temperature measurement with compensation of thermal drifts
show more
Images are representations only.
The options U-RS232, U-RS485 and U-USB convert the signal from a Wheatstone bridge (mV/V) in a standardized digital signal RS-232, RS-485 or USB. Features:
  • Very high resolution
  • Linearization of transducer signal available
  • High transmission speed
  • Internal or external mounting depending of the size of the transducer
  • When external: rectangular box in Aluminum (IP 65)
  • Available options:
    • Temperature measurement with compensation of thermal drifts

Option-U COND-USB

Model

Specifications

Brand

Approvals & Certifications

  • CE

Bandwidth

  • 1 to 500 Hz

Communication

  • Baud Rate: 2.4 to 230 Kbps
  • Baud Rate: 2.4 to 460.8 Kbps
  • RS-232
  • RS-485
  • USB

Consumption

  • Maximum

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65

Input

  • 0.5 to 2.5 mV/V

Linearity

  • ≤ ± 0.003% of Full Scale

Load Impedance

  • 80 to 5,000 ohms - Impedance of Wheatstone Bridge

Mounting

  • Universal Internal or External

Power Supply

  • 4.25 to 5.5 Vdc
  • 5.6 to 18 Vdc

Sensor Excitation

  • 5 Vdc

Service Temperature

  • -40° to 85° C (-40° to 185° F)

Temperature Coefficient

  • <± 0.01% of Full Scale/10° C (18° F)
  • <± 0.05% of Full Scale/10° C (18° F)
