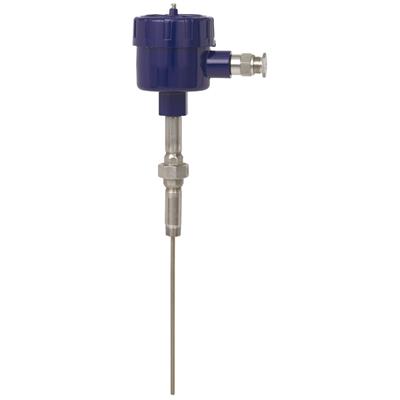

Resistance Thermometer - TR10-H

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Resistance thermometers without thermowell are particularly suitable for those applications in which the metal sensor tip is mounted directly into bored holes (e.g. in machine components) or directly into the process for any application with no chemically aggressive media or abrasion.
Features
  • Application ranges from -200 ... +600 °C (-328 ... +1,112 °F).
  • For insertion, screw-in with optional process connection.

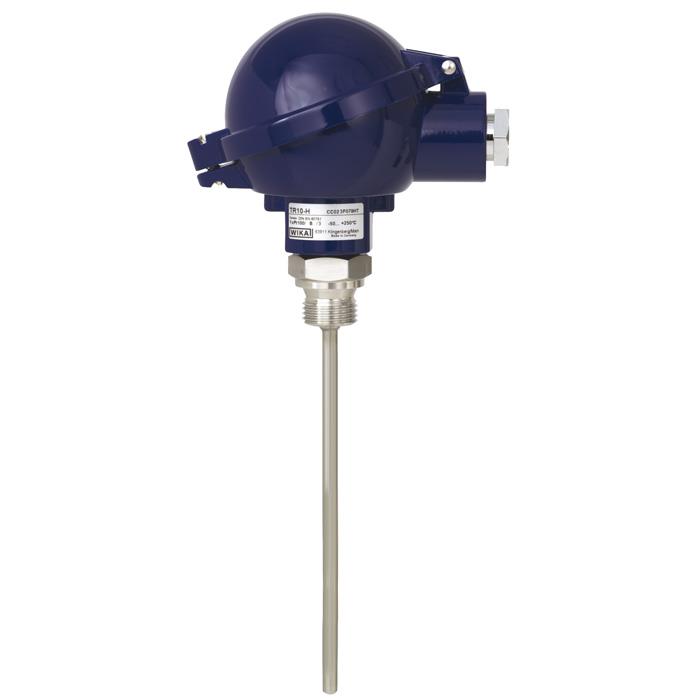

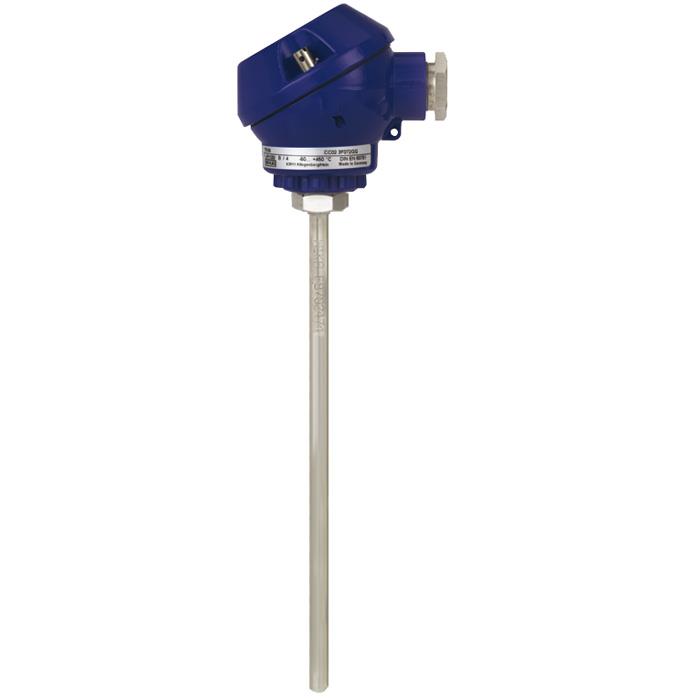

  • Connection head form B or JS.
  • Explosion-protected version.
show more
Resistance thermometers without thermowell are particularly suitable for those applications in which the metal sensor tip is mounted directly into bored holes (e.g. in machine components) or directly into the process for any application with no chemically aggressive media or abrasion.
Features
  • Application ranges from -200 ... +600 °C (-328 ... +1,112 °F).
  • For insertion, screw-in with optional process connection.
  • Connection head form B or JS.
  • Explosion-protected version.
Close

Specifications

Brand

Sensor Range

  • -196 to 600° C (-320 to 1,112° F)

Certifications & Approvals

  • Uzstandard
  • UkrSEPRO
  • BelGIM
  • MTSCHS
  • KazInMetr
  • GOST
  • DNOP - MakNII
  • PESO
  • KOSHA
  • NEPSI
  • INMETRO
  • EAC
  • IECEx
  • CE

Connection Method

  • 2 x 2-Wire, 3-Wire, 4-Wire
  • 1 x 2-Wire, 3-Wire, 4-Wire

Material of Construction

  • Connection Head: Aluminum, Stainless Steel, Plastic

Environmental Protection

  • IP68
  • IP66
  • IP65

Output Signal

  • 4-20 mA
  • HART Protocol
  • FOUNDATION Fieldbus and PROFIBUS PA
Close

Typical Applications

  • For direct installation into the process
  • Machine building
  • Motors
  • Bearings
  • Pipelines and vessels
