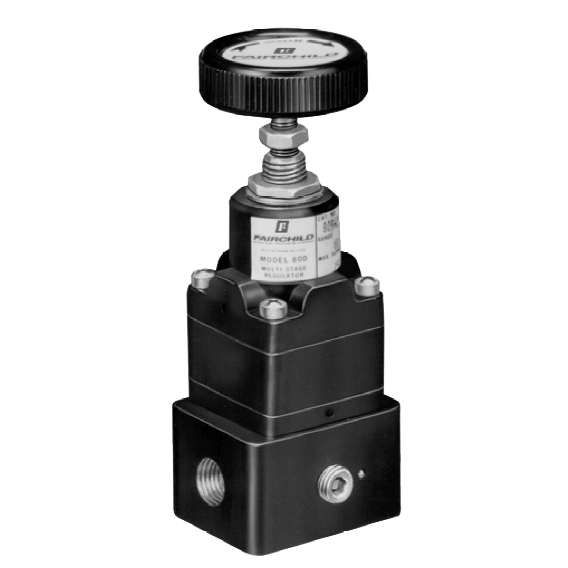

Model 80D Compact Multi-Stage Precision Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 80 is a compact two stage precision pressure regulator designed for applications that require high performance, low droop and accurate process control in a smaller footprint, where space may be limited or you wish to reduce the overall size of your panel or equipment. This compact, high quality pneumatic regulator combines the flow capacity of a process regulator with the precision of an instrument regulator.

The Model 80 features control sensitivity of less than 0.1" water column, very low consumption and high accuracy to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 80 precision regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers three (3) output pressure ranges from 0-20 psi, 0-1.5 BAR, 0-150 kPa up to 1-100 psi, 0.05-7 BAR, 7-700 kPa.
Features
  • Sensitivity of less than 0.1" water column
  • Compact size
  • Force balance and two stage pilot control
  • Excellent frequency response
  • Sapphire Orifice
  • Low air consumption
  • Available in 1/8", 1/4" and 3/8" NPT port sizes
show more
The Rotork Fairchild Model 80 is a compact two stage precision pressure regulator designed for applications that require high performance, low droop and accurate process control in a smaller footprint, where space may be limited or you wish to reduce the overall size of your panel or equipment. This compact, high quality pneumatic regulator combines the flow capacity of a process regulator with the precision of an instrument regulator.

The Model 80 features control sensitivity of less than 0.1" water column, very low consumption and high accuracy to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 80 precision regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers three (3) output pressure ranges from 0-20 psi, 0-1.5 BAR, 0-150 kPa up to 1-100 psi, 0.05-7 BAR, 7-700 kPa.
Features
  • Sensitivity of less than 0.1" water column
  • Compact size
  • Force balance and two stage pilot control
  • Excellent frequency response
  • Sapphire Orifice
  • Low air consumption
  • Available in 1/8", 1/4" and 3/8" NPT port sizes

Specifications

Actuator Type

  • Tamper-Proof

Adjustment Type

  • Screw

Air Consumption

  • < 0.1 scfm (0.17 m³/hour)

Ambient Temperature Range

  • -40° to 93.3° C (-40° to 200° F)

BSP Connection

  • 1/4" BSPT Female
  • 1/8" BSPT Female
  • 3/8" BSPT Female

Diaphragm Material

  • Dacron
  • Nitrile

Enclosure, Body Material

  • Aluminum

Exhaust Capacity - Relieving Units Only

  • 2.5 scfm (4.25 m³/hour)

Exhaust Port

  • Tapped Exhaust

Flow Capacity

  • 14 scfm (23.8 m³/hour)

Mounting

  • Bonnet Mounting

NPT Connection

  • 1/4" NPT Female
  • 1/8" NPT Female
  • 3/8" NPT Female

Orifice Material

  • Sapphire

Pressure Range

  • bar: 0 to 7
  • kPa: 0 to 700
  • psig: 0 to 100

Sensitivity

  • < 0.1" WC (0.25 cm)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • less than psig: 0.2 (bar: 0.0014, kPa: 1.4) for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Zinc-Plated Steel
