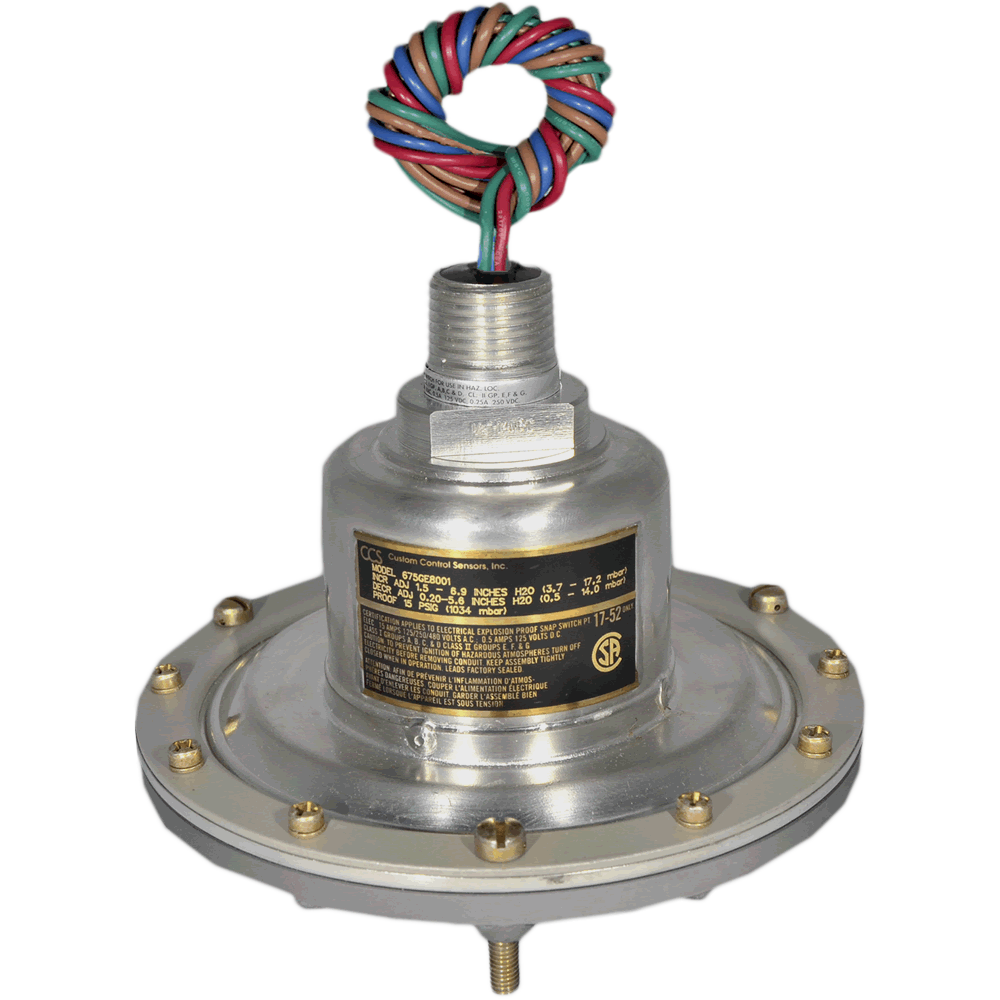

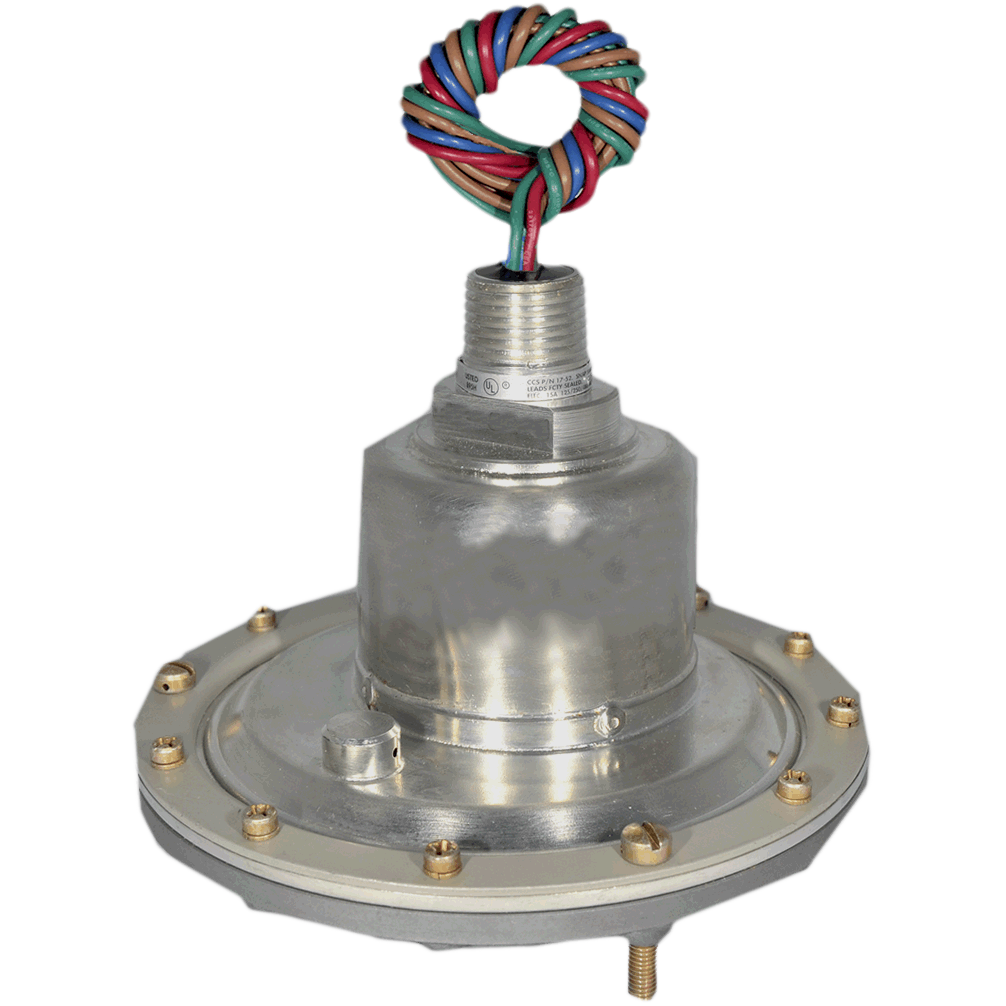

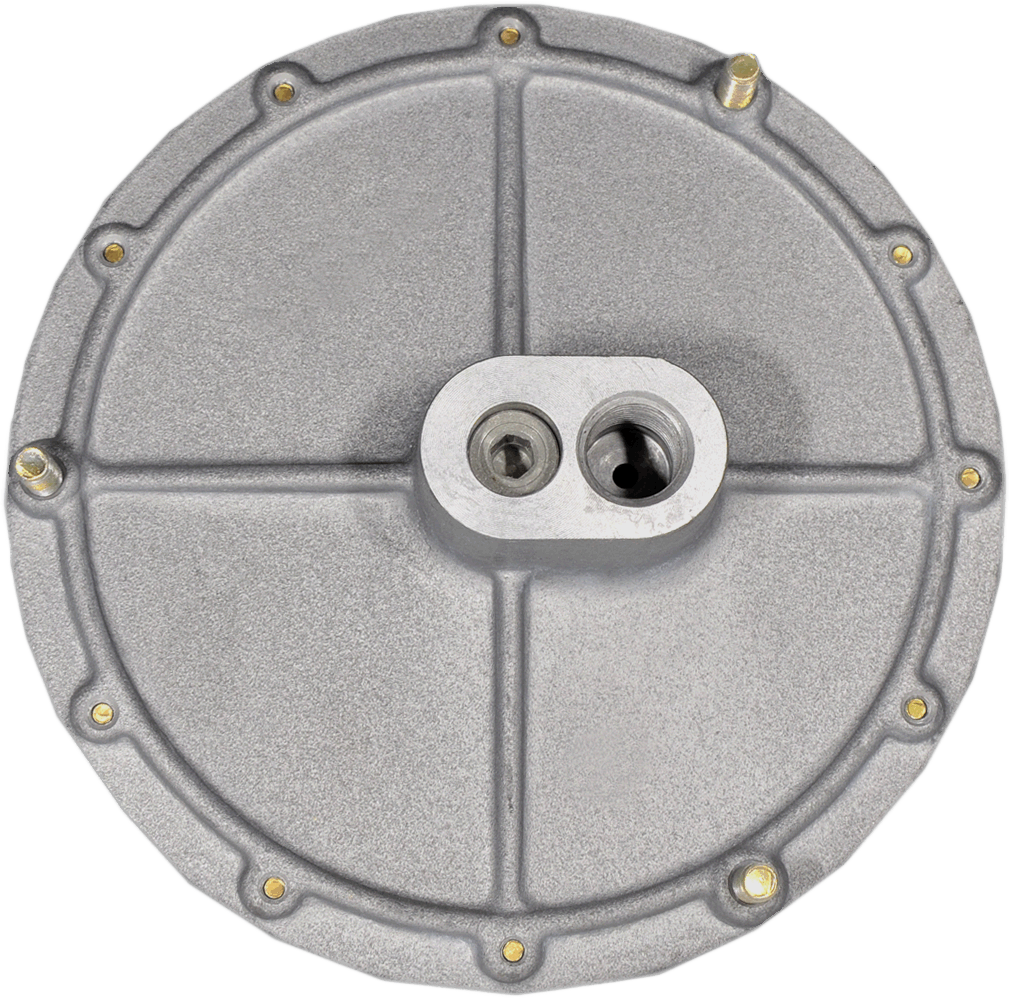

675GE Series Pressure Switch

Brand: Custom Control Sensors
Features
  • Fixed Set Point Range:
    • Increasing: 1.5 to 30 Inches H20, 3.7 to 75 mbar
    • Decreasing: 0.8 to 27 Inches H20, 1.99 to 67.2 mbar
  • Deadband: Approximately:
    • At Bottom of Range: 0.7 Inches H20, 1.7 mbar
    • At Top of Range: 3.0 Inches H20, 7.5 mbar
  • Maximum System Pressure: 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa, 1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  •  Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
show more
Features
  • Fixed Set Point Range:
    • Increasing: 1.5 to 30 Inches H20, 3.7 to 75 mbar
    • Decreasing: 0.8 to 27 Inches H20, 1.99 to 67.2 mbar
  • Deadband: Approximately:
    • At Bottom of Range: 0.7 Inches H20, 1.7 mbar
    • At Top of Range: 3.0 Inches H20, 7.5 mbar
  • Maximum System Pressure: 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa, 1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  •  Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
109 models matching criteria
675DES8001
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 2 to 6.9 Inches H2O, 5 to 17.2 mbar
    • Decreasing: 0.2 to 5.1 Inches H20, 0.58 to 12.7 mbar
  • Deadband: Approximately:
    • 1.5 Inches H20, 3.7 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 25 psig, 172.42 kPa, 1724 mbar
    • High: 25 psig, 172.42 kPa, 1724 mbar
    • Low: 25 psig, 172.42 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675VES8001
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 2 to 6.9 Inches H2O, 5 to 17.2 mbar
    • Decreasing: 0.2 to 5.1 Inches H2O, 0.5 to 12.73 mbar
  • Deadband: Approximately 1.5 Inches H20, 3.7 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 25 psig, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675DES8002
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 7 to 12.9 Inches H20, 17.4 to 32.1 mbar
    • Decreasing: 5.5 to 11.4 Inches H20, 13.7 to 28.4 mbar
  • Deadband: Approximately 1.5 Inches H20, 3.7 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 25 psig, 172.42 kPa, 1724 mbar
    • High: 25 psig, 172.42 kPa, 1724 mbar
    • Low: 25 psig, 172.42 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675DES8003
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 13 to 18.9 Inches H2O, 32.4 to 47.1 mbar
    • Decreasing: 11 to 16.9 Inches H2O, 27.4 to 42.1 mbar
  • Deadband: Approximately 2.0 Inches H20, 5.0 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 25 psig, 172.42 kPa, 1724 mbar
    • High: 25 psig, 172.42 kPa, 1724 mbar
    • Low: 25 psig, 172.42 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675DES8004
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 19 to 24.9 Inches H20, 47.3 to 62 mbar
    • Decreasing: 16.5 to 22.4 Inches H20, 41.1 to 55.8 mbar
  • Deadband: Approximately 2.5 Inches H20, 6.2 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 25 psig, 172.42 kPa, 1724 mbar
    • High: 25 psig, 172.42 kPa, 1724 mbar
    • Low: 25 psig, 172.42 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675DES8005
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 25 to 31 Inches H20, 62.3 to 77.2 mbar
    • Decreasing: 22 to 28 Inches H20, 54.8 to 69.8 mbar
  • Deadband: Approximately 3 Inches H20, 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 25 psig, 172.42 kPa, 1724 mbar
    • High: 25 psig, 172.42 kPa, 1724 mbar
    • Low: 25 psig, 172.42 kPa, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675GES8001
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 2 to 6.9 Inches H20, 4.9 to 17.2 mbar
    • Decreasing: 0.2 to 5.1 Inches H20, 0.5 to 12.7 mbar
  • Deadband: Approximately 1.5 Inches H20, 3.7 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 25 psig, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675GES8003
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 13 to 18.9 Inches H2O, 32.4 to 47.1 mbar
    • Decreasing: 11 to 16.9 Inches H2O, 27.4 to 42.1 mbar
  • Deadband: Approximately 2.0 Inches H20, 5 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 25 psig, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675GES8004
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 19 to 24.9 Inches H2O, 47.3 to 62 mbar
    • Decreasing: 16.5 to 22.4 Inches H20, 41.1 to 55.8 mbar
  • Deadband: Approximately 2.5 Inches H20, 6.2 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 25 psig, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US
675GES8005
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 25 to 31 Inches H2O, 62.3 to 77.2 mbar
    • Decreasing: 22 to 28 Inches H20, 54.8 to 69.8 mbar
  • Deadband: Approximately 3 Inches H20, 7.5 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 25 psig, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
Contact For Inventory
$1,336.88 USD
Does not ship to US

Specifications

Adjustment Type

  • Factory Set (Pre-Set)
  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - N.W. Territories
  • CSA
  • cUL
  • Dual Seal
  • EMC
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate - Bottom of Range

  • Inches WC: 0.7
  • mbar: 1.7

Deadband, Approximate - Top of Range

  • Inches WC: 3.0
  • mbar: 7.5

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18" (45 cm) Free Leads

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • ATEX - Baseefa Certified for Potentially Explosive Atmospheres. Models 675**Y, II 2 GD Ex D IIC, Baseefa 08-ATEX-0347X. (Option Y)
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 17-51 (17-73 for M Model Option), Listed by Both Underwriter’s Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA)Testing Laboratories (File No. L

Electrical Connectors

  • 1/2" NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.5 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • kPa: 103.42
  • mbar: 1034
  • psig: 15

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.002 to 0.06
  • Inches WC: -0.8 to 27
  • kPa: 1.0 to 6.7
  • mbar: 1.99 to 67.2
  • psig: 0.03 to 0.97

Set Point - Increasing

  • bar: 0.004 to 0.74
  • Inches WC: -1.5 to 30
  • kPa: 0.38 to 7.46
  • mbar: 3.7 to 75
  • psig: 0.06 to 1.08

Switch Type

  • DPDT
  • SPDT

System Pressure

  • kPa: 68.95
  • mbar: 689
  • psig: 10
