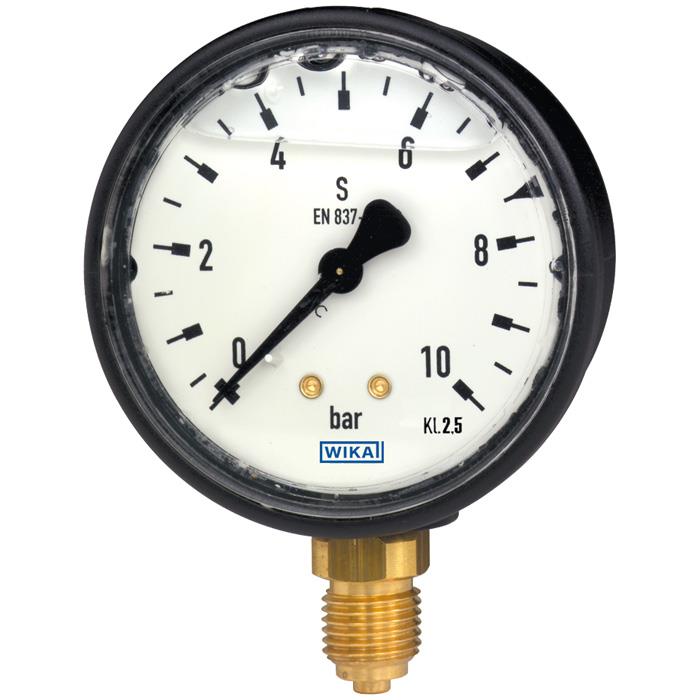

Bourdon Tube Pressure Gauge, Copper Alloy - 113.13

Brand: WIKA Instruments Ltd.
The hydraulic pressure gauge model 113.13 is a liquid-filled mechanical pressure gauge with plastic case.

The liquid filling causes damping of the internal components and contributes to an increased vibration resistance and shock resistance.
Features
  • Vibration and shock resistant.
  • Design per EN 837-1.
  • Scale ranges up to 0 ... 400 bar.
show more
Images are representations only.
The hydraulic pressure gauge model 113.13 is a liquid-filled mechanical pressure gauge with plastic case.

The liquid filling causes damping of the internal components and contributes to an increased vibration resistance and shock resistance.
Features
  • Vibration and shock resistant.
  • Design per EN 837-1.
  • Scale ranges up to 0 ... 400 bar.

Specifications

Version

  • EN 837-1

Nominal Size in mm

  • 63
  • 50
  • 40

Accuracy Class

  • 2.5

Scale Ranges

  • 0 to 1.6 to 0 to 400 bar or all other equivalent vacuum or combined pressure and vacuum ranges

Pressure Limitation

  • Short time: Full scale value
  • Fluctuating: 2/3 x full scale value
  • Steady: 3/4 x full scale value

Permissible Temperature

  • Ambient: -20 … +60° C
  • Medium: +60° C maximum

Temperature effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): max. ±0.4 %/10 K of the span

Process Connection

  • NS 40: Centre back mount, G ⅛" B (male), SW 14,NS 50, 63: G ¼" B (male), SW 14
  • Lower mount (radial) or centre back mount
  • Copper alloy

Pressure Element

  • Copper alloy

Movement

  • Copper alloy

Dial

  • Plastic, white, black lettering, with pointer stop pin

Pointer

  • Plastic, black

Case

  • Plastic, black

Window

  • Plastic, crystal-clear (PMMA), welded with case

Filling Liquid

  • Glycerine

Ingress Protection

  • IP65 per EN/lEC 60529

Typical Applications

  • For measuring points with high dynamic pressure loads or vibrations
  • For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
  • Hydraulics
  • Compressors
