1073 Shutdown Valve

Brand: Bifold Group
Master shutdown valve Type 1073 is a pilot-operated, three port, two position poppet valve with a spring-return action.
Features
  • Working Pressure: 690 bar (10,000 psi) maximum
  • Pilot Pressure: 2.1 to 10.3 bar (30 to 150 psi)
  • Connections: 1/4" NPT all ports
  • Leakage Rate: 4 ml/hour maximum
  • Flow Rate, Nominal: 27 litres/min (6 imp galls/min)
  • Operating Media - Poppet Section: Mineral oils, water, water-glycol mixtures
  • Operating Media - Pilot Section: Air, sour gas or one of the poppet media
  • Working Temperature: -20º to 130º C (-4° to 266° F)
  • Recommended Filtration: 10 micron
show more

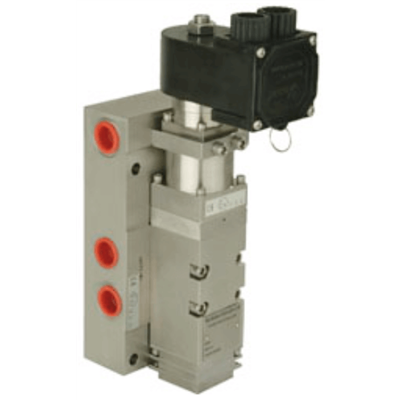

Images are representations only.
Master shutdown valve Type 1073 is a pilot-operated, three port, two position poppet valve with a spring-return action.
Features
  • Working Pressure: 690 bar (10,000 psi) maximum
  • Pilot Pressure: 2.1 to 10.3 bar (30 to 150 psi)
  • Connections: 1/4" NPT all ports
  • Leakage Rate: 4 ml/hour maximum
  • Flow Rate, Nominal: 27 litres/min (6 imp galls/min)
  • Operating Media - Poppet Section: Mineral oils, water, water-glycol mixtures
  • Operating Media - Pilot Section: Air, sour gas or one of the poppet media
  • Working Temperature: -20º to 130º C (-4° to 266° F)
  • Recommended Filtration: 10 micron

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CE
  • UKAS

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1/4" NPT Female
