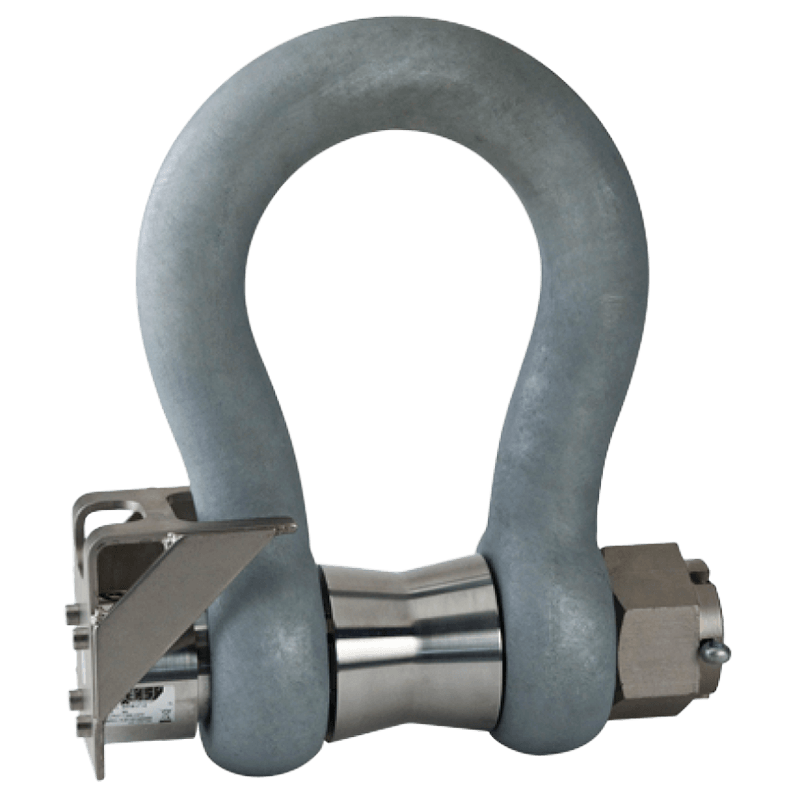

5000M Dynamometric Shackle

Brand: Sensy S.A.
Request a Quote
Favorite
Load measuring shackle designed to measure a tension force.
Features
  • CE certified for hoisting applications
  • Sturdy design
  • Load-pin: stainless steel
  • Protection IP 65
  • Easy to install
  • Complete range of "CE" certified electronics and load limiters
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • Protection IP 68 or special for marine environment
show more
Images are representations only.
Load measuring shackle designed to measure a tension force.
Features
  • CE certified for hoisting applications
  • Sturdy design
  • Load-pin: stainless steel
  • Protection IP 65
  • Easy to install
  • Complete range of "CE" certified electronics and load limiters
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • Protection IP 68 or special for marine environment
Close

Specifications

Brand

Applications

  • SL-FORCE: Force Measuring Test Bench
  • SL-FORCE: Industrial Weighing
  • SL - HOIST: Hoisting Devices & Crane's Security in Combination with a Load Limitation Electronics

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE
  • CSA
  • IECEx

Capacity

  • 1 to 400 T
  • 500 to 1500 T

Communication

  • RS-232C, RS-485
  • USB

Electrical Connectors

  • DIN 45322

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65
  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Load

  • > 300% to > 500% of Full Scale - Breaking

Load Limit

  • 150% (SL-FORCE) to 200% (SL-HOIST) of Full Scale

Repeatability

  • Error: <± 0.25% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Nominal Sensitivity: 1 to 1.5 mV/V

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 100% to 150% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.2% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
