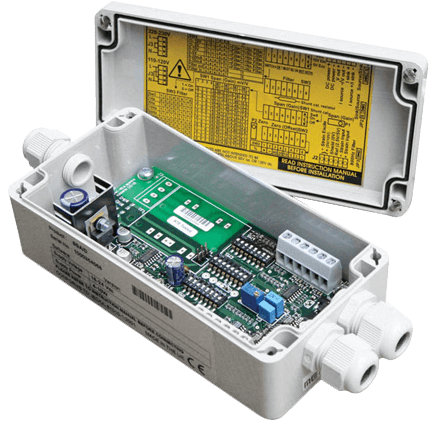

COND-SGA Conditioner - Amplifier

Brand: Sensy S.A.
The conditioner - amplifier COND-SGA provides standardized signals in current and voltage from every load cells, force transducers and torque sensors based on the strain-gauge technology.
Features
  • Input: Wheatstone bridge 0.1 to 30 mV/V
  • Output: 4(0) to 20 mA, -10 to 10 V
  •  Low cost
  • Enclosure: ABS case
show more
Images are representations only.
The conditioner - amplifier COND-SGA provides standardized signals in current and voltage from every load cells, force transducers and torque sensors based on the strain-gauge technology.
Features
  • Input: Wheatstone bridge 0.1 to 30 mV/V
  • Output: 4(0) to 20 mA, -10 to 10 V
  •  Low cost
  • Enclosure: ABS case

COND-SGA

Power Supply

Specifications

Brand

Applications

  • Industrial Force
  • Industrial Weighing
  • Torque Measurement

Approvals & Certifications

  • CE

Bandwidth

  • 0 to 6,000 Hz

Enclosure, Body Material

  • ABS

Environmental Protection

  • IP65

Input

  • 0.1-30 mV/V

Linearity

  • < 0.03% of Full Scale

Output

  • 0-20 mA (Load Resistance ≤ 500 ohms)
  • 4-20 mA (Load Resistance ≤ 500 ohms)
  • Output Tension: 0-10 V (Load Resistance ≥ 5,000 ohms)
  • Output Tension: -10-10 V (Load Resistance ≥ 5,000 ohms)

Power Supply

  • 115-230 Vac
  • 18-24 Vdc

Sensor Excitation

  • 10 Vdc
  • 5 Vdc

Service Temperature

  • -10° to +50° C (14° to 122° F)

Storage Temperature

  • -20° to 70° C (-4° to 158° F)

Temperature Coefficient

  • <± 0.01% of Full Scale/10° C (18° F) - Temperature Coefficient of Zero Signal & Sensitivity
