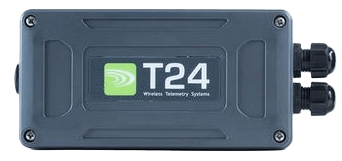

T24-AO1 Wireless Analog Output Receiver Module

Brand: Sensy - Sensors & Synergy S.A.
WIRELESS-T24-AO1 and WIRELESS-T24-AO1i converts data from a WI-T24-ACM module into an Analog output.
Features
  • Voltage and current output
  • Frequency: 2.4 GHz
  • Power: 10 mW
  • License: exemption
  • Up to 2000 updates/Second
  • High accuracy
  • High resolution
show more
WIRELESS-T24-AO1 and WIRELESS-T24-AO1i converts data from a WI-T24-ACM module into an Analog output.
Features
  • Voltage and current output
  • Frequency: 2.4 GHz
  • Power: 10 mW
  • License: exemption
  • Up to 2000 updates/Second
  • High accuracy
  • High resolution

Specifications

Communication

  • Wireless

Consumption

  • 100 mA Typical

Current

  • 0-20 mA
  • 4-20 mA

Environmental Protection

  • IP50
  • IP67

Excitation Voltage

  • 9-32 Vdc - Nominal Range

Frequency

  • 2.4 GHz

Linearity

  • ± 0.01 % of Full Scale
  • ± 0.02 % of Full Scale

Power

  • 10 mW

Range

  • Up to 2624.7 feet (800 metres) (T24-AO1 / i-V/mA)
  • Up to 328 feet (100 metres) (T24-AO1-V/mA)

Resistance

  • ≤ 500 ohms
  • ≥ 5000 ohms

Resolution

  • 65,000 Div.

Supply Voltage

  • 0-10 V

Temperature Coefficient

  • ± 0.15 % of Full Scale/10° C (18° F) - Zero Signal, Sensitivity
  • ± 0.2 % of Full Scale/10° C (18° F) - Zero Signal
  • ± 0.3 % of Full Scale/10° C (18° F) - Sensitivity
