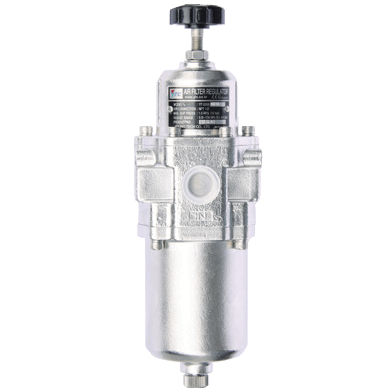

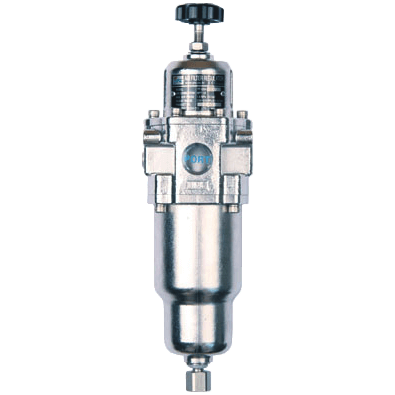

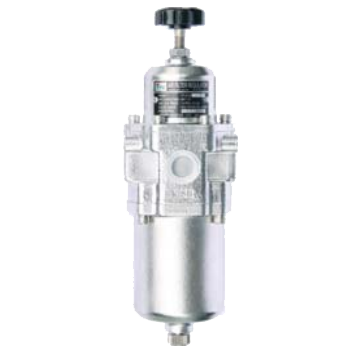

YT-225 1/2" Air Filter Regulator

Brand: Young Tech Co., Ltd
Air filter regulator suitable reduces plant's main air supply pressure and supplies to valve positioner(s) or control device(s). Maintain stable outlet pressure.
Features
  • Lightweight and compact size
  • 5 micron filter
  • Relief function
  • Discharge pressure if outer pressure is higher than set pressure
  • Adjustable Set Point Range: psig: 0 to 121.8 (bar: 0 to 8.4, kPa: 0 to 840)
  • Maximum Supply Pressure: psig: 246 (bar: 17, kPa: 1,700)
  • Process Connection: 1/2" NPT Threads
  • Drain: Manual or Automatic
  • Filter: 5 Micron mimimum particle size
  • Material: Aluminum
  • Temperature Range:
    • -20°C to 70°C (-4°F to 158°F)
    • -20°C to 120°C (-4°F to 248°F)
    • -40°C to 70°C (-40°F to 158°F)
show more
Images are representations only.
Air filter regulator suitable reduces plant's main air supply pressure and supplies to valve positioner(s) or control device(s). Maintain stable outlet pressure.
Features
  • Lightweight and compact size
  • 5 micron filter
  • Relief function
  • Discharge pressure if outer pressure is higher than set pressure
  • Adjustable Set Point Range: psig: 0 to 121.8 (bar: 0 to 8.4, kPa: 0 to 840)
  • Maximum Supply Pressure: psig: 246 (bar: 17, kPa: 1,700)
  • Process Connection: 1/2" NPT Threads
  • Drain: Manual or Automatic
  • Filter: 5 Micron mimimum particle size
  • Material: Aluminum
  • Temperature Range:
    • -20°C to 70°C (-4°F to 158°F)
    • -20°C to 120°C (-4°F to 248°F)
    • -40°C to 70°C (-40°F to 158°F)

YT-225

Pressure Range

Gauge

Temperature Range

Drain

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • 316 Stainless Steel

Filter

  • 5 microns

Gauge Connection

  • 1/4" NPT

Media

  • Air

NPT Connection

  • 1/2" NPT Female

Pressure Range

  • bar: 0 to 8.4
  • kPa: 0 to 840
  • MPa: 0 to 0.84
  • psig: 0 to 121

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • MPa: 1.7
  • psi: 246
