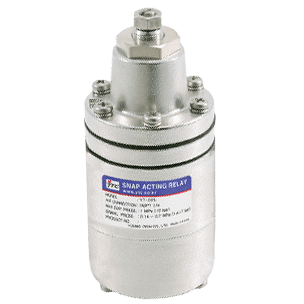

YT-525 Snap Acting Relay

Brand: Young Tech Co., Ltd
The YT-525 Snap Acting Relay senses supply pressure and changes the direction of the air flow when supply pressure is lower than setting pressure. It also provides "Fail-Position" function when the supply pressure gets lower especially when there is damages on pipelines.

Features
  • Responds to very small changes and has high accuracy.
  • Versatility can be enhanced by having different material and capacity.
  • 100 mesh screen filters small dust entering.
  • Switches pressure flows when abnormal pressure detected
  • Stem can be extended and connected
  • Able to lock actuator in its position
show more
Images are representations only.
The YT-525 Snap Acting Relay senses supply pressure and changes the direction of the air flow when supply pressure is lower than setting pressure. It also provides "Fail-Position" function when the supply pressure gets lower especially when there is damages on pipelines.

Features
  • Responds to very small changes and has high accuracy.
  • Versatility can be enhanced by having different material and capacity.
  • 100 mesh screen filters small dust entering.
  • Switches pressure flows when abnormal pressure detected
  • Stem can be extended and connected
  • Able to lock actuator in its position

The Part Numbers and SKU's listed may not currently be in stock. Please find the part number you are looking for and request a quote to determine availability

1 - 1 of 1 Part Numbers
YT-525D21
YT-525D21
YTC YOUNG TECH Model YT-525 Snap-Acting Relay, 1/4" NPT, Double-Acting, 0.14 - 0.7 MPa, -20° C to +70° C

Overview

  • YT-525:  Snap Acting Relay
  • D:   Double Acting
  • 2:   NPT
  • 1:   -20 to 70C Ambient Temperature

Max. Supply Pressure:  1MPa (10 bar)

Signal Pressure:  0.14~0.7 MPa (1.4~7 bar)

​Signal Connection:  NPT 1/4"

Material:  Stainless Steel
1 - 1 of 1 Part Numbers

YT-525

Acting Type

Temperature Range

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • 0.9 Cv

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • MPa: 0.14 to 0.7
  • psig: 2 to 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
