Model 20 Pneumatic Precision Volume Booster

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 20 Volume Booster is a smaller pneumatic device capable of high flow and exhaust capacity. This device uses a force balance system to control the movement of the supply and exhaust valves.

As a pilot operated regulator design, the M20 handles up to 150 psig, [10.0 BAR], (1,000 kPa) supply pressure and has ten available ratios to cover a wide range of applications. The M20 Booster provides a flow capacity of 45 SCFM (76.5 m3/HR), which equates to a Cv factor of approximately 1.0 in forward mode.

Typical Part Numbers are 20812, 20822, 20832, 20842, 20852, 20862, 20813, 20823, 20833, 20843, 20853, 20863
Features
  • Flow capacity of 45 SCFM (76.5 m3/HR)
  • Ten available pressure ratios
  • Optional Adjustable By-Pass Needle Valve option includes bubble tight exhaust valve
  • Optional Fixed Negative Bias
  • A separate Control Chamber isolates the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
  • Canadian Registration Number (CRN) Certification
show more

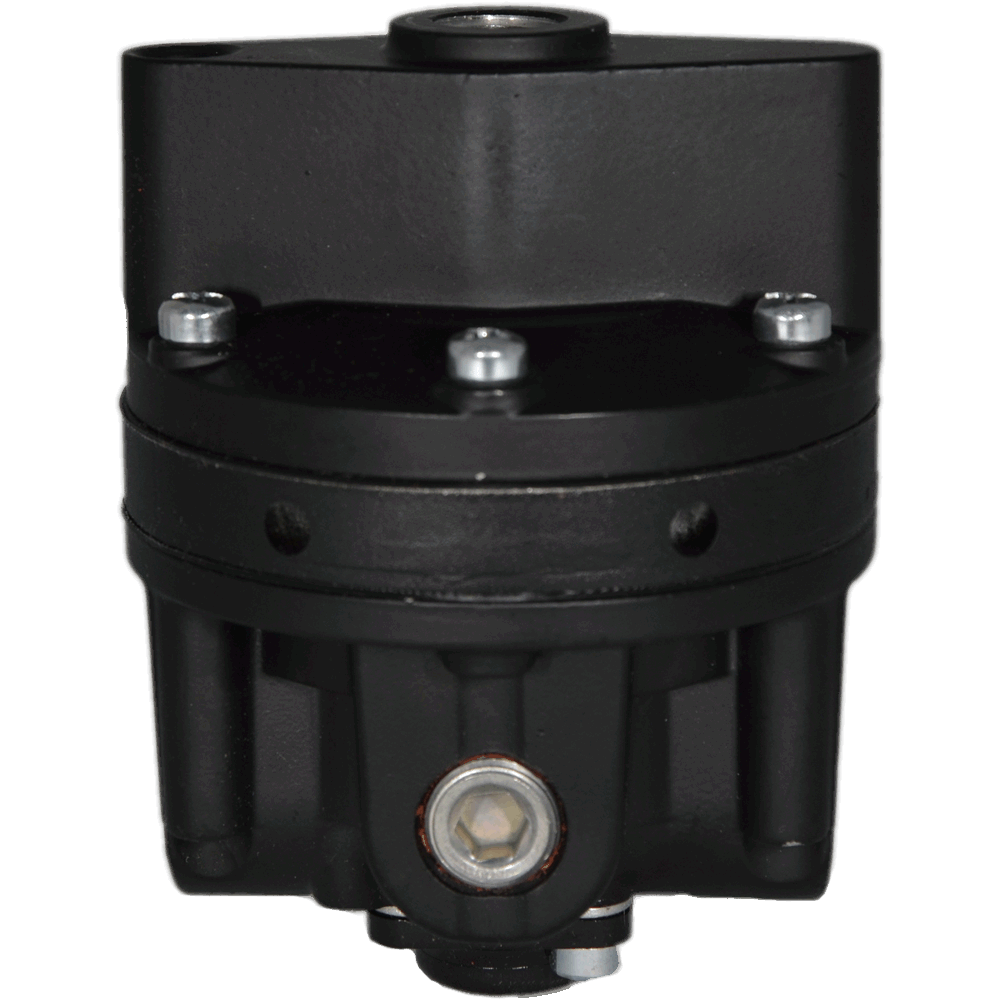

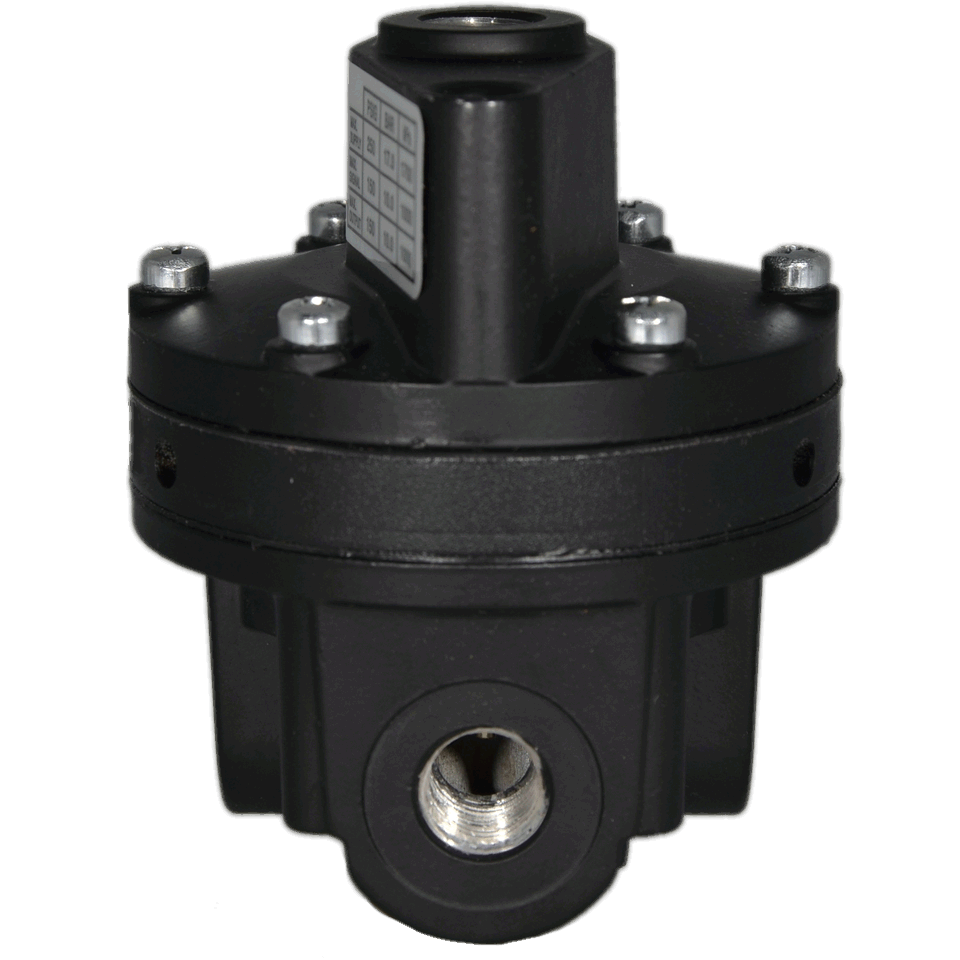

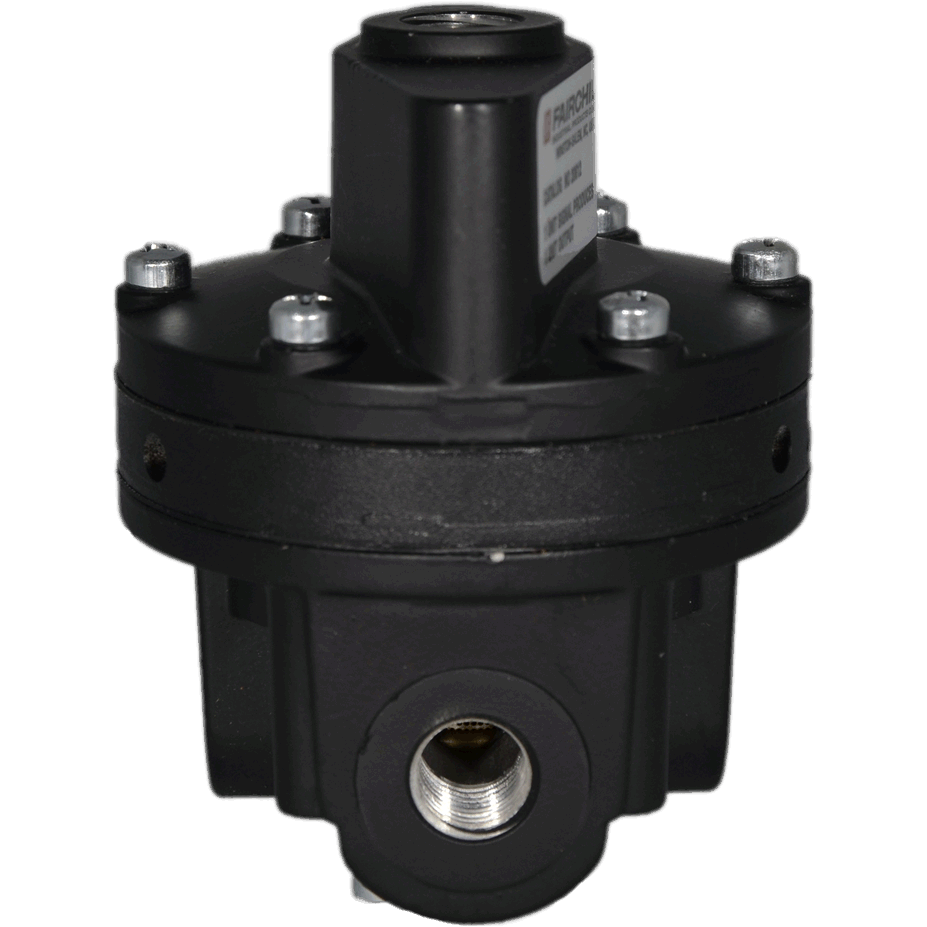

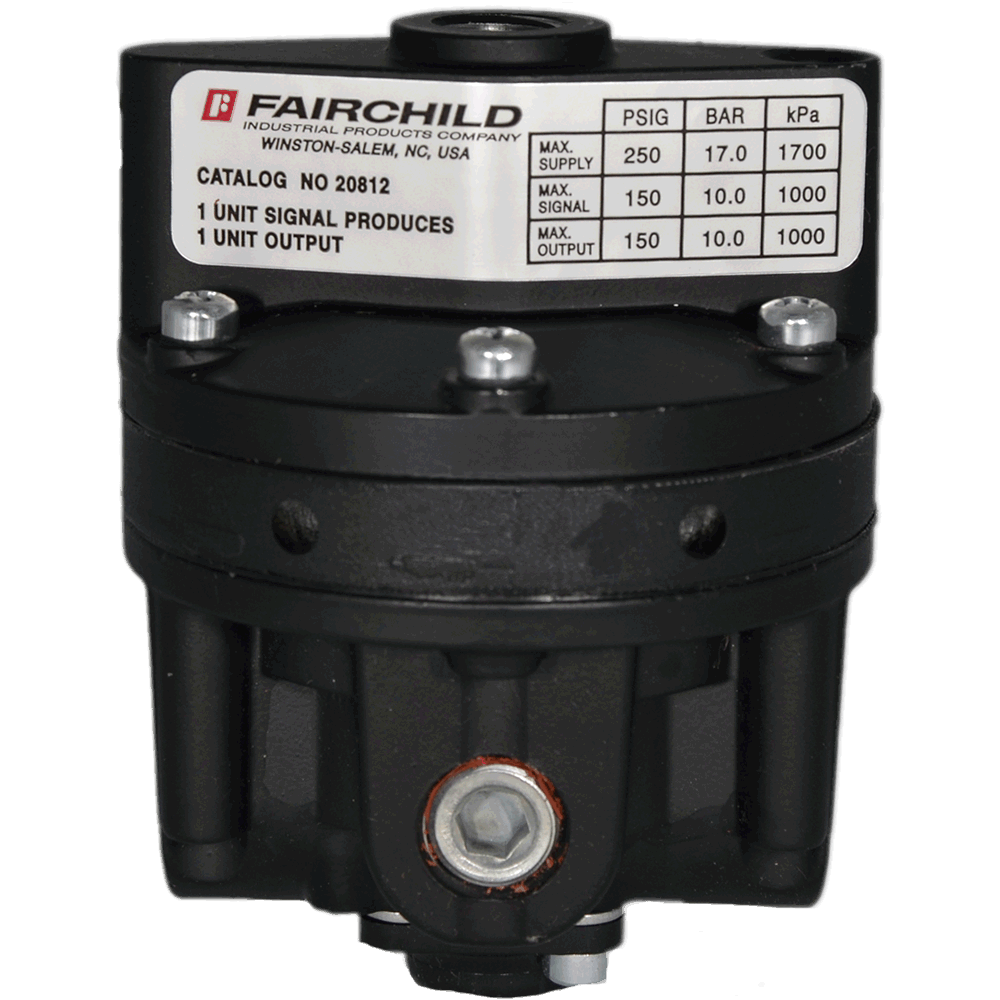

Images are representations only.
The Rotork Fairchild Model 20 Volume Booster is a smaller pneumatic device capable of high flow and exhaust capacity. This device uses a force balance system to control the movement of the supply and exhaust valves.

As a pilot operated regulator design, the M20 handles up to 150 psig, [10.0 BAR], (1,000 kPa) supply pressure and has ten available ratios to cover a wide range of applications. The M20 Booster provides a flow capacity of 45 SCFM (76.5 m3/HR), which equates to a Cv factor of approximately 1.0 in forward mode.

Typical Part Numbers are 20812, 20822, 20832, 20842, 20852, 20862, 20813, 20823, 20833, 20843, 20853, 20863
Features
  • Flow capacity of 45 SCFM (76.5 m3/HR)
  • Ten available pressure ratios
  • Optional Adjustable By-Pass Needle Valve option includes bubble tight exhaust valve
  • Optional Fixed Negative Bias
  • A separate Control Chamber isolates the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
  • Canadian Registration Number (CRN) Certification
38 models matching criteria
20822
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:2 Ratio, 1/4" NPT
23 In Stock
$304.04USD
$8.25 Shipping
20813
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 3/8" NPT
21 In Stock
$280.08USD
$8.25 Shipping
20842E
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 2:1 Ratio, 1/4" NPT, Tapped Exhaust
7 In Stock
$458.53USD
$8.25 Shipping
20812
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 1/4" NPT
5 In Stock
$280.08USD
$8.25 Shipping
20813I
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 3/8" NPT, By-Pass Valve
4 In Stock
$345.34USD
$8.25 Shipping
20812E
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 1/4" NPT, Tapped Exhaust
2 In Stock
$428.79USD
$8.25 Shipping
20832
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:3 Ratio, 1/4" NPT
1 In Stock
$304.04USD
$8.25 Shipping
20823
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:2 Ratio, 3/8" NPT
8 - 12 days
$304.04USD
$8.25 Shipping
20833
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:3 Ratio, 3/8" NPT
8 - 12 days
$304.04USD
$8.25 Shipping
20842
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 2:1 Ratio, 1/4" NPT
8 - 12 days
$304.04USD
$8.25 Shipping
20843
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 2:1 Ratio, 3/8" NPT
8 - 12 days
$304.04USD
$8.25 Shipping
20852
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 3:1 Ratio, 1/4" NPT
8 - 12 days
$304.04USD
$8.25 Shipping
20852Y
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 3:1 Ratio, 1/4" NPT, Negative Bias
8 - 12 days
$346.17USD
$8.25 Shipping
20812I
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 1/4" NPT, By-Pass Valve
8 - 12 days
$351.13USD
$8.25 Shipping
20813N
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 3/8" NPT, Non-Relieving
8 - 12 days
$352.78USD
$8.25 Shipping
208102
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:6 Ratio, 1/4" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
208103
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:6 Ratio, 3/8" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
20862
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:4 Ratio, 1/4" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
20872
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 4:1 Ratio, 1/4" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
20882
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:5 Ratio, 1/4" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
20883
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:5 Ratio, 3/8" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
20892
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 5:1 Ratio, 1/4" NPT
8 - 12 days
$390.78USD
$8.25 Shipping
20863
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:4 Ratio, 3/8" NPT
8 - 12 days
$409.79USD
$8.25 Shipping
20812J
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 1/4" NPT, Viton Elastomers
8 - 12 days
$423.83USD
$8.25 Shipping
20813E
FAIRCHILD Model 20 Pneumatic Precision High Capacity Volume Booster, 1:1 Ratio, 3/8" NPT, Tapped Exhaust
8 - 12 days
$428.79USD
$8.25 Shipping
