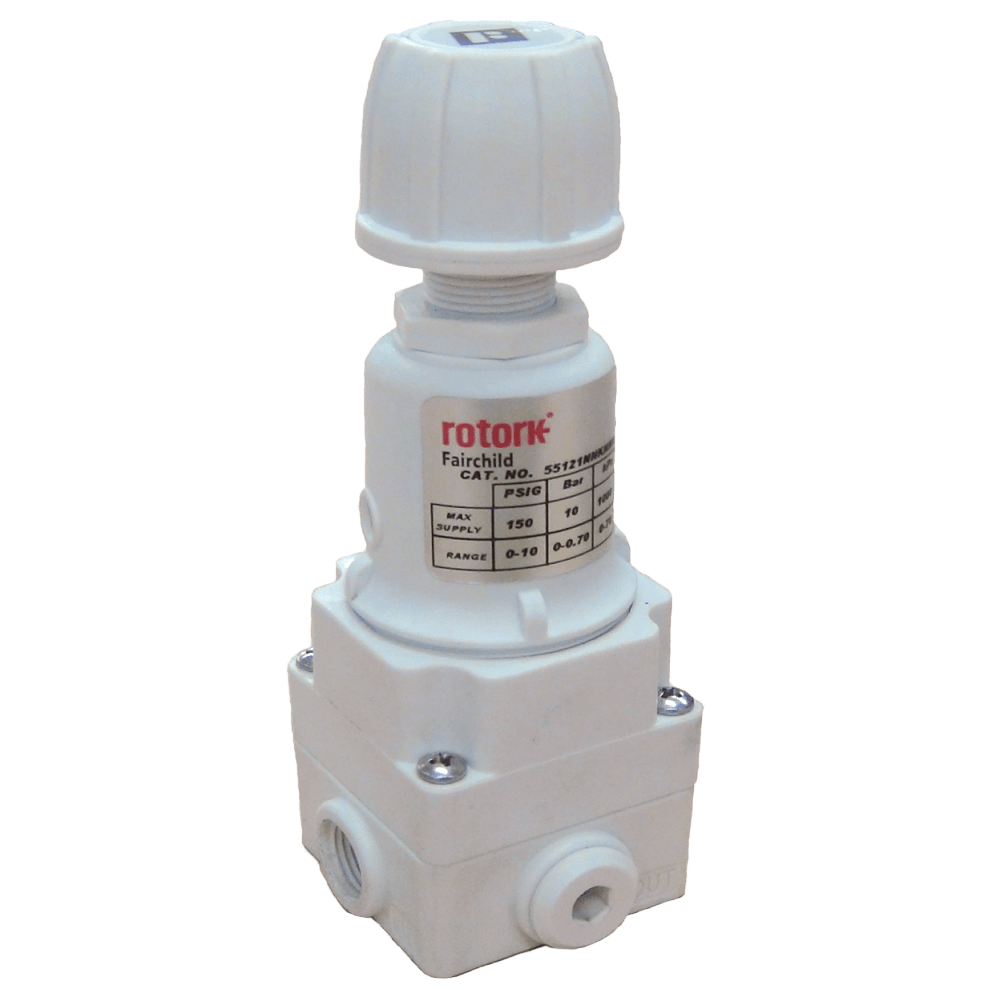

Model 55 Miniature Precision Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 55 is a compact precision polymer pressure regulator for high performance applications where space or weight may be limited or material compatibility concerns dictate use of a polymer construction regulator.

Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 55 pneumatic regulator features control sensitivity of 5" water column to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 50 pressure regulator will handle a 150 psi, 10 BAR maximum supply pressure and offers four (4) set point pressure ranges from 0-10 psi, 0-0.7 BAR, 0-70 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.
Features
  • Compact size
  • Lightweight unit
  • Polymer construction
  • Separate control chamber isolates the diaphragm from the main flow
  • Non-rising adjustment knob
The Rotork Fairchild Model 55 is a compact precision polymer pressure regulator for high performance applications where space or weight may be limited or material compatibility concerns dictate use of a polymer construction regulator.

Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 55 pneumatic regulator features control sensitivity of 5" water column to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 50 pressure regulator will handle a 150 psi, 10 BAR maximum supply pressure and offers four (4) set point pressure ranges from 0-10 psi, 0-0.7 BAR, 0-70 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa.
Features
  • Compact size
  • Lightweight unit
  • Polymer construction
  • Separate control chamber isolates the diaphragm from the main flow
  • Non-rising adjustment knob

Specifications

Pressure Range

  • bar: 0 to 0.69
  • bar: 0.03 to 2.07
  • bar: 0.07 to 4
  • bar: 0.138 to 06.89
  • kPa: 0 to 68.9
  • kPa: 13.79 to 689.5
  • kPa: 3.45 to 206.8
  • kPa: 6.89 to 413.68
  • psi: 0 to 10
  • psi: 0.5 to 30
  • psi: 2 to 100
  • psig: 1 to 60

Ambient Temperature Range

  • -40° to 65.5° C (-40° to 150° F)

NPT Connection

  • 1/8" NPT Female

Trim Material

  • Brass

Sensitivity

  • 1/4 inH₂O (0.64 cm)

Flow Capacity

  • 9 scfm

Exhaust Capacity - Relieving Units Only

  • 2 scfm

Enclosure, Body Material

  • Valox 508

Actuator Type

  • Knob Adjust
  • Tamper-Proof

Media

  • Compressed Air
  • Gas

Diaphragm Material

  • Polymer Reinforeced Nitrite

Elastomers

  • Nitrile

Vent

  • Straight

Maximum System Pressure

  • bar: 10.34
  • kPa: 1,034
  • psi: 150

Relief

  • Non-Relieving
  • Relieving

Supply Pressure Effect

  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure
