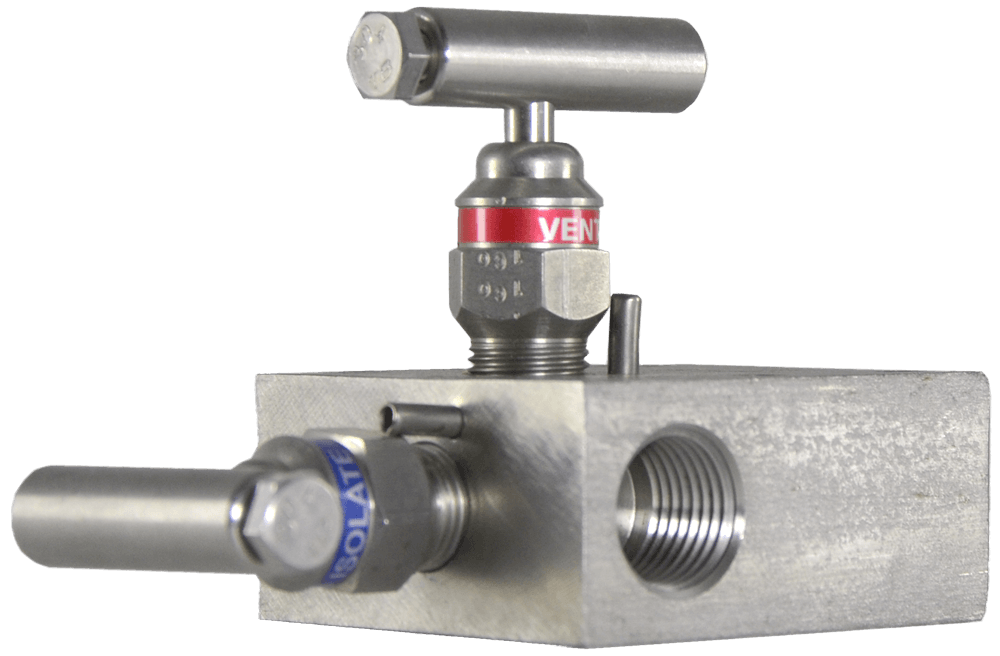

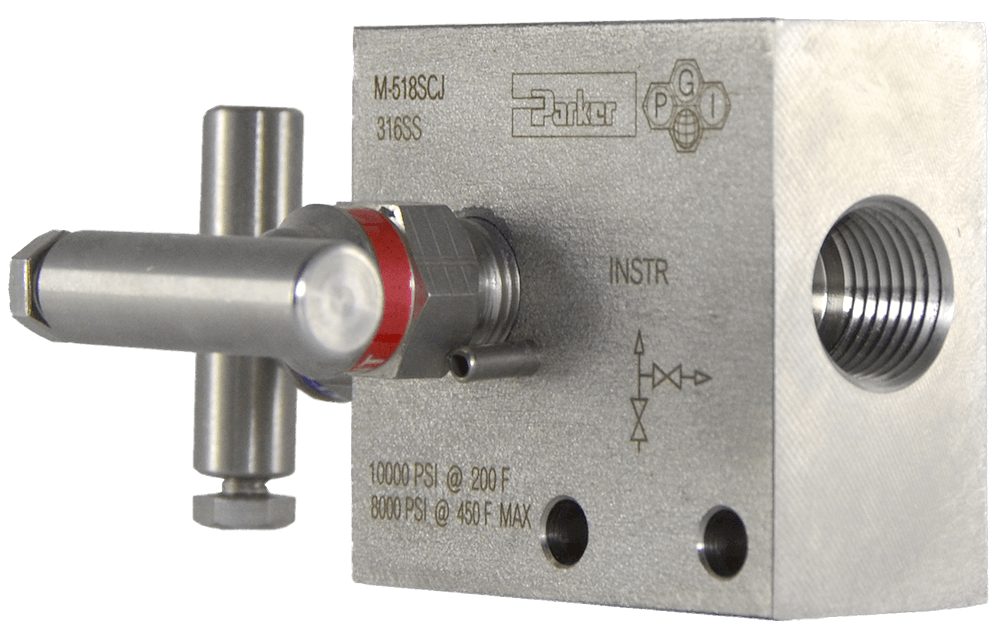

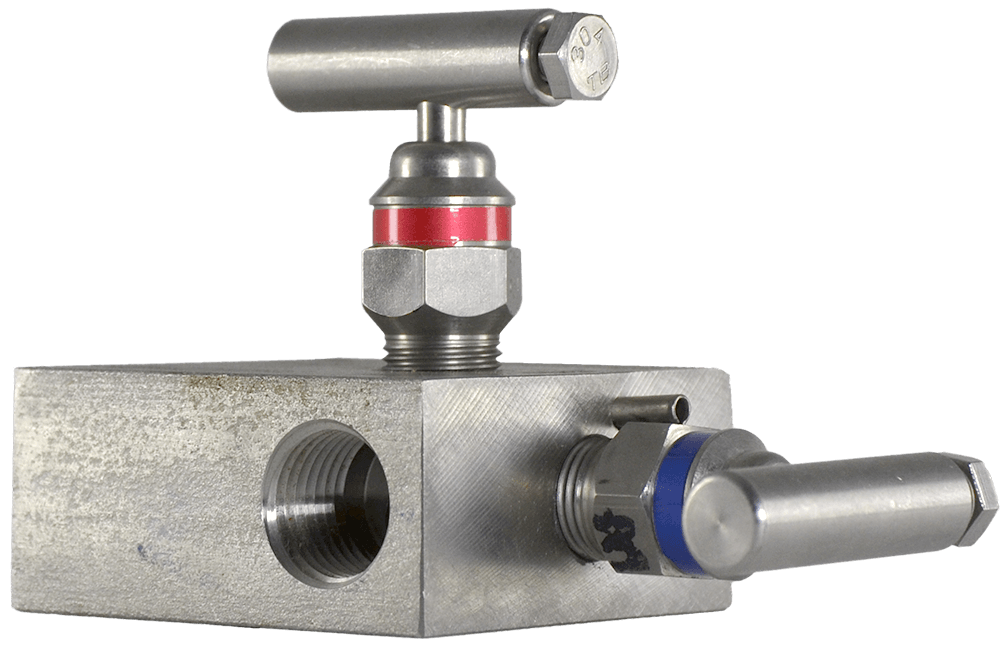

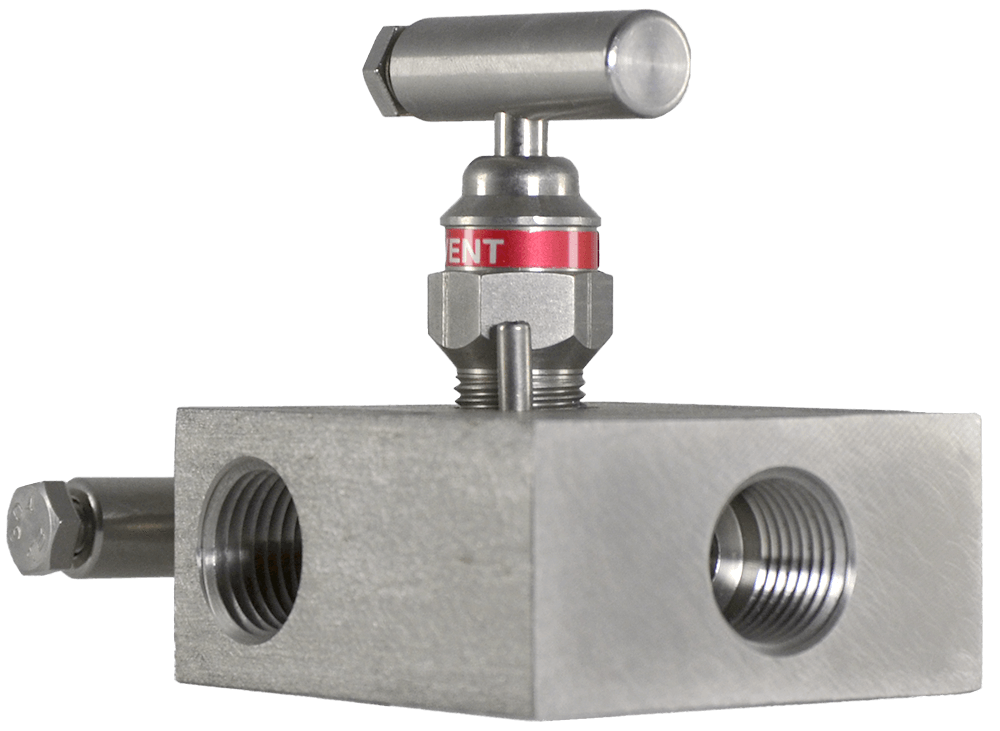

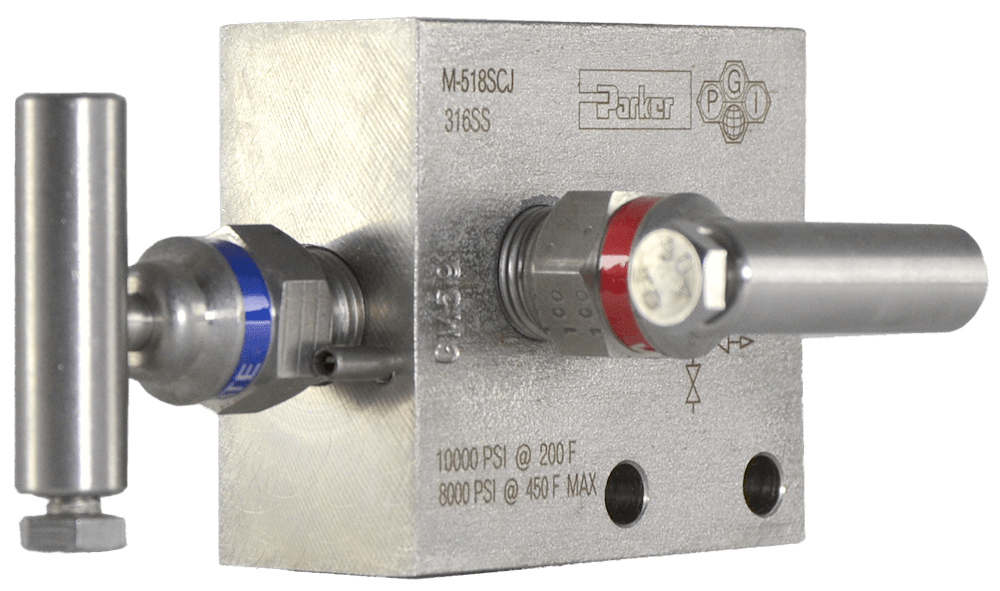

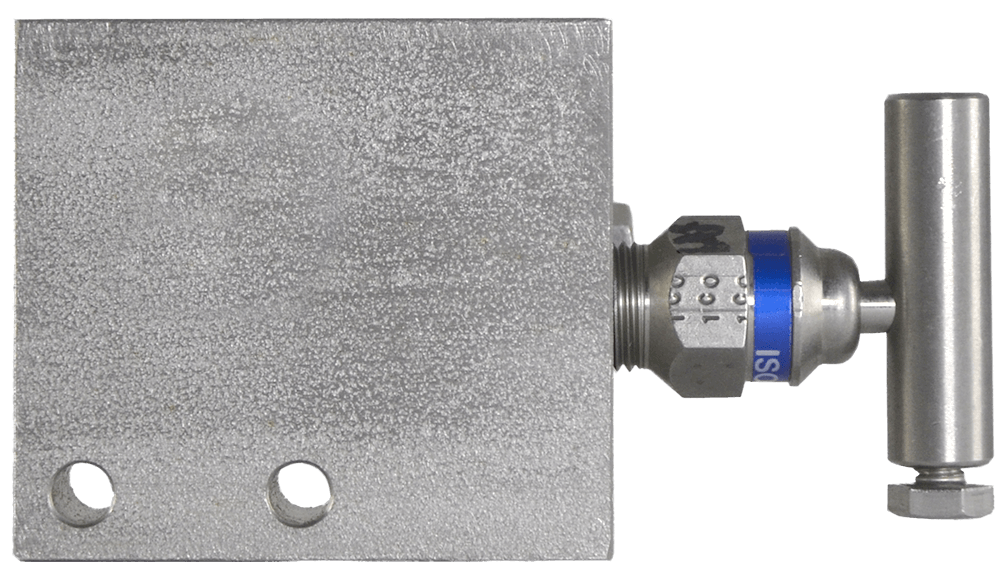

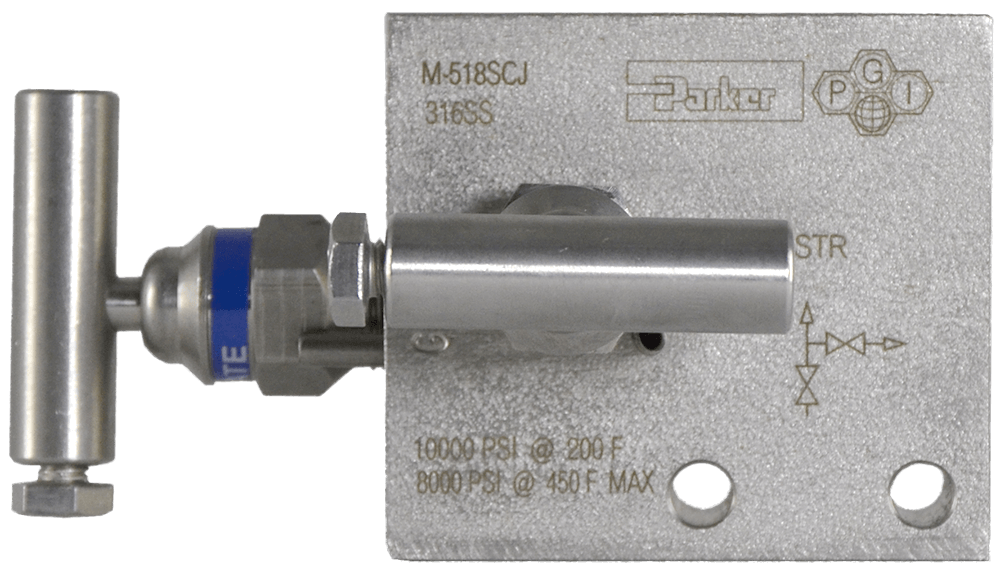

M-518 Two-Valve Manifold

Brand: PGI International
  • Design: Hard Seat Two-Valve Block & Bleed Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
show more

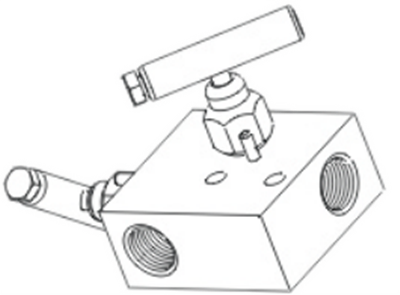

Images are representations only.
  • Design: Hard Seat Two-Valve Block & Bleed Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
M-518-SCJ
PGI 2-Valve Manifold, 1/2" NPT, SST
Out of Stock
$416.00USD
$9.99 Shipping

M-518

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material

Specifications

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE
  • NACE MR-0175, ISO 15156-36

Orifice Size

  • 0.187"

Packing Material

  • Teflon
  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Stem Material

  • ASTM A479-316 Stainless Steel
