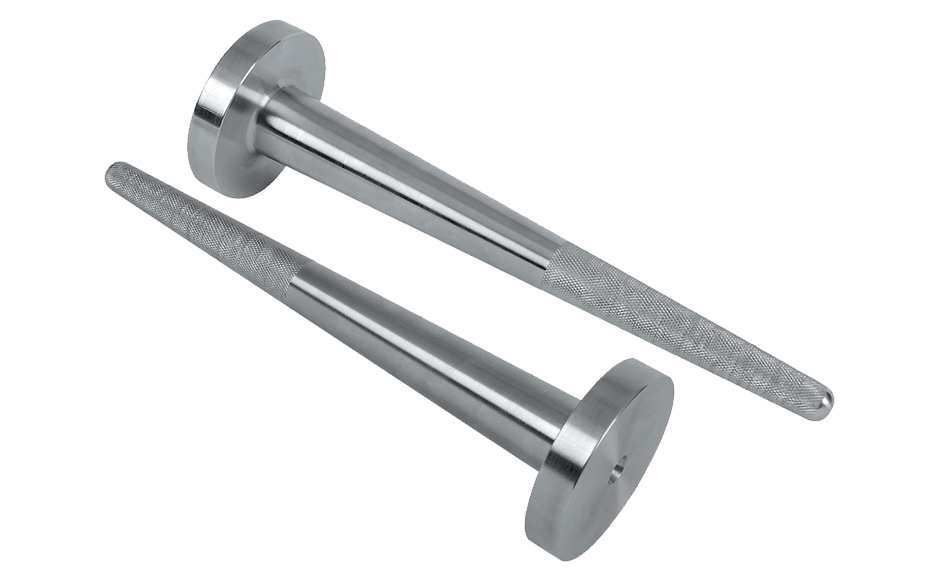

TW61 Vanstone Stepped Thermowell

Brand: Mac-Weld Machining Ltd.
Our Vanstone thermowells are made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's. Our Vanstone thermowells are also available in a wide variety of sizes and configurations. • Standard Threaded Thermowells available from stock • Custom software for Thermowell design calculations • CRN approved thermowells
show more
Images are representations only.
Our Vanstone thermowells are made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's. Our Vanstone thermowells are also available in a wide variety of sizes and configurations. • Standard Threaded Thermowells available from stock • Custom software for Thermowell design calculations • CRN approved thermowells

TW61

Bore Size

Flange Size

Stem Material

Flange Material

Stem Length

Plug and Chain Material

Thread

Weld Options

Surface Finish

Sheath Material

Coating

Tests & Certificates

Dye Penetration Testing

Material Testing

Options

Power Supply

Specifications

Approvals & Certifications

  • Dye Penetration Testing
  • Hydrostatic Internal Testing
  • Material Test Report
  • Radiograph

Bore Size

  • 0.260" (6.6 mm)
  • 0.385" (9.78 mm)

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#

Flange Type

  • VanStone Stepped
  • VanStone Straight
  • VanStone Tapered

Insertion 'U' Length

  • 10" (25.4 cm)
  • 13" (33 cm)
  • 16" (40.6 cm)
  • 22" (56 cm)
  • 34" (86 cm)
  • 4" (10.1 cm)
  • 40" (101.6 cm)
  • 5.5" (14 cm)
  • 7" (17.8 cm)

Materials of Construction

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 347 Stainless Steel
  • Alloy 20 or Incoloy®
  • Aluminum 6061
  • Brass
  • Carbon Steel
  • Carbon Steel A105
  • Chrome-M Moly F-22
  • Chrome-Moly F-11
  • Hastelloy® B
  • Hastelloy® C-276
  • Incoloy® 800
  • Inconel® 600
  • Kynar
  • Kynar Coating
  • Monel® 400
  • Naval Brass
  • Nickel 200
  • PVC
  • Special
  • Stellite over Spray
  • Teflon
  • Teflon Coating
  • Titanium

NACE & NIST

  • NACE MR-1090

Plug Material

  • 304 Stainless Steel
  • Brass

Special Cleaning & Packaging

  • Cleaning O2 or Chlorine

Stem Length

  • 12" (30.5 cm)
  • 15" (38.1 cm)
  • 18" (45.7 cm)
  • 2.5" (6.35 cm)
  • 24" (61 cm)
  • 36" (91.4 cm)
  • 4" (10.2 cm)
  • 42" (106.7 cm)
  • 6" (15.2 cm)
  • 7.5" (19.1 cm)
  • 9" (22.9 cm)
