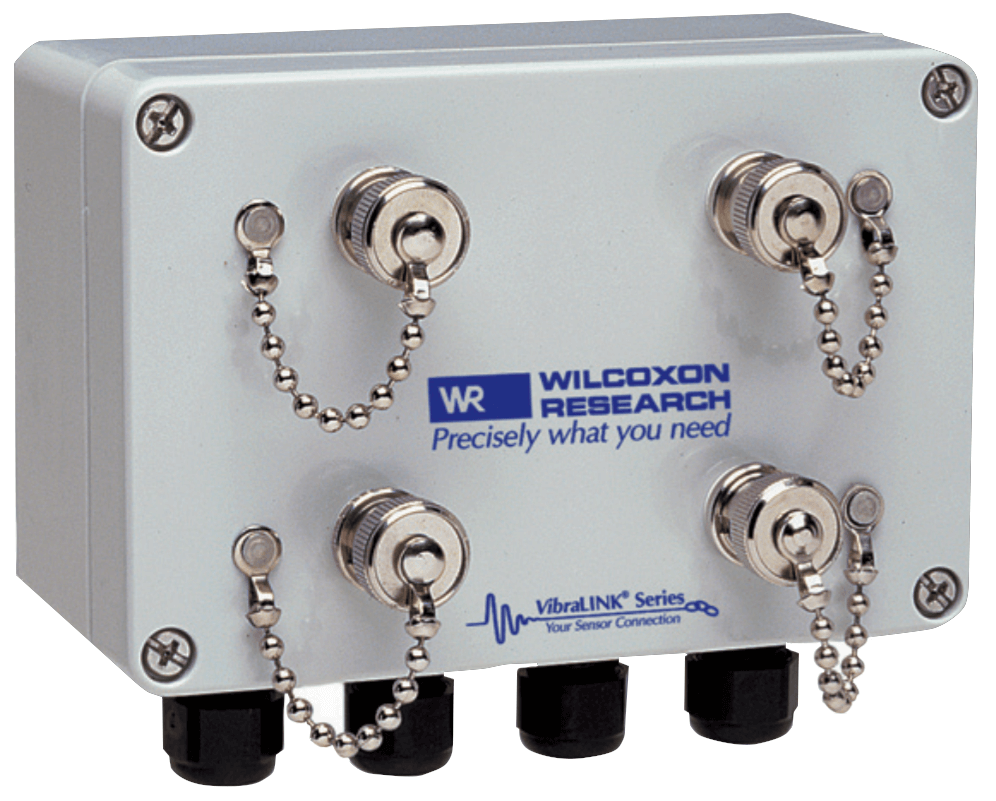

CB Series Cable Termination Junction Box

Brand: Wilcoxon Sensing Technologies
Wilcoxon’s cable termination junction boxes are a low cost monitoring solution for 1-4 channel applications. The CB series are NEMA 4X rated for use in harsh environments and come with cap covers to protect against dust and water intrusion. Predrilled inputs allow fast cable installation.

Wilcoxon also offers the CBT series for compatibility with triaxial sensors. The CB series provides a central collection point for standard IEPE and triaxial sensors, reducing lengthy cable runs. Portable data collectors including Wilcoxon’s MachineryMate 800 meter can easily interface with the CB series. Machinery health can be monitored from a safe location, minimizing risks of walkaround collection and reducing cable costs.
Features
  • Protective cap covers
  • Low cost
  • Ideal for indoor/ outdoor applications
  • Ferrite bead for RF rejection
  • Cord grip inputs for quick and secure cable entry
  • Models available for triaxial sensors
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
Wilcoxon’s cable termination junction boxes are a low cost monitoring solution for 1-4 channel applications. The CB series are NEMA 4X rated for use in harsh environments and come with cap covers to protect against dust and water intrusion. Predrilled inputs allow fast cable installation.

Wilcoxon also offers the CBT series for compatibility with triaxial sensors. The CB series provides a central collection point for standard IEPE and triaxial sensors, reducing lengthy cable runs. Portable data collectors including Wilcoxon’s MachineryMate 800 meter can easily interface with the CB series. Machinery health can be monitored from a safe location, minimizing risks of walkaround collection and reducing cable costs.
Features
  • Protective cap covers
  • Low cost
  • Ideal for indoor/ outdoor applications
  • Ferrite bead for RF rejection
  • Cord grip inputs for quick and secure cable entry
  • Models available for triaxial sensors
  • Manufactured in an approved ISO 9001 facility

CB Series

Model

Specifications

Applications

  • Ideal for Indoor & Outdoor Applications

Approvals & Certifications

  • CE

Approvals & Certifications

  • ISO 9001

Channels

  • CBT Triaxial Sensors: 2
  • Single Channel Sensors: 2 or 4

Electrical Connectors

  • CB Single Channel Sensors: Terminal Block, 3 Positions Per Channel. CBT Triaxial Sensors: Terminal Block, 5 Positions Per Channel
  • CBT Triaxial Sensors: M12 - 5-Pin Connector Per Channel, Electrically Isolated for Output, M12 - 5 Socket Connector Per Sensor, Electrically Isolated for Input
  • Inputs: Cable Grip
  • Output Connectors (CB Single Channel Sensors): BNC Connector (1 Jack Per Channel, Electrically Isolated)

Enclosure, Body Material

  • ABS

Environmental Protection

  • IP66
  • NEMA 4X

Temperature Range

  • -40° to 82° C (-40° to 180° F)
