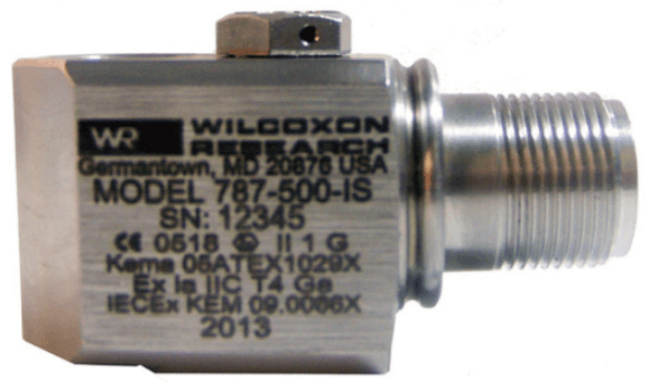

Model 787-500-IS Low-Frequency Intrinsically Safe Accelerometer

Brand: Wilcoxon Sensing Technologies
Wilcoxon’s side-exit broadband sensor is certified for usage hazardous areas. The high-sensitivity accelerometer offers an interior sensing element capable of producing 500 mV/g, outputting clear signals at low vibration levels. The low-end frequency response makes it ideal for slow-speed applications such as wind turbine generators and cooling towers. A high topend frequency response offers clear signals for early bearing fault detection, gearbox wear, and other high-speed applications. The sensor is supplied with a 2 pin MIL-5015 connector.

The 787-500-IS sensor is classifed for usage in Class I Division 1/Zone 0/1 locations where ignitable concentrations of flammable gases, vapors or liquids are present continuously under normal operating conditions.
Features
  • High sensitivity
  • Clear signals at low vibration levels
  • Extended low frequency response
  • Class I, Div 1/Zone 0/1 certified
  • Mounts in any orientation
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility
show more
Images are representations only.
Wilcoxon’s side-exit broadband sensor is certified for usage hazardous areas. The high-sensitivity accelerometer offers an interior sensing element capable of producing 500 mV/g, outputting clear signals at low vibration levels. The low-end frequency response makes it ideal for slow-speed applications such as wind turbine generators and cooling towers. A high topend frequency response offers clear signals for early bearing fault detection, gearbox wear, and other high-speed applications. The sensor is supplied with a 2 pin MIL-5015 connector.

The 787-500-IS sensor is classifed for usage in Class I Division 1/Zone 0/1 locations where ignitable concentrations of flammable gases, vapors or liquids are present continuously under normal operating conditions.
Features
  • High sensitivity
  • Clear signals at low vibration levels
  • Extended low frequency response
  • Class I, Div 1/Zone 0/1 certified
  • Mounts in any orientation
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility

Specifications

Approvals & Certifications

  • ATEX Ex II 1 G Ex Ia IIC T4 Ga -50° C ≤ Ta ≤ 120° C
  • CE
  • CSA (C,US) Class I, Division 1, Grade A, B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, Class I, Zone 0, Ex Ia IIC T4, Class I, Zone 0, AEx Ia IIC T4 Tamb: -50° to 120° C
  • IEC, IECEx

Approvals & Certifications

  • ISO 9001

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J10 / J9T2A, < 100 feet)
  • Mating Connector: R6 Typical
  • Output Connector: 2-Pin, MIL-C-5015 Style

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Intrinsically Safe

Frequency

  • Frequency Response (± 10%): 0.5 to 5,000 Hz
  • Frequency Response (± 3 dB): 0.2 to 10,000 Hz
  • Resonance Frequency: 22 kHz

Mounting

  • 1/4-28 Captive Hex Head Screw, 0.046" Diameter Safety Wire Hole

Mounting Position

  • Any Orientation

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 250 µg
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 2.5 μg√Hz
  • Electrical Noise, Equivalent G (Spectral: 100 to 1,000 Hz): 1.5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range, Vdc > 22 V: 10 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity: Maximum 5% of axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 12 Vdc
