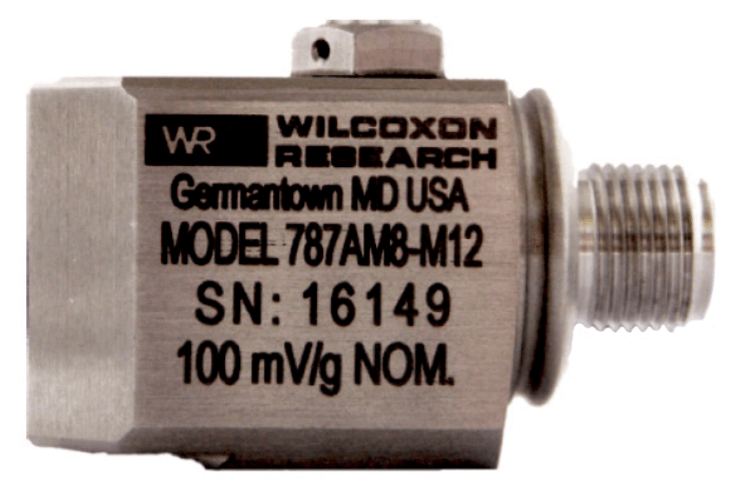

Model 787AM8-M12 Low Profile General Purpose Accelerometer

Brand: Wilcoxon Sensing Technologies
Side exit, general-purpose, case isolated, MIL-C-5015 connector, 100 mV/g.
Features
  • Comes with industry popular M12 connector
  • Rugged design
  • Corrosion resistant
  • Hermetically sealed
  • Case isolated
  • ESD protection
  • Reverse wiring protection
show more
Images are representations only.
Side exit, general-purpose, case isolated, MIL-C-5015 connector, 100 mV/g.
Features
  • Comes with industry popular M12 connector
  • Rugged design
  • Corrosion resistant
  • Hermetically sealed
  • Case isolated
  • ESD protection
  • Reverse wiring protection

Specifications

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J10 / J9T2A)
  • Mating Connector: M12 Style
  • Output Connector: 4-Pin, M12 Style

Element

  • Sensing Element Design: PZT, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof

Frequency

  • Frequency Response (± 10%): 1 to 5,000 Hz
  • Frequency Response (± 3 dB): 0.7 to 10,000 Hz
  • Resonance Frequency: 22 kHz

Mounting

  • M8 Thread Captive Screw

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 100 to 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Transverse sensitivity: Maximum 5% of axial
  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 12 Vdc
