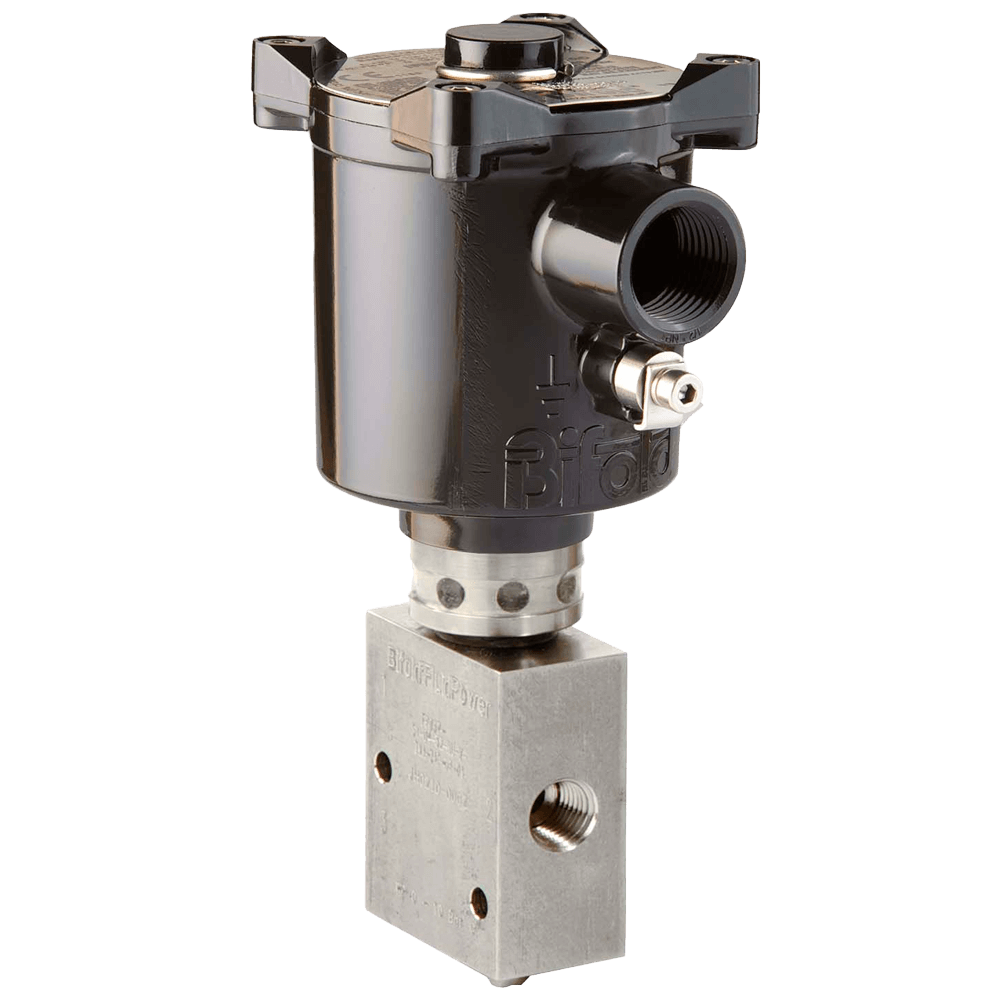

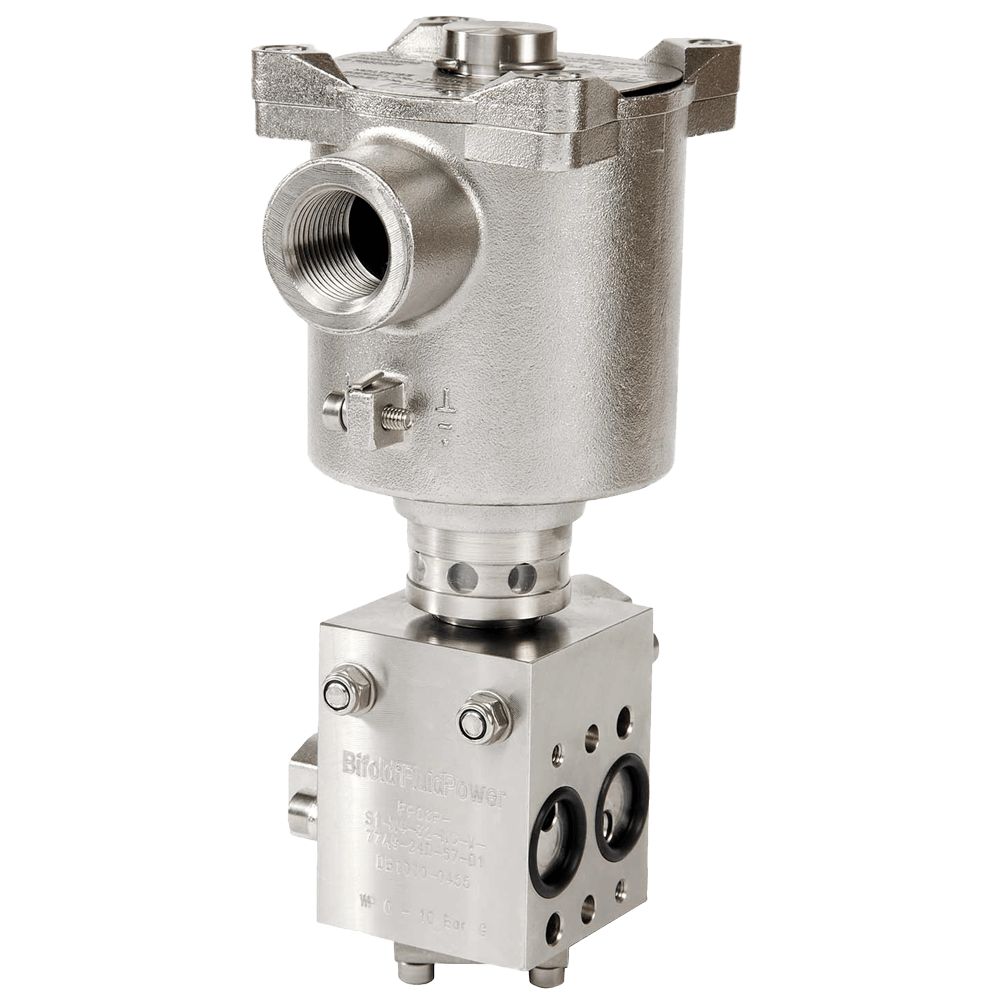

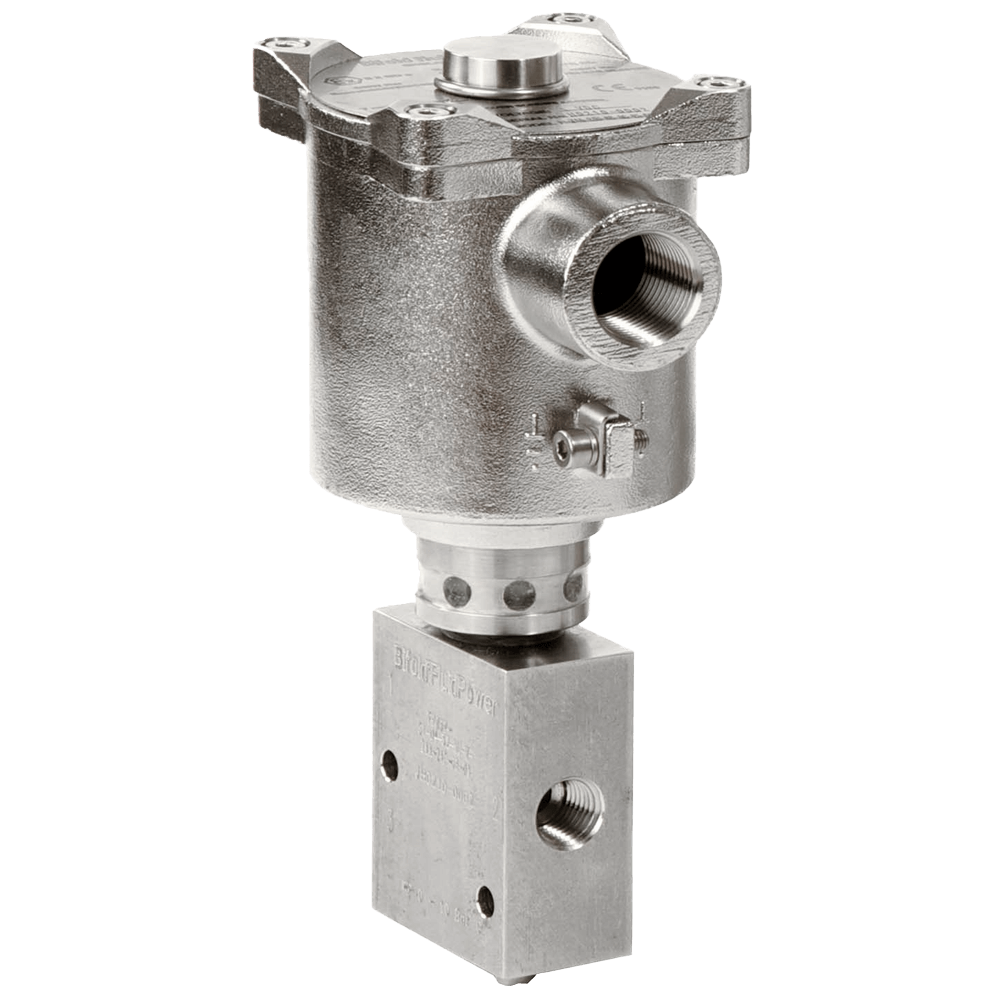

FP06P 3/2 Standard Direct-Acting Solenoid Valve

Brand: Bifold Group
Features and Benifits:
  • Worldwide approvals
  • Solenoid operator is free to rotate 360° allowing for an easy cable layout and ease of connection wiring. Solenoid operator internals rotate with the enclosure and prevent cables being pulled out of terminal block
  • Widest range of override options (Auto reset, spring return manual override, stayput manual override, manual reset, tamperproof manual latch, latch energised)
  • Worldwide technical and field support
  • Standard solenoid valve can be mounted in any orientation to simplify installation due to all the components having enhanced rotational capabilities
show more
Images are representations only.
Features and Benifits:
  • Worldwide approvals
  • Solenoid operator is free to rotate 360° allowing for an easy cable layout and ease of connection wiring. Solenoid operator internals rotate with the enclosure and prevent cables being pulled out of terminal block
  • Widest range of override options (Auto reset, spring return manual override, stayput manual override, manual reset, tamperproof manual latch, latch energised)
  • Worldwide technical and field support
  • Standard solenoid valve can be mounted in any orientation to simplify installation due to all the components having enhanced rotational capabilities

FP06P 3/2 Standard

Model

Operating Pressure

Connection

Valve Configuration 1

Valve Configuration 2

O-Ring Material

Solenoid

Solenoid Approval

Voltage

Override

  • view details

Power

Power

Cable Entry

Port

Specifications

Brand

Ambient Temperature Range

  • -25° to 90° C (-13° to 194° F)

Approvals & Certifications

  • ATEX Ex II 1 G Ex Ia, IIC T4/T6 Ga, Ex II 2 GDc, Ex Emb IIC T4 to T3 Gb, Ex II 2 GD, Ex D IIC T4/T5/T6 & Ex II 1 G, Ex Ia IIC T6 Ga
  • CSA
  • GOST
  • INMETRO
  • KC Approval KTL
  • NEPSI
  • SIL 3

BSP Connection

  • 1/4" BSPP Female

Cable Entry

  • 1/2" NPT
  • M20 x 1.5

Class

  • Class H - Solenoid Insulation

Configuration

  • 3-Way, 2-Position

Consumption

  • 3 to 6.8 W - Power Consumption

Duty Cycle

  • 100% Duty Cycle

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure, Body Material

  • 316L Stainless Steel Solenoid
  • Aluminum

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Flow Rate

  • 0.35 to 1 Cv

Materials of Construction

  • Fasteners: Metric A4 18/10 Grade Stainless Steel equivalent to 316L Stainless Steel

Media

  • Filtered Lubricated or Unlubricated Air
  • Inert Gas
  • Mineral Oil
  • Sour Natural Gas
  • Sweet Natural Gas
  • Water
  • Water Glycol Mixtures

Mounting Position

  • Any Orientation

NPT Connection

  • 1/4" NPT Female

O-Ring Material

  • Fluorosilicone
  • Nitrile
  • Viton

Override

  • Auto Reset
  • Manual Override
  • Manual Reset

Power

  • 1.8 W - Low Power

Process Temperature

  • -20° to 90° C (-4° to 194° F)

Resistance

  • 135 ohms

Response Time

  • Drop Out < 70 milliseconds
  • Pull in < 100 millisecond

Rotation

  • Solenoid Free to Rotate through 360°

Seat/Seal Material

  • Seal: Viton

Spring Material

  • 302S26 Stainless Steel
  • 316S42 Stainless Steel

Supply Pressure

  • psi: 0 to 508 (kPa: 0 to 3,503, bar: 0 to 35)

Supply Voltage

  • 110-240 Vac, 50 or 60 Hz
  • 12-110 Vdc

Temperature Range

  • -20° C (-4° F) to Upper Limit of Solenoid Classification
  • Arctic Service Option to -60° C (-76° F)
